ABB ACS-CP-U Used Working ACS850 Series Drive Keypad

Product Overview

The ABB ACS-CP-U is a versatile Assistant Control Panel (Keypad) specifically designed for the ACS850 and ACSM1 series of industrial drives. Known for its user-friendly interface, it features a high-resolution alphanumeric display that supports multiple languages and provides clear, full-text parameter descriptions (no more guessing cryptic codes!). This Used Working unit is an essential tool for commissioning, troubleshooting, and monitoring your ABB drives, offering intuitive navigation and "Help" functions that simplify complex drive setups.

Key Features

• Full-Text Interface: Displays parameters, fault messages, and status data in plain language, significantly reducing the need for technical manuals during onsite diagnostics.
• Multilingual Support: Pre-loaded with multiple language packs, making it suitable for global industrial environments.
• Smart Navigation: Features soft-keys and a logical menu structure that mimics mobile phone navigation for ease of use.
• Integrated Help Key: Provides context-sensitive information about parameters and fault codes at the press of a button.
• Real-Time Monitoring: Allows for the simultaneous display of up to three drive signals (e.g., Output Frequency, Current, and Torque) in a clear, easy-to-read format.
• Parameter Backup: Features internal memory capable of storing drive parameter sets, allowing for quick "copy-paste" configurations between multiple drives.
• Hot-Pluggable: Can be connected or removed from the drive while it is powered up, allowing a single keypad to service an entire rack of drives.

Item Condition (Used - Working)

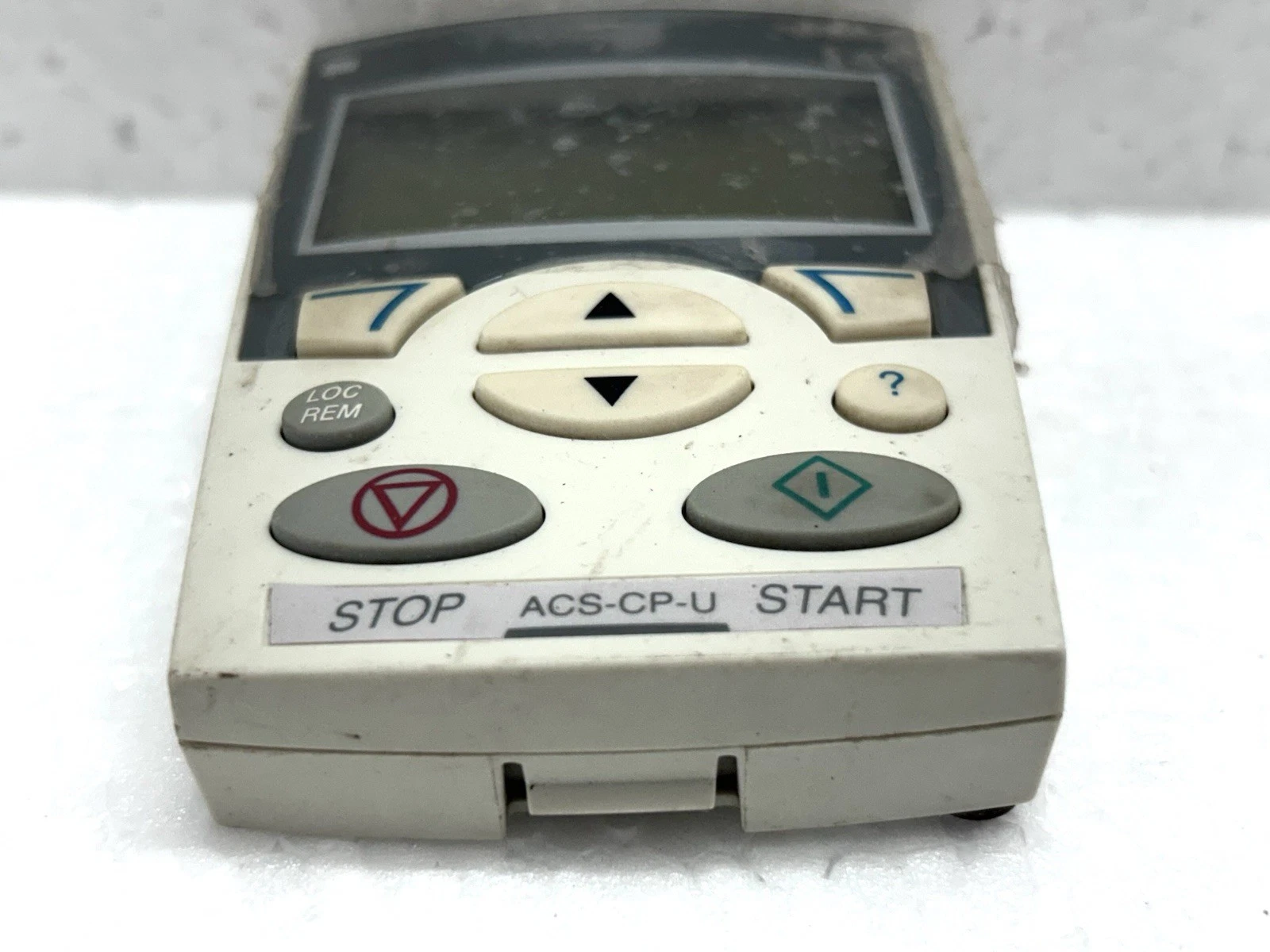

• Functional Status: Used - Working. This keypad has been fully tested on a live ACS850 drive. The LCD backlight is bright, the contrast is sharp, and all membrane buttons (Start, Stop, Loc/Rem, and Soft-keys) are fully responsive.
• Physical State: Shows typical signs of industrial use, such as minor surface scuffs on the plastic bezel. The screen surface is clear and free of deep scratches that would hinder visibility.

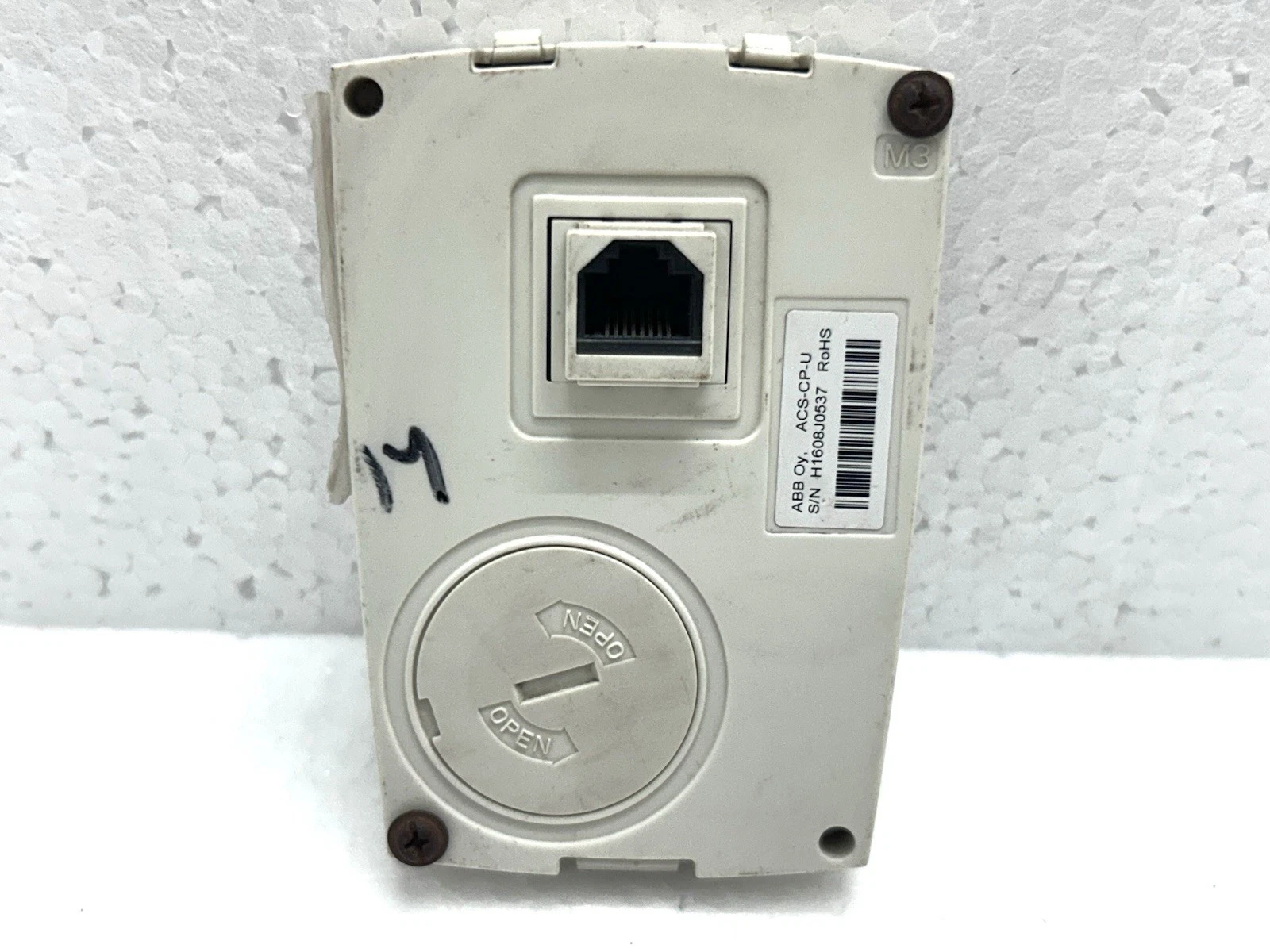

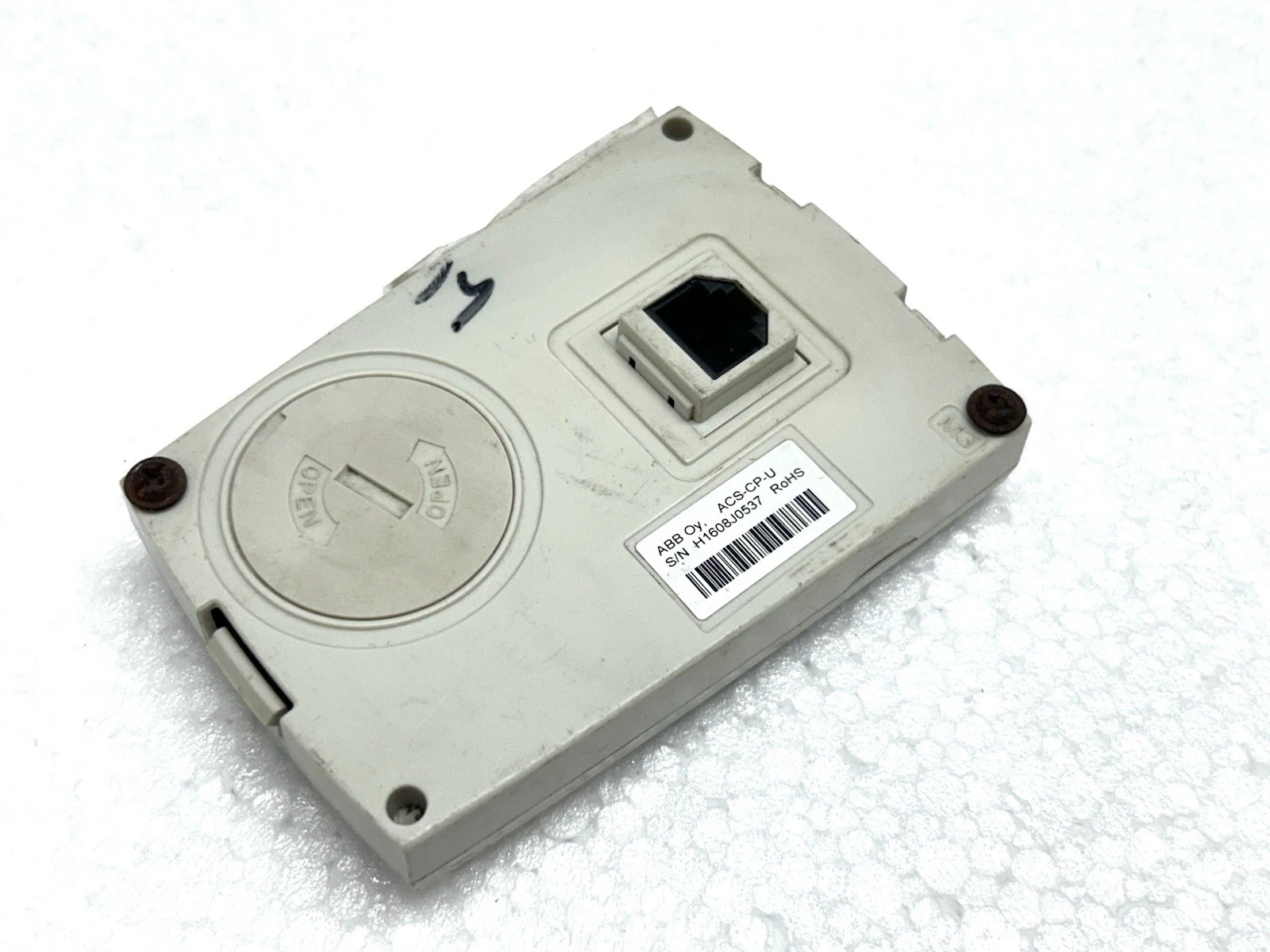

• Connector Integrity: The specialized rear multi-pin connector is clean and provides a secure, reliable data link to the drive’s control unit.

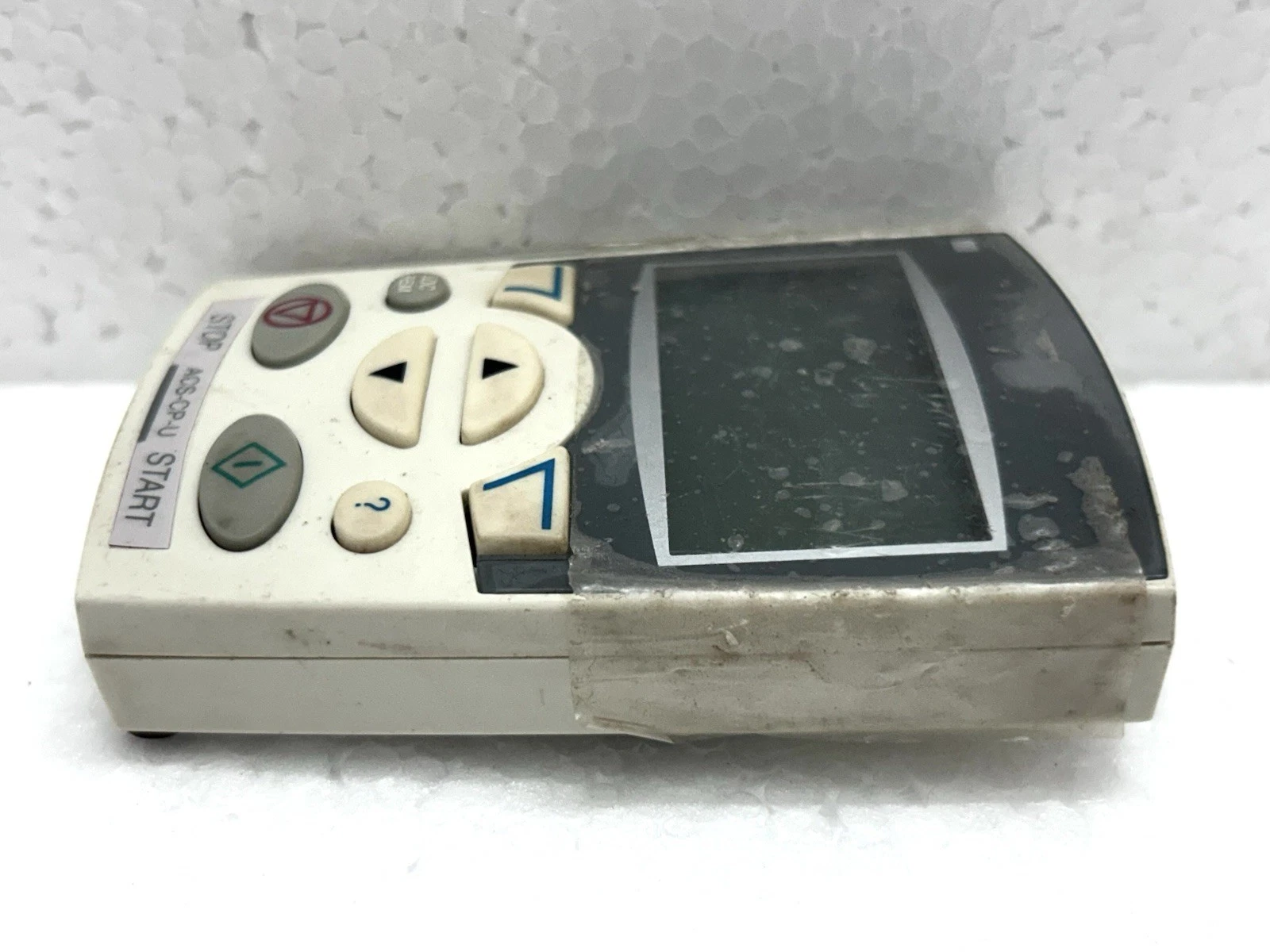

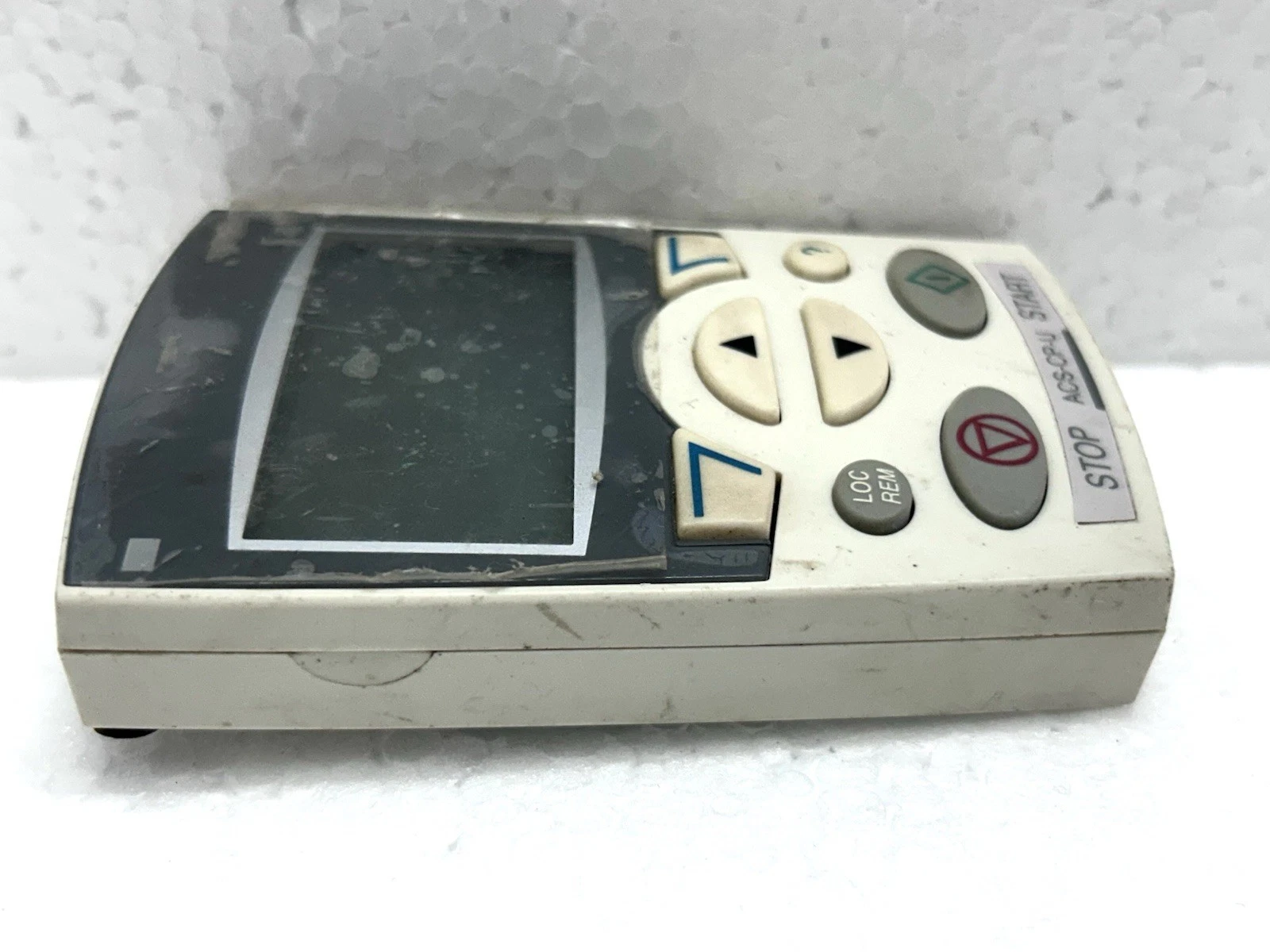

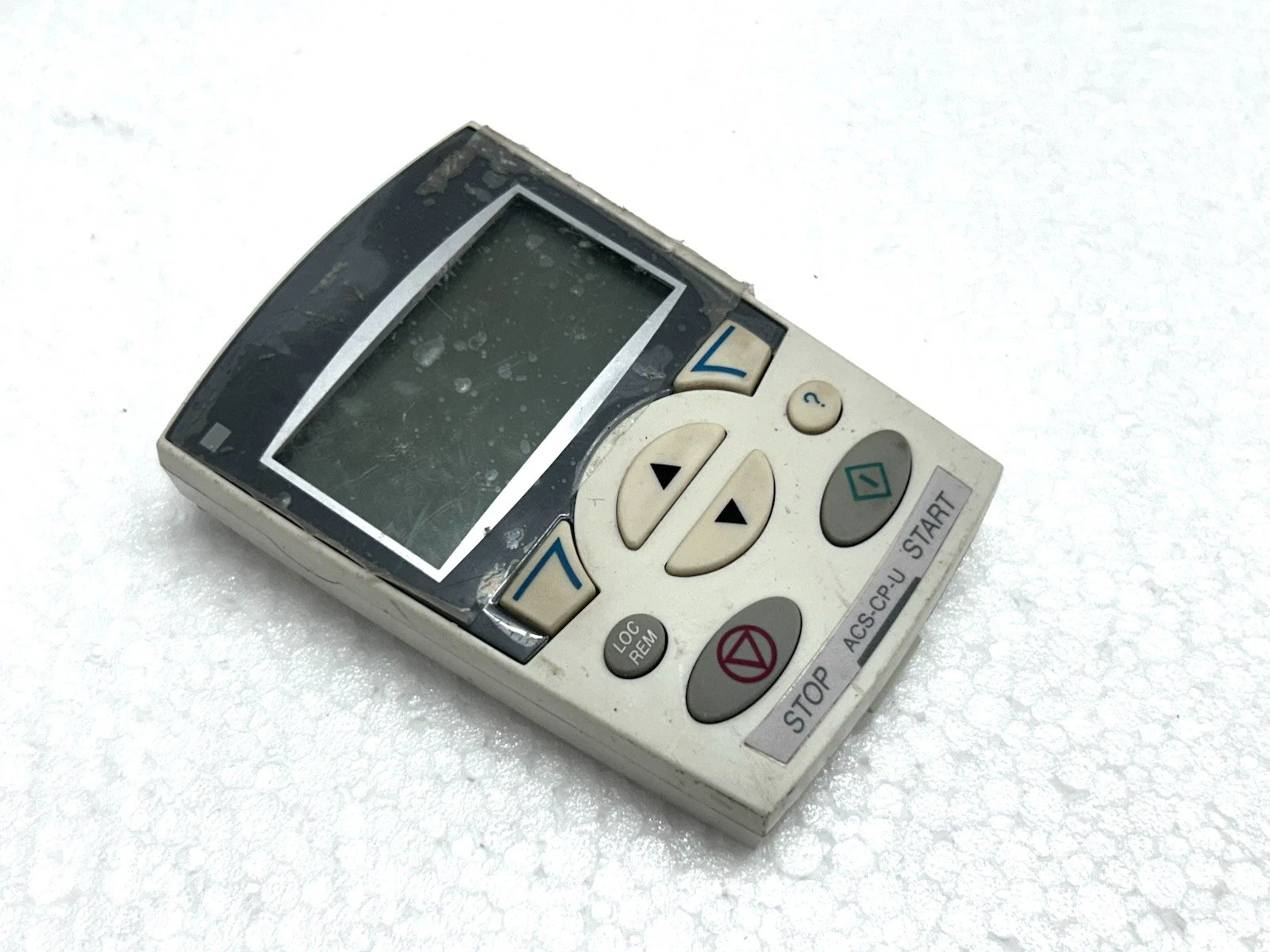

• Visual Reference: Please refer to the high-resolution images to verify the specific cosmetic condition; the unit pictured is the exact ACS-CP-U keypad you will receive.

Package Includes

1. 1 x ABB ACS-CP-U Assistant Control Panel (Used)
2. Note: Does not include the panel mounting platform (door mounting kit) or the RJ45 cable for remote mounting.
