Allen-Bradley 1762-IF2OF2 Used Working MicroLogix Expansion Analog I/O

Product Overview

The Allen-Bradley 1762-IF2OF2 is a high-performance analog expansion module designed for the MicroLogix 1100, 1200, and 1500 controller families. This versatile module provides a compact solution for interfacing with analog field devices, featuring 2 differential analog inputs and 2 analog outputs on a single card. It supports both voltage and current signals, making it ideal for monitoring sensors (like pressure or temperature transmitters) and controlling actuators (like VFD speed references or proportional valves). This Used Working unit is a cost-effective way to add analog capabilities to your existing MicroLogix system without upgrading the entire CPU.

Key Features

• Combined I/O Functionality: Consolidates 2 inputs and 2 outputs into one module, saving valuable DIN rail space and reducing system cost.
• Flexible Signal Ranges: Supports standard industrial signals including -10 to +10V DC and 4 to 20mA, configurable via software.
• High Resolution: Provides 12-bit (unipolar) or 11-bit plus sign (bipolar) resolution for precise control and data acquisition.
• Differential Inputs: Utilizes differential inputs to provide superior noise immunity in electrically noisy industrial environments.
• Easy Integration: Seamlessly connects to the right side of a MicroLogix controller via the integrated ribbon cable and bus connector.
• Status Indicators: Includes a module status LED to provide immediate visual feedback for power and diagnostic health.

Item Condition (Used - Working)

• Functional Status: Used - Working. This module has been salvaged from a decommissioned control panel. It has been inspected for physical integrity and the bus connector pins are straight and clean.
• Physical State: Shows minor cosmetic marks from previous installation, but the plastic housing and terminal blocks are in solid condition.
• Electrical Integrity: The internal ribbon cable used for bus communication is flexible and the connector latches securely.

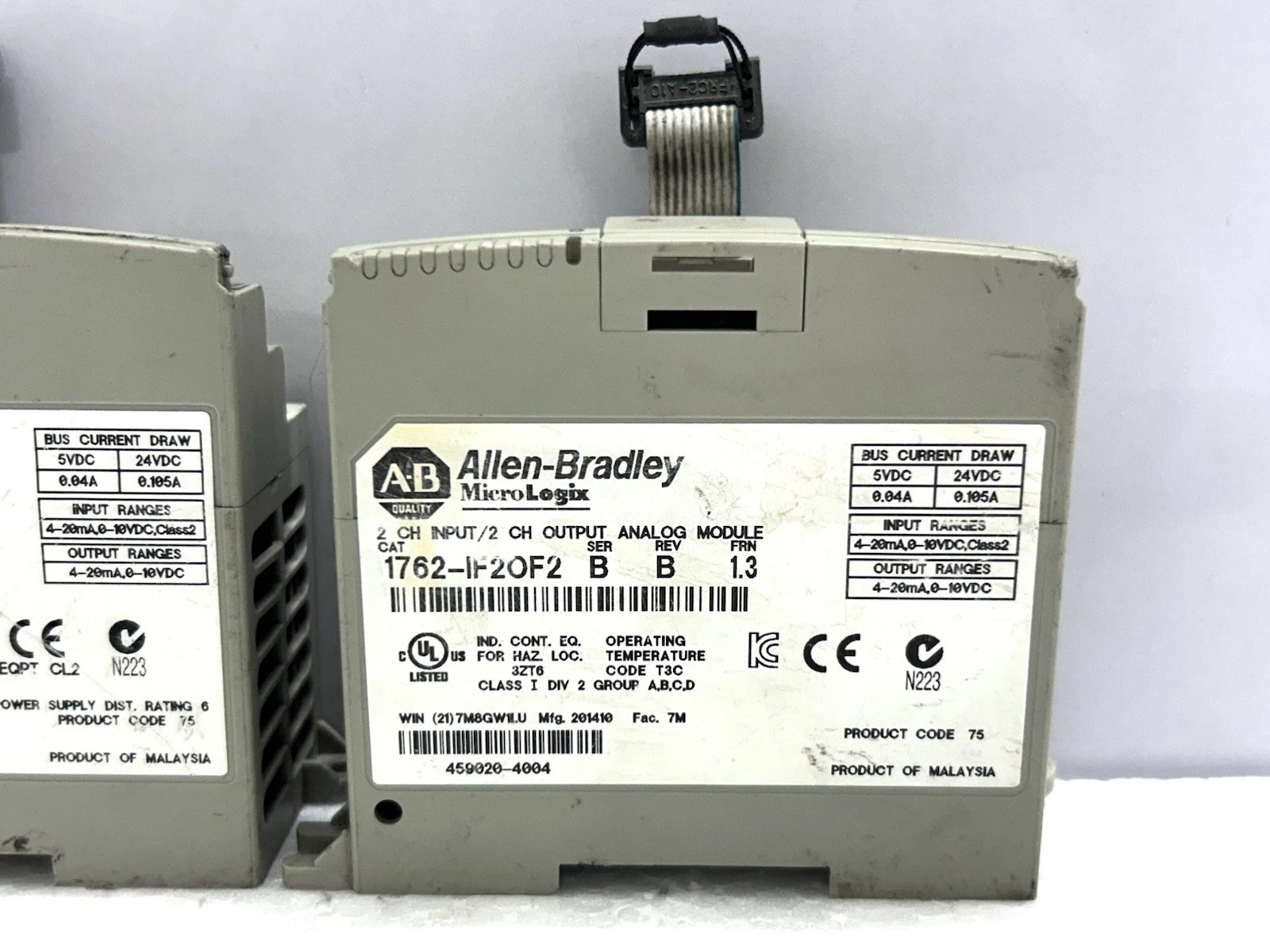

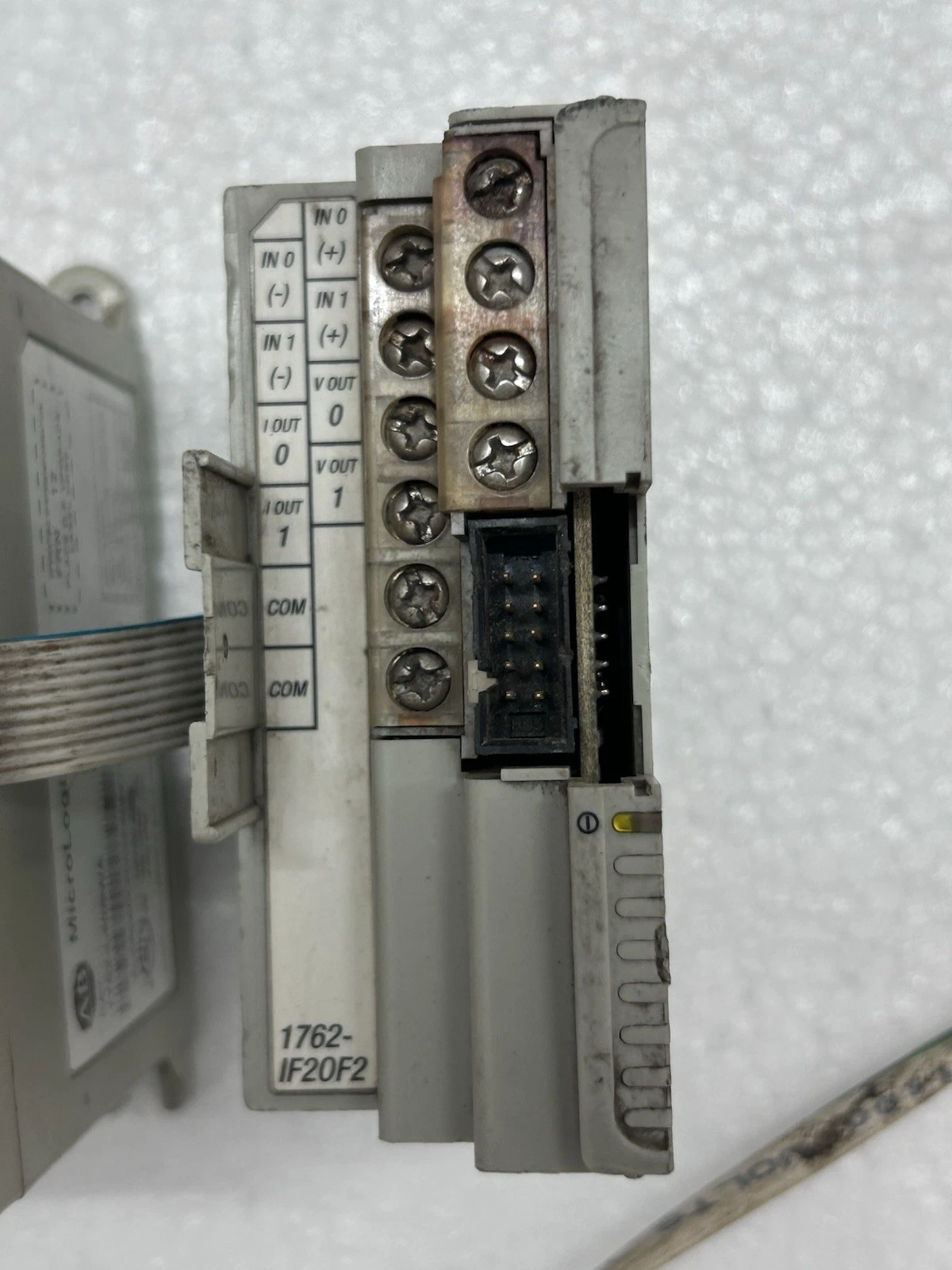

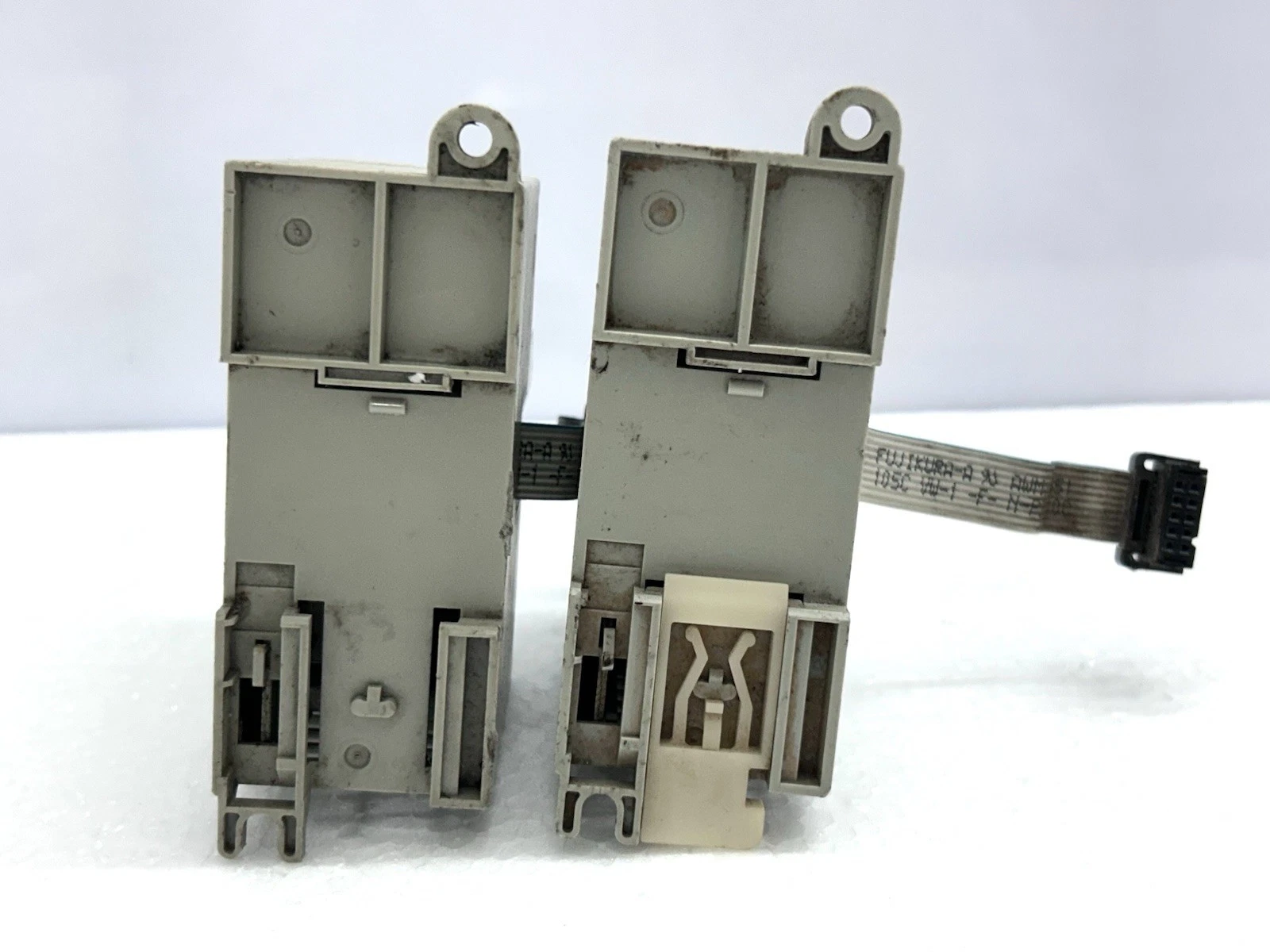

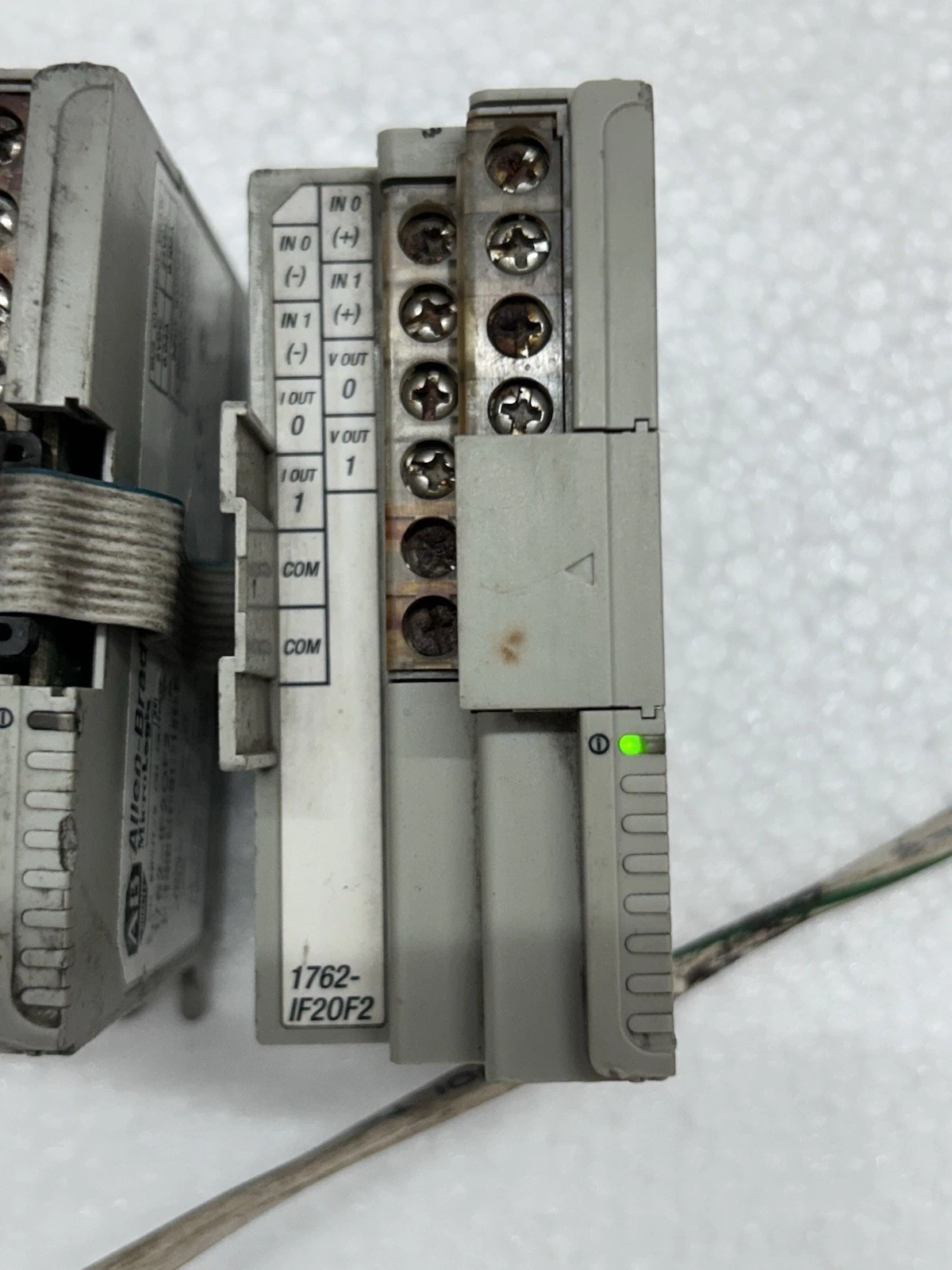

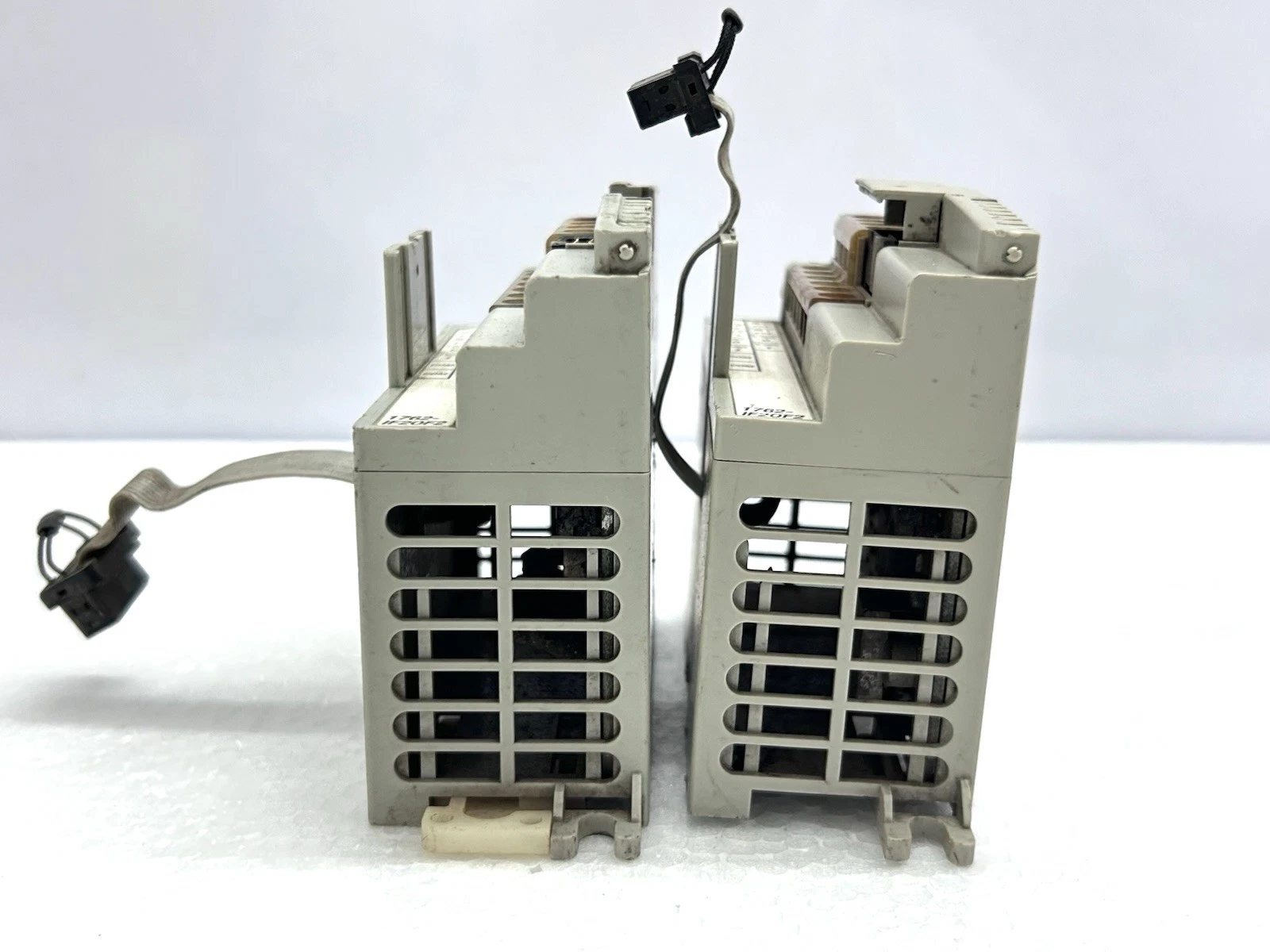

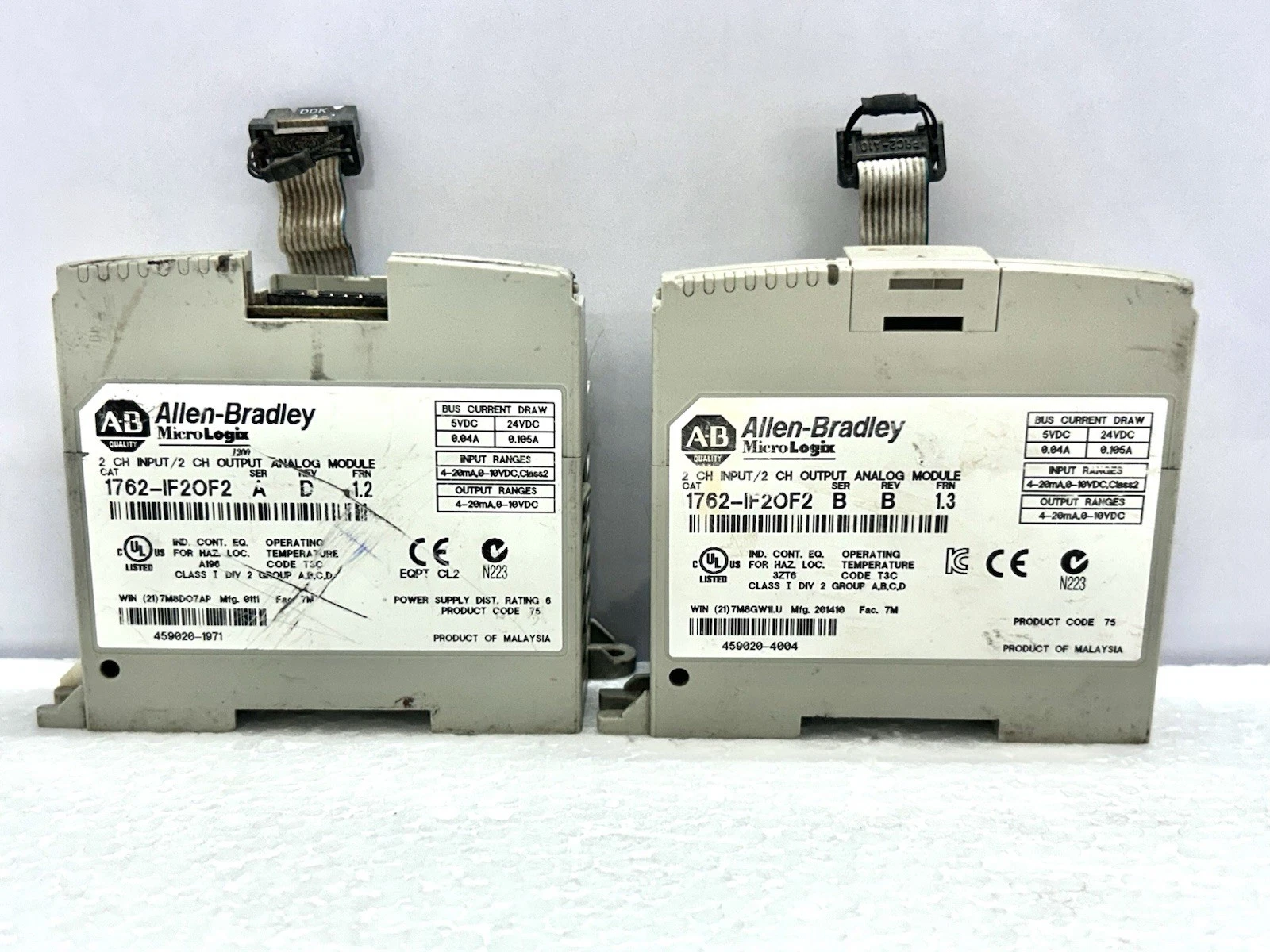

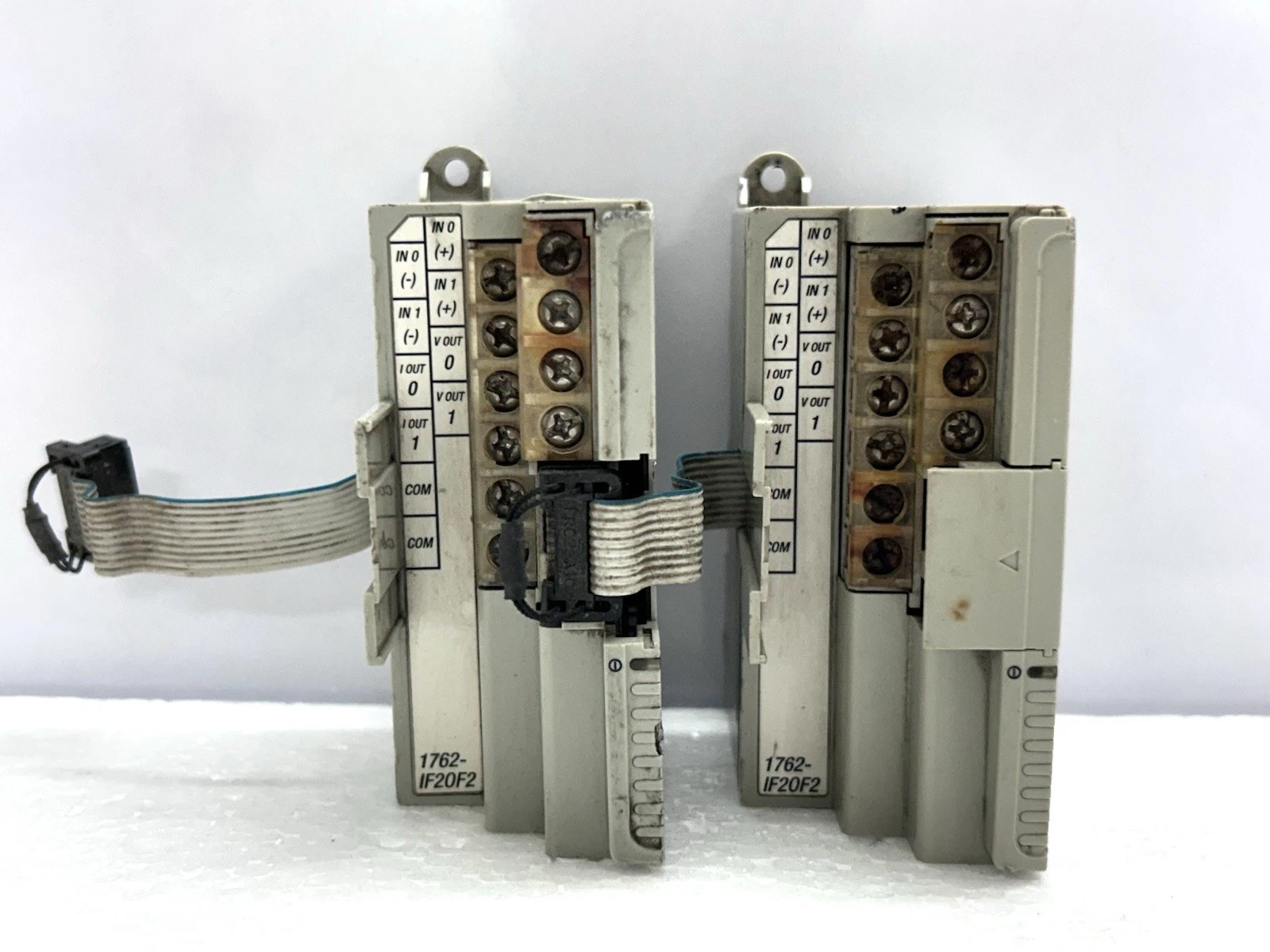

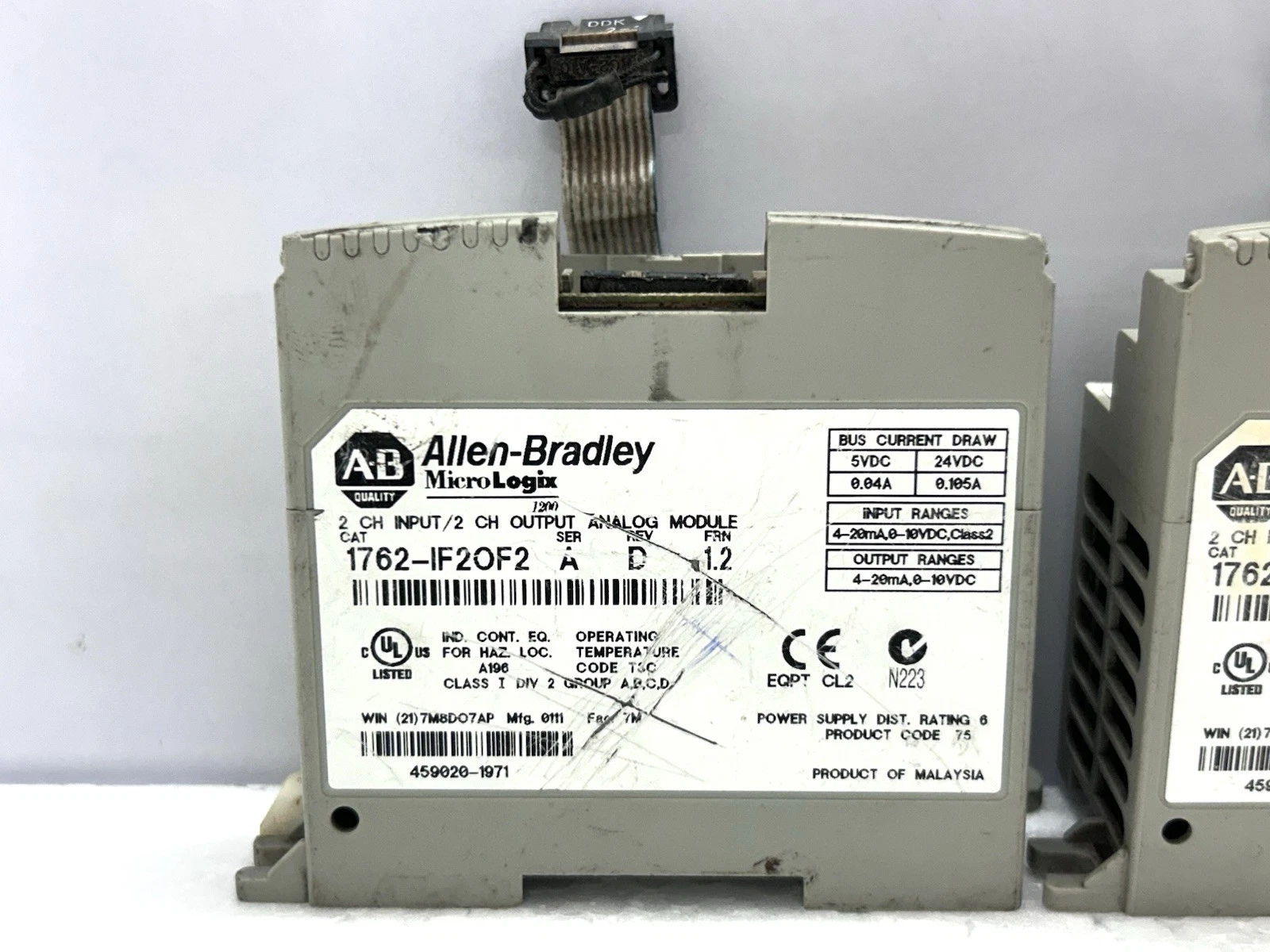

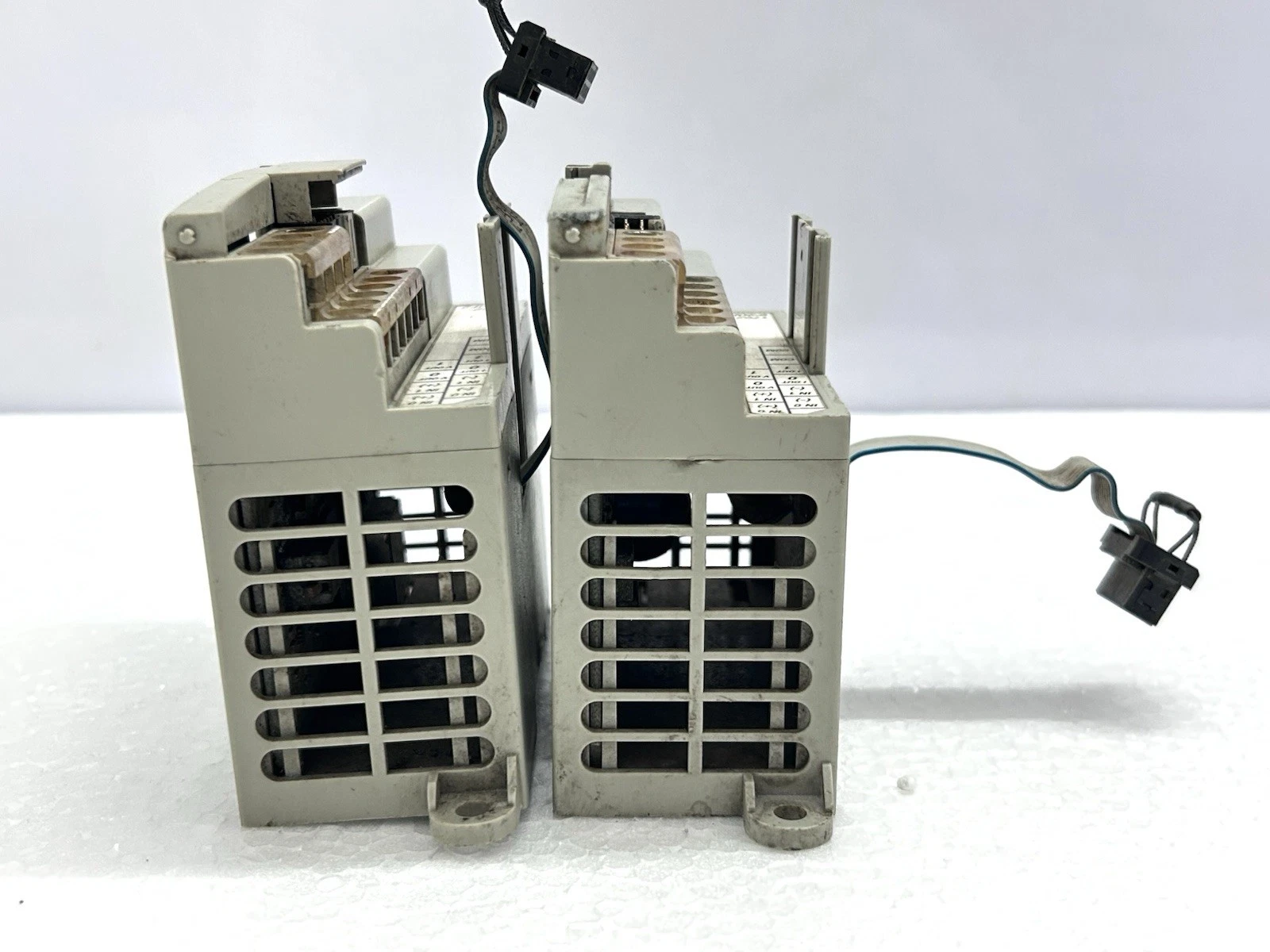

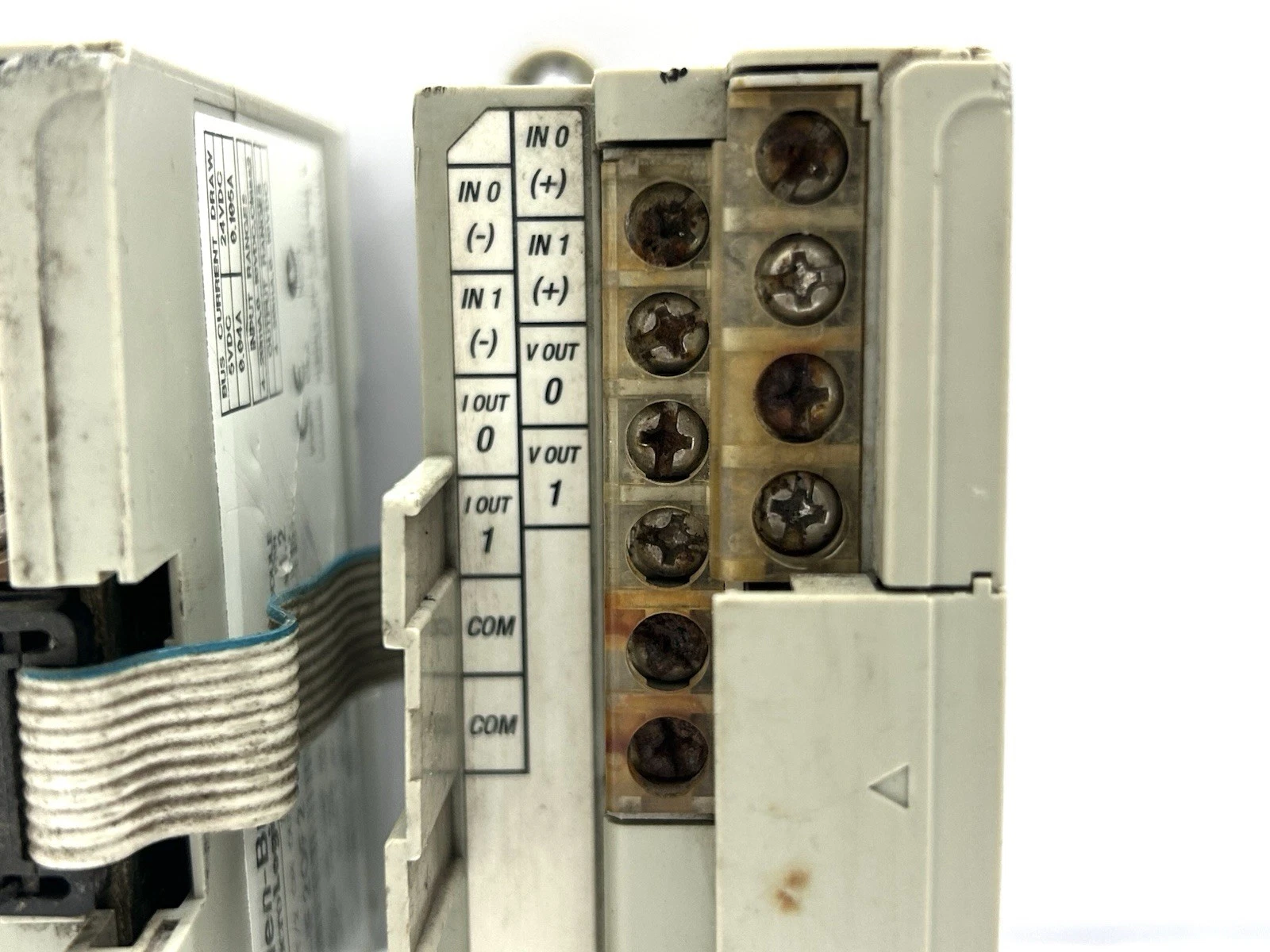

• Visual Reference: Please refer to the high-resolution photos to verify the terminal labels and serial number; the unit pictured is the exact module you will receive.

Package Includes

1. 1 x Allen-Bradley 1762-IF2OF2 Analog Expansion Module (Used)
2. Note: Does not include the original box or printed manual. Configuration is performed via RSLogix 500 software.
