ALLEN BRADLEY 22A-A2P1N103 Used Working AC Drive

Product Overview

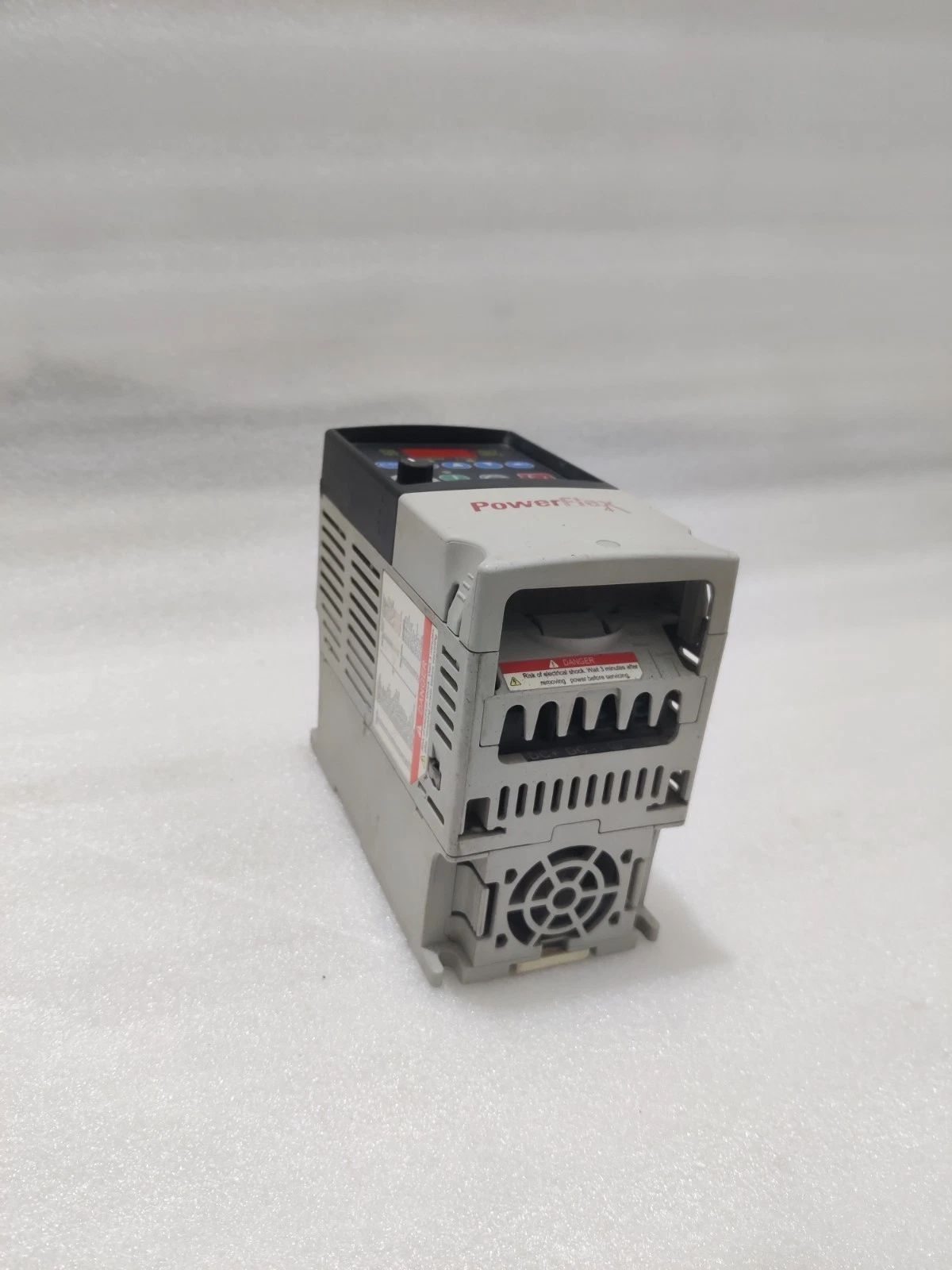

The Allen-Bradley 22A-A2P1N103 (Series A) is a compact and versatile PowerFlex 4 Adjustable Frequency AC Drive, designed for precise speed control of three-phase induction motors. This specific model is engineered for Single-Phase 200-240V AC input, making it an ideal choice for smaller workshops, commercial appliances, and industrial applications where three-phase utility power is unavailable. As a Used Working unit, this drive provides a cost-effective, space-saving solution for applications such as fans, pumps, conveyors, and machine tools.

Key Features

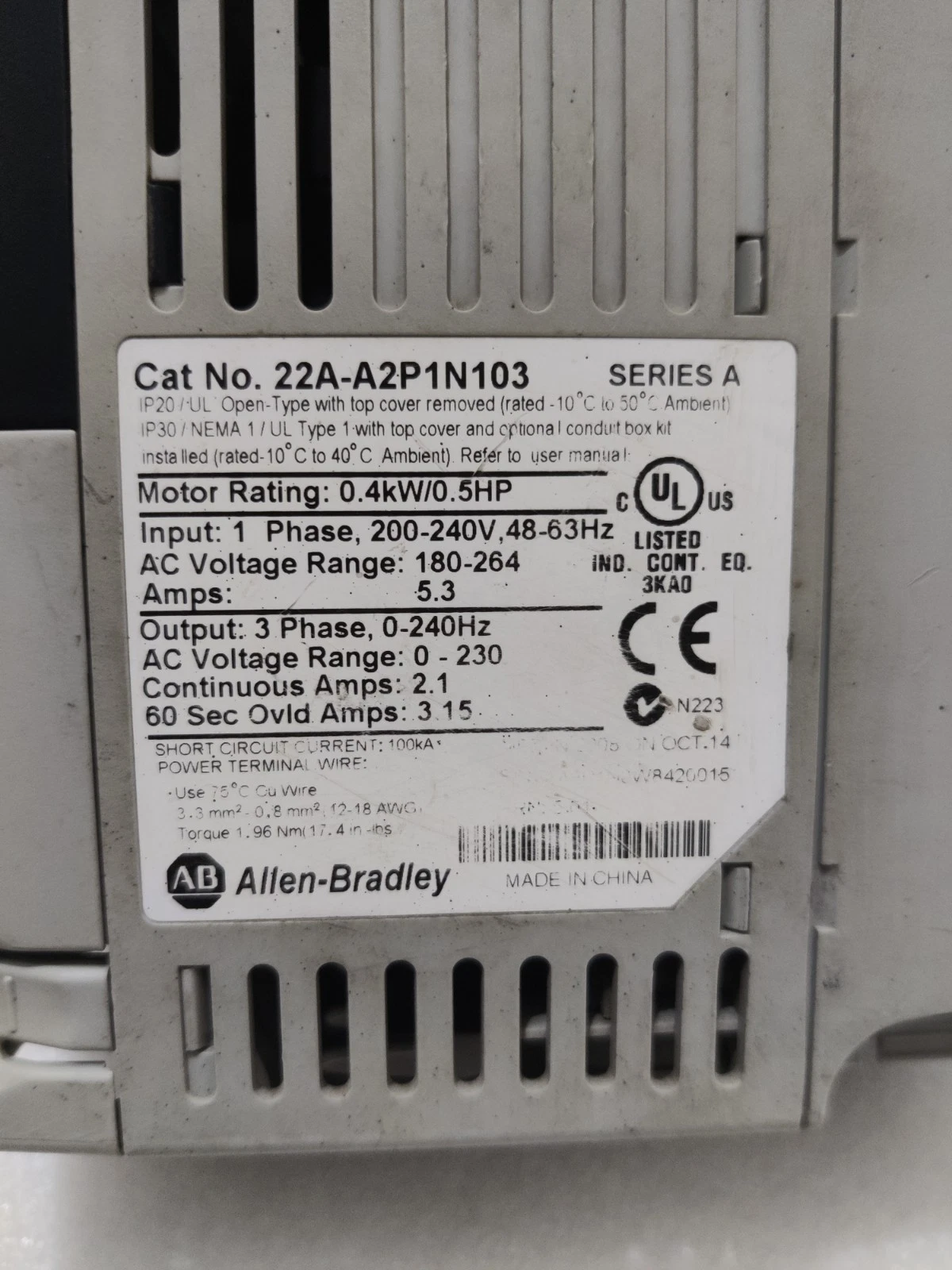

• Single-Phase Input Efficiency: Optimized for 240V 1-phase input, outputting 2.1 Amps of 3-phase power to drive motors up to 0.4 kW (0.5 HP).
• Compact Space-Saving Design: Features a "Zero-Stacking" capability, allowing multiple drives to be mounted side-by-side with minimal clearance to save valuable cabinet space.

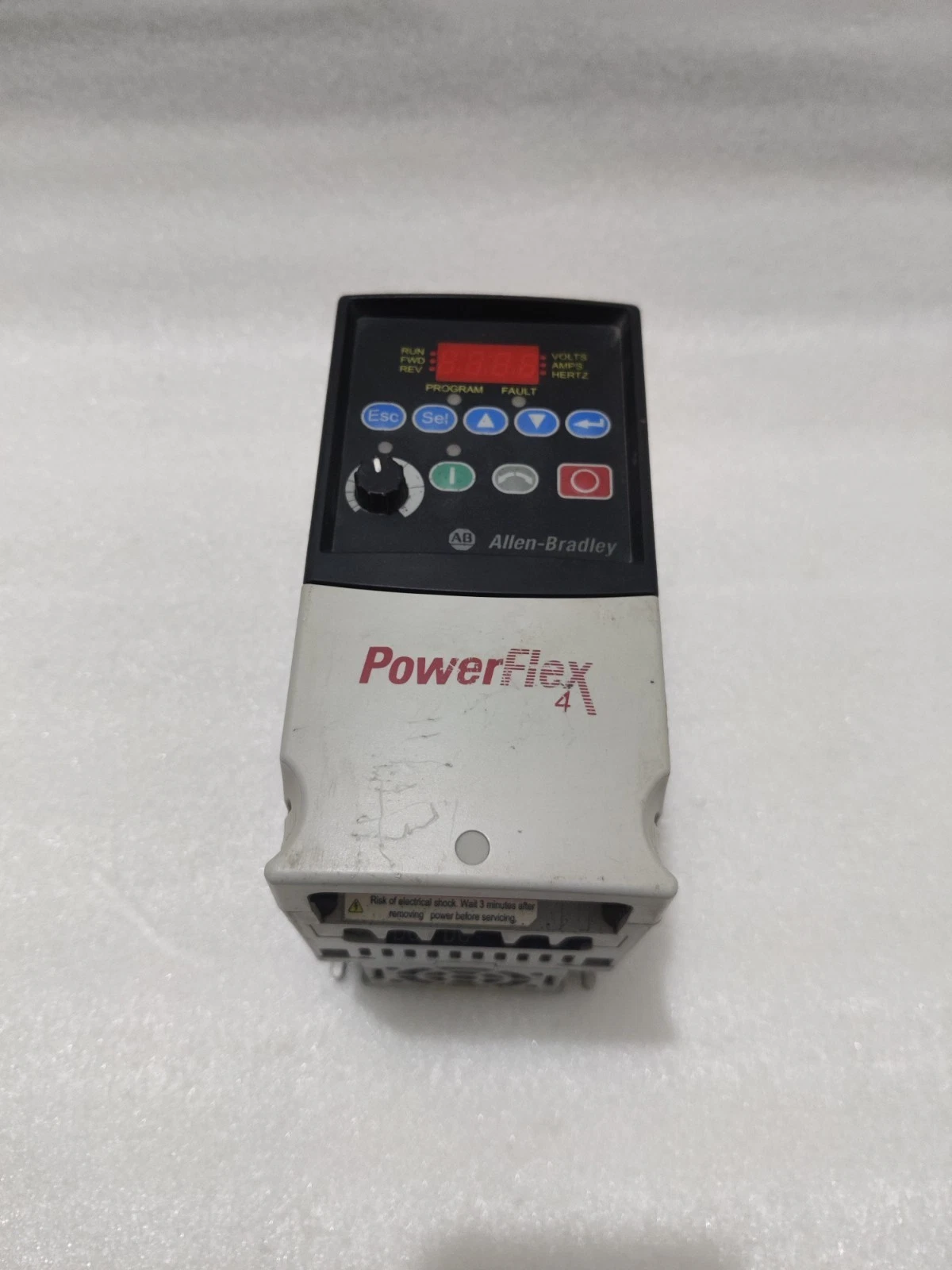

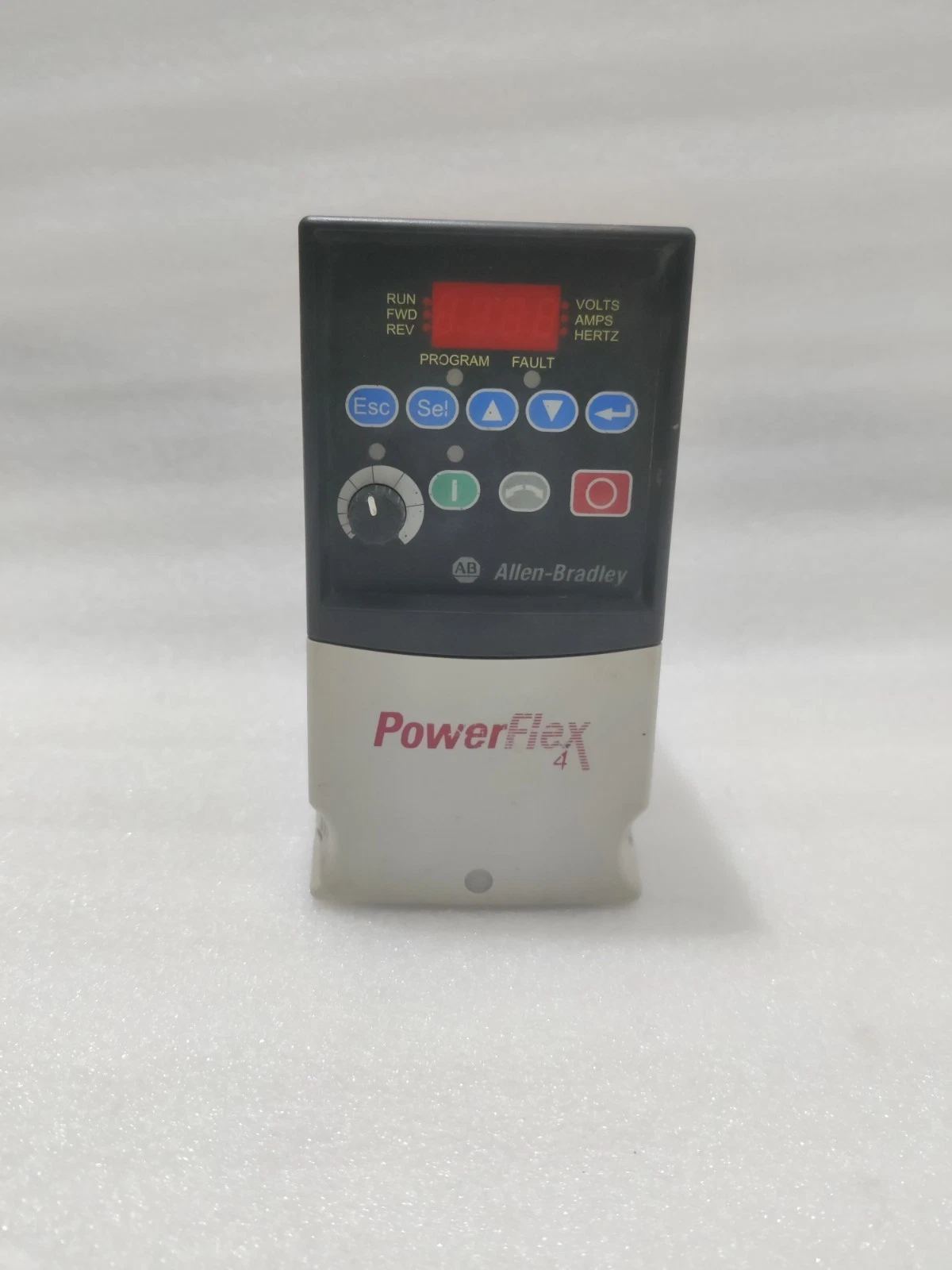

• Integrated Keypad & Display: Equipped with a built-in digital display and programming keys for rapid parameter adjustment and real-time monitoring of frequency and current.
• Versatile Control Modes: Supports Volts per Hertz (V/Hz) control, providing excellent torque performance across a wide speed range.
• Flexible Communication: Features an integral RS-485 communication port, compatible with peripheral interfaces for EtherNet/IP, DeviceNet, and ControlNet.
• Protective Features: Includes comprehensive electronic motor overload protection, overvoltage/undervoltage monitoring, and short-circuit protection.

Item Condition (Used Working)

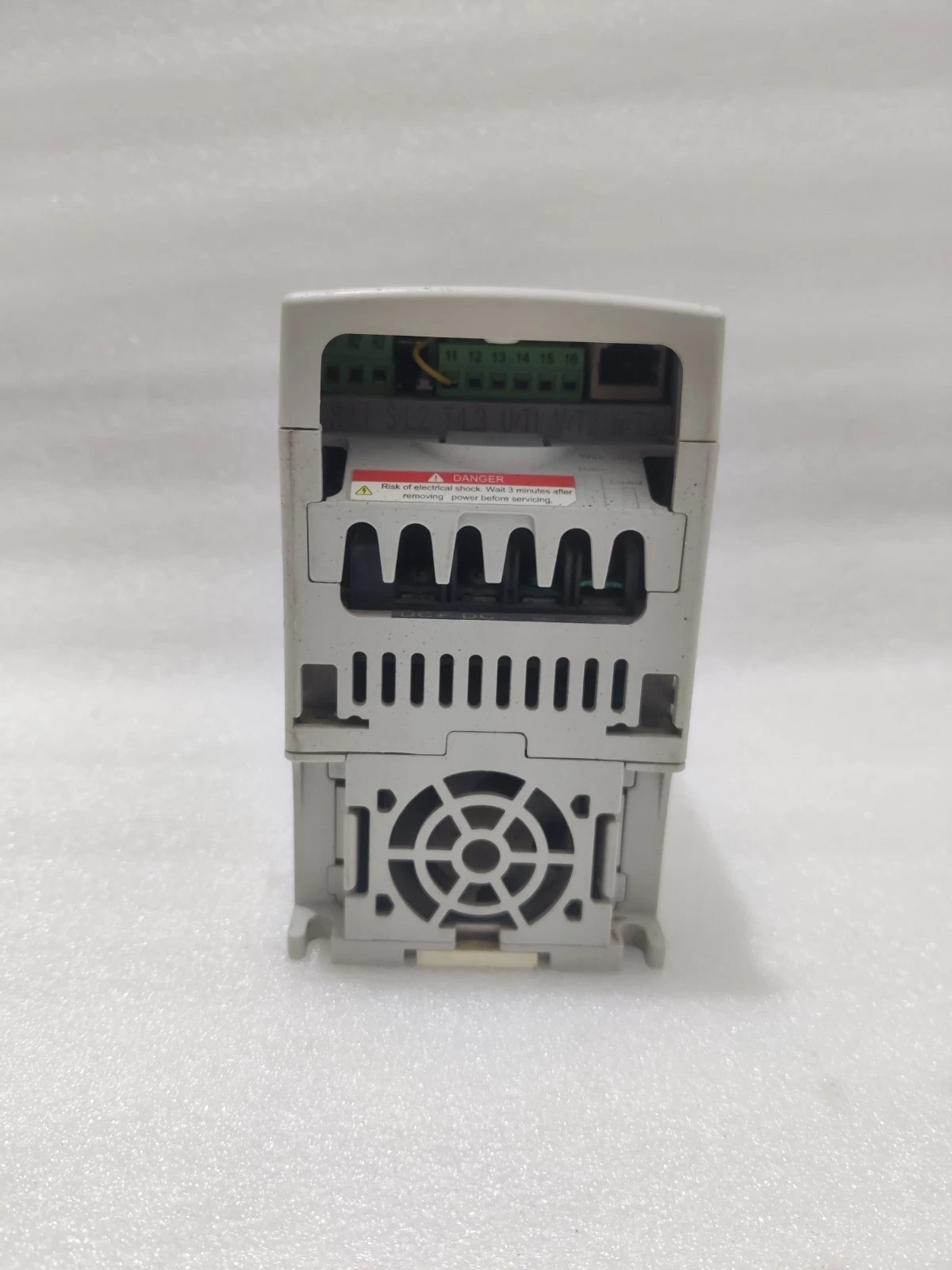

• Functional Status: Used Working. This drive has been professionally bench-tested. It has been powered up, and the output frequency has been verified under a test load. The cooling fan and digital display are fully operational.

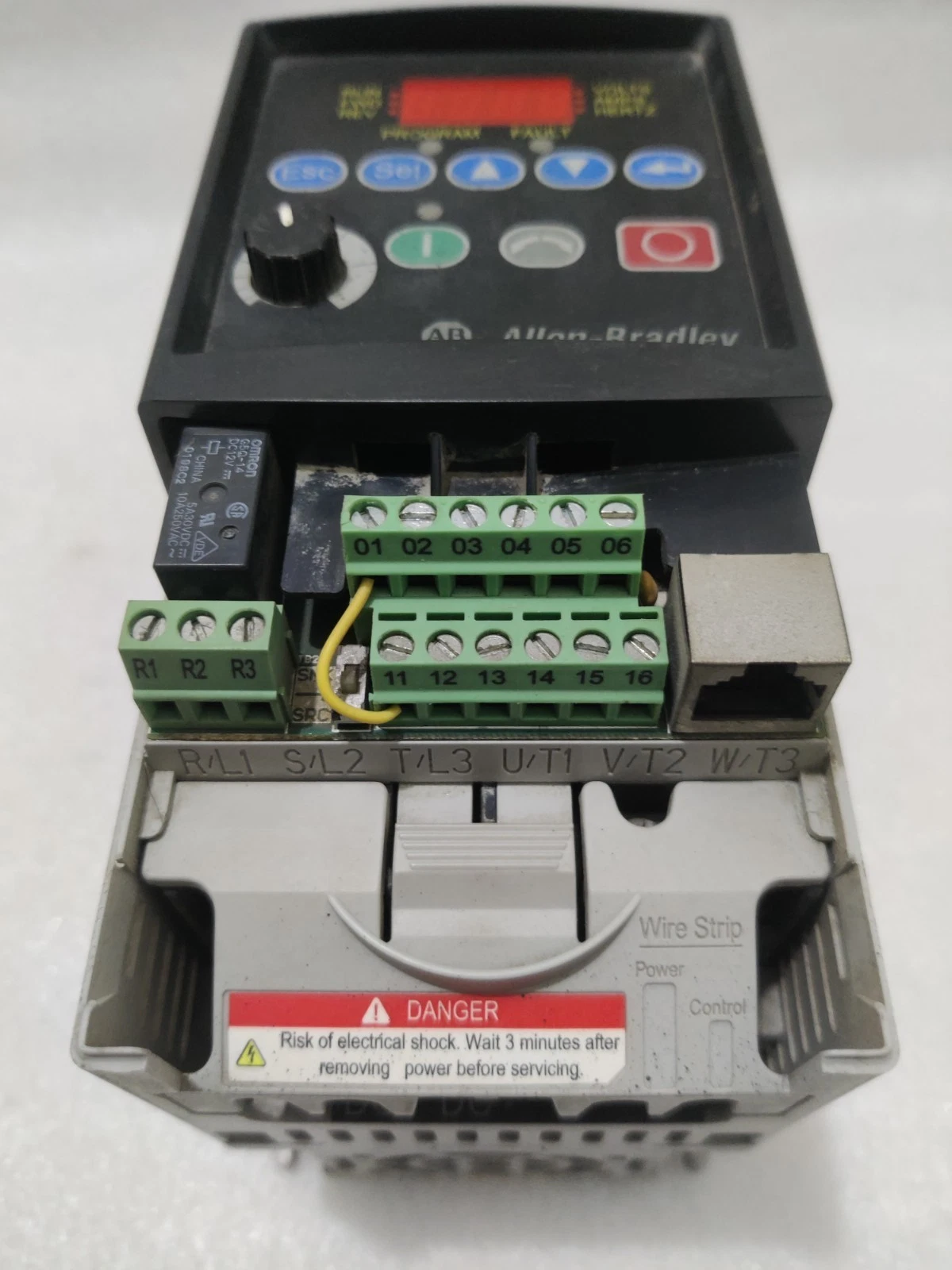

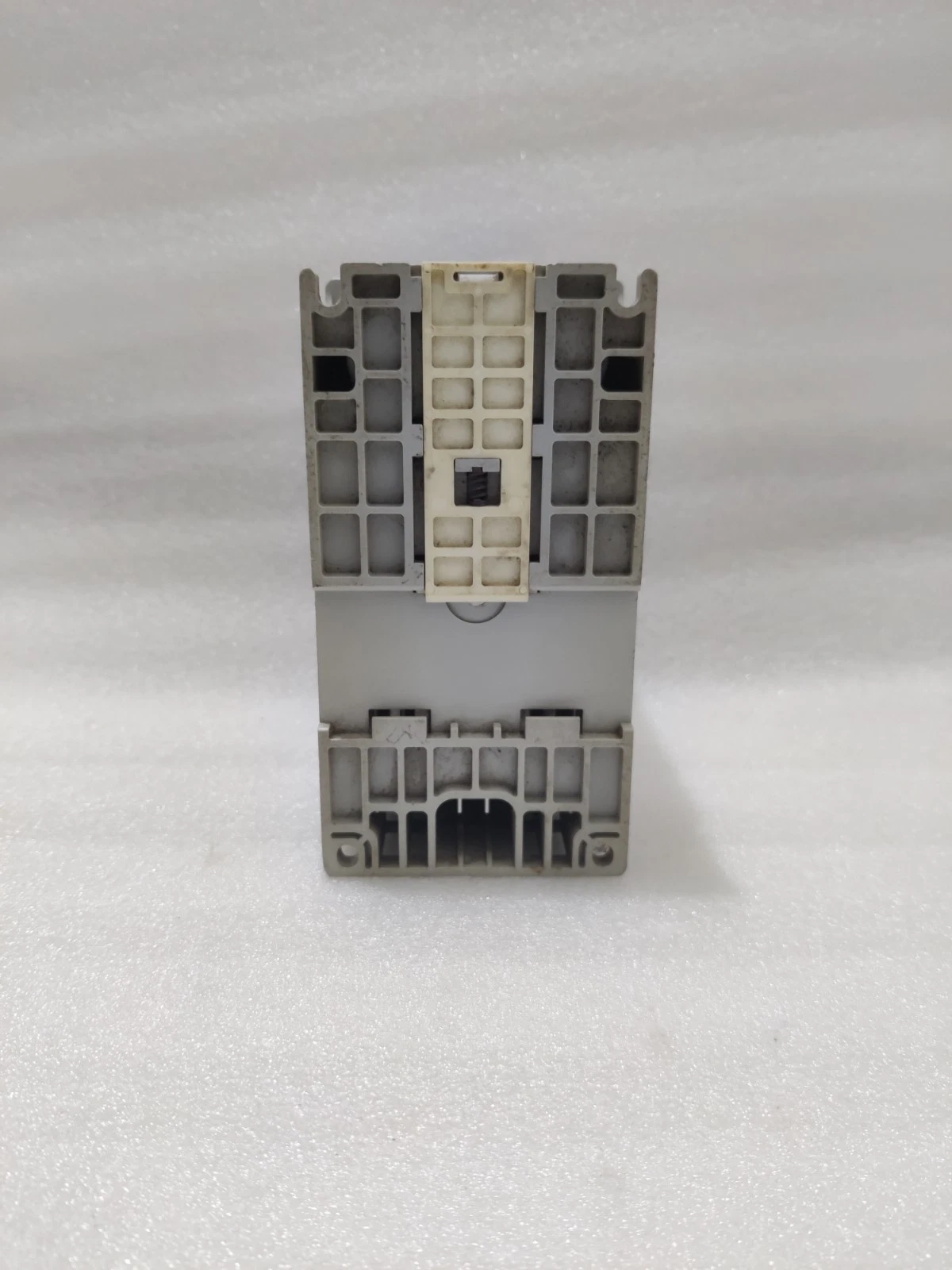

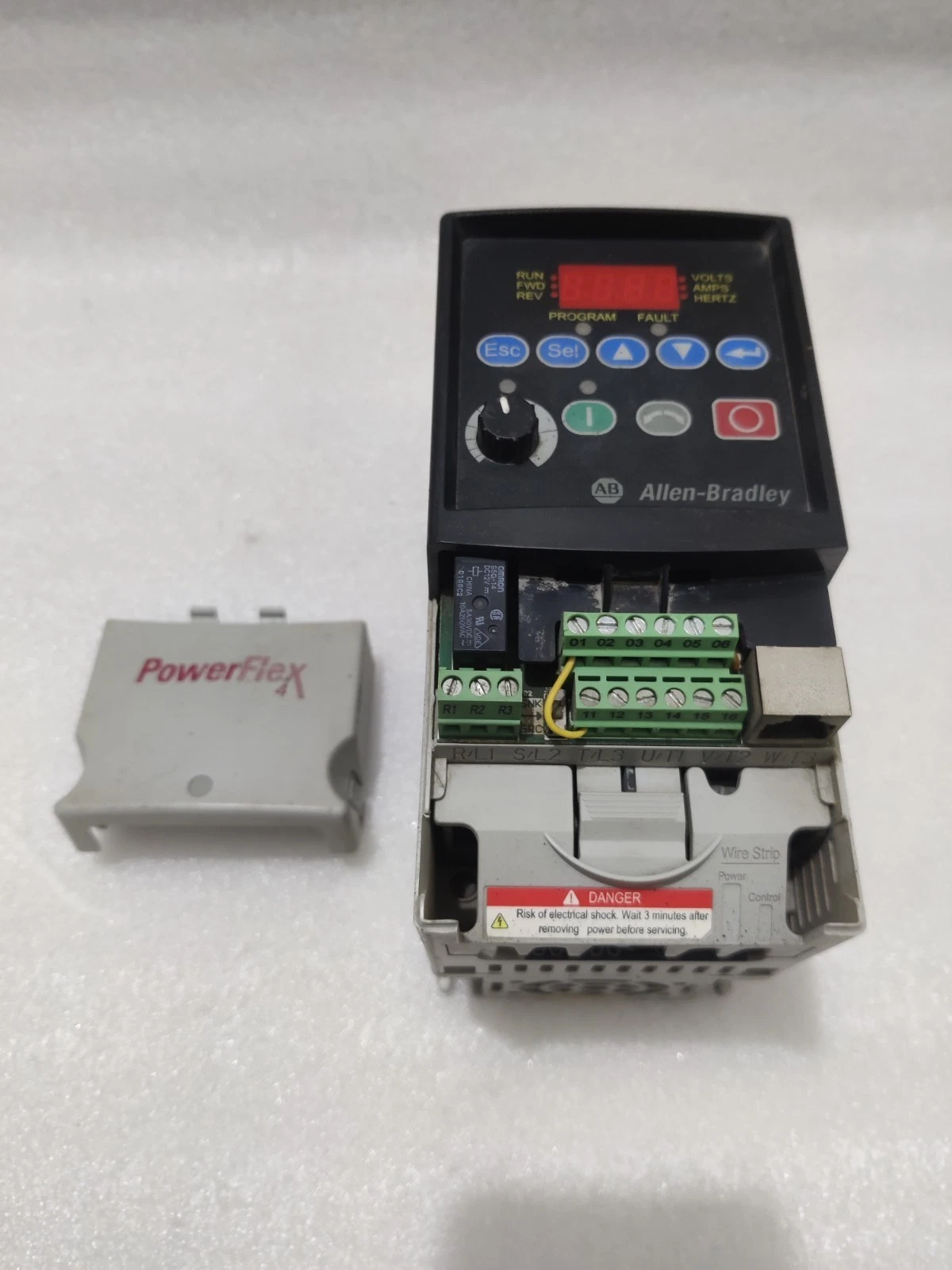

• Physical State: Clean industrial condition. The terminal cover is present, and the DIN rail mounting latch is secure. The front-panel buttons provide a firm tactile response.
• Technical Integrity: No "F004" (Undervoltage) or "F005" (Overvoltage) faults were detected during testing. The unit has been handled in an ESD-safe environment and cleared of previous parameter settings.
• Note: Professional installation by a qualified electrician is recommended. Please ensure the motor's full-load amps (FLA) do not exceed the 2.1A rating of this drive.

Package Includes

1. 1 x Allen-Bradley 22A-A2P1N103 PowerFlex 4 AC Drive (Series A)
