BECKHOFF EL1014 Used Working EtherCAT Terminals Digital Input

Product Overview

The Beckhoff EL1014 is a high-performance 4-Channel Digital Input Terminal designed for use within an EtherCAT I/O system. This module captures rapid binary signals from the process level and transmits them, in a galvanically isolated form, to the higher-level automation device. The EL1014 is specifically engineered for 24V DC signals and features a fine-tuned input filter of 3.0 ms, making it highly effective at filtering out industrial mechanical contact bounce. This Used Working unit is a staple for any Beckhoff EtherCAT rack, offering reliable sensing for limit switches, sensors, and pushbuttons.

Key Features

• 4-Channel Density: Four independent digital inputs in a single, slim 12mm terminal housing.
• EtherCAT Optimized: Provides ultra-fast E-bus communication for real-time data acquisition and synchronization.
• Input Filtering: Integrated 3.0 ms hardware filter ensures stable signal processing by eliminating electrical noise and contact chatter.
• Galvanic Isolation: High-level isolation between the field-side signals and the internal E-bus protects your controller from surges.
• Status LEDs: Each channel features a dedicated green LED for clear, instantaneous visual confirmation of the input state.
• Tool-less Installation: Features the standard Beckhoff "click-and-lock" mechanism for rapid DIN rail mounting and E-bus connection.
• Industrial Compatibility: Compatible with all Beckhoff EtherCAT Couplers (e.g., EK1100) and Embedded PCs (CX series).

Item Condition (Used - Working)

• Functional Status: Used - Working. This terminal has been professionally tested in an EtherCAT test rig. All four inputs have been verified to trigger correctly, and the E-bus data transmission is stable.

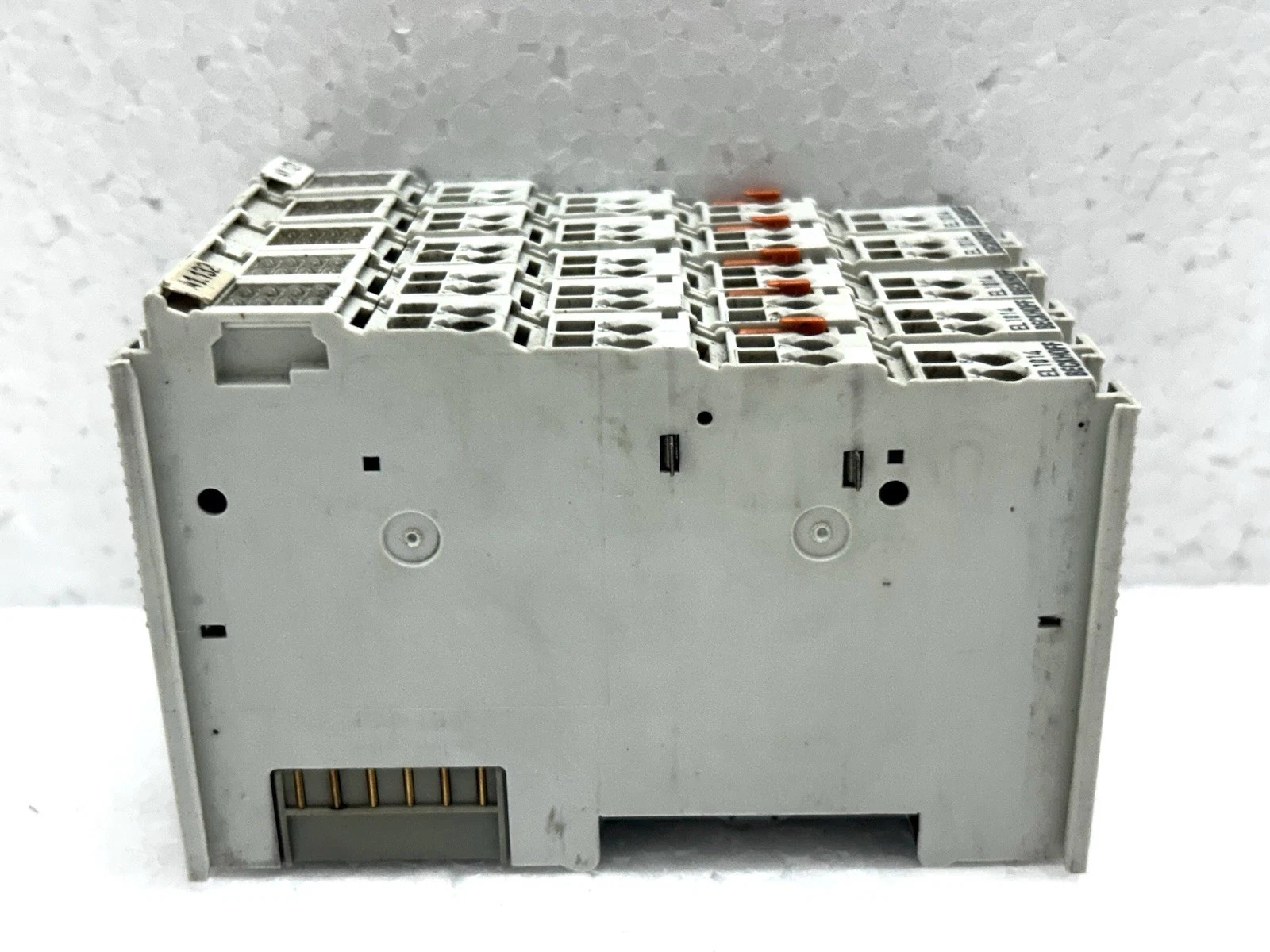

• Physical State: Excellent condition. The gold-plated side contacts are clean and free of oxidation. The front-facing terminal springs are tight and secure.
• Technical Integrity: No signs of thermal damage or physical stress to the plastic housing. The unit is ready for immediate integration into a live system.

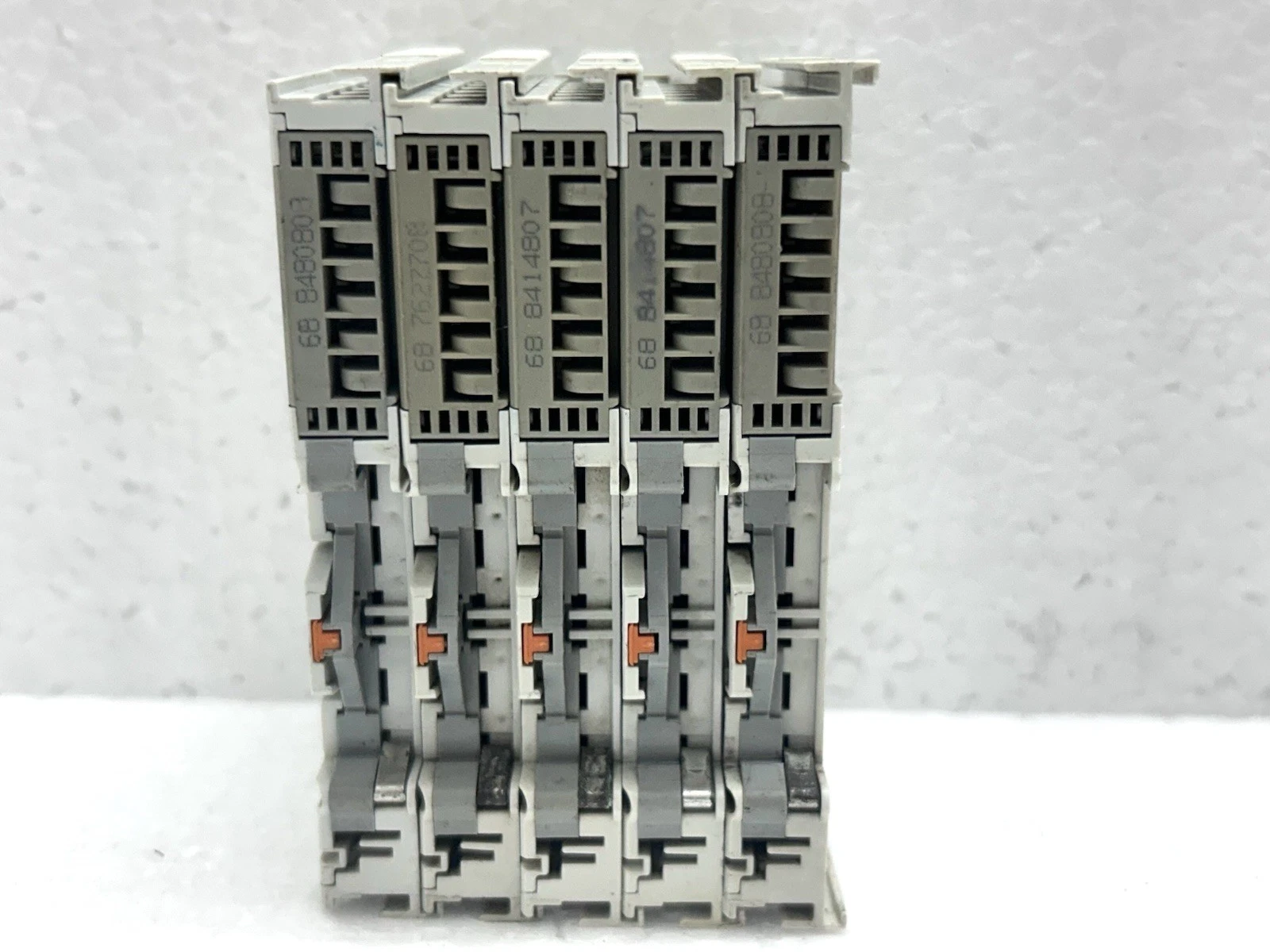

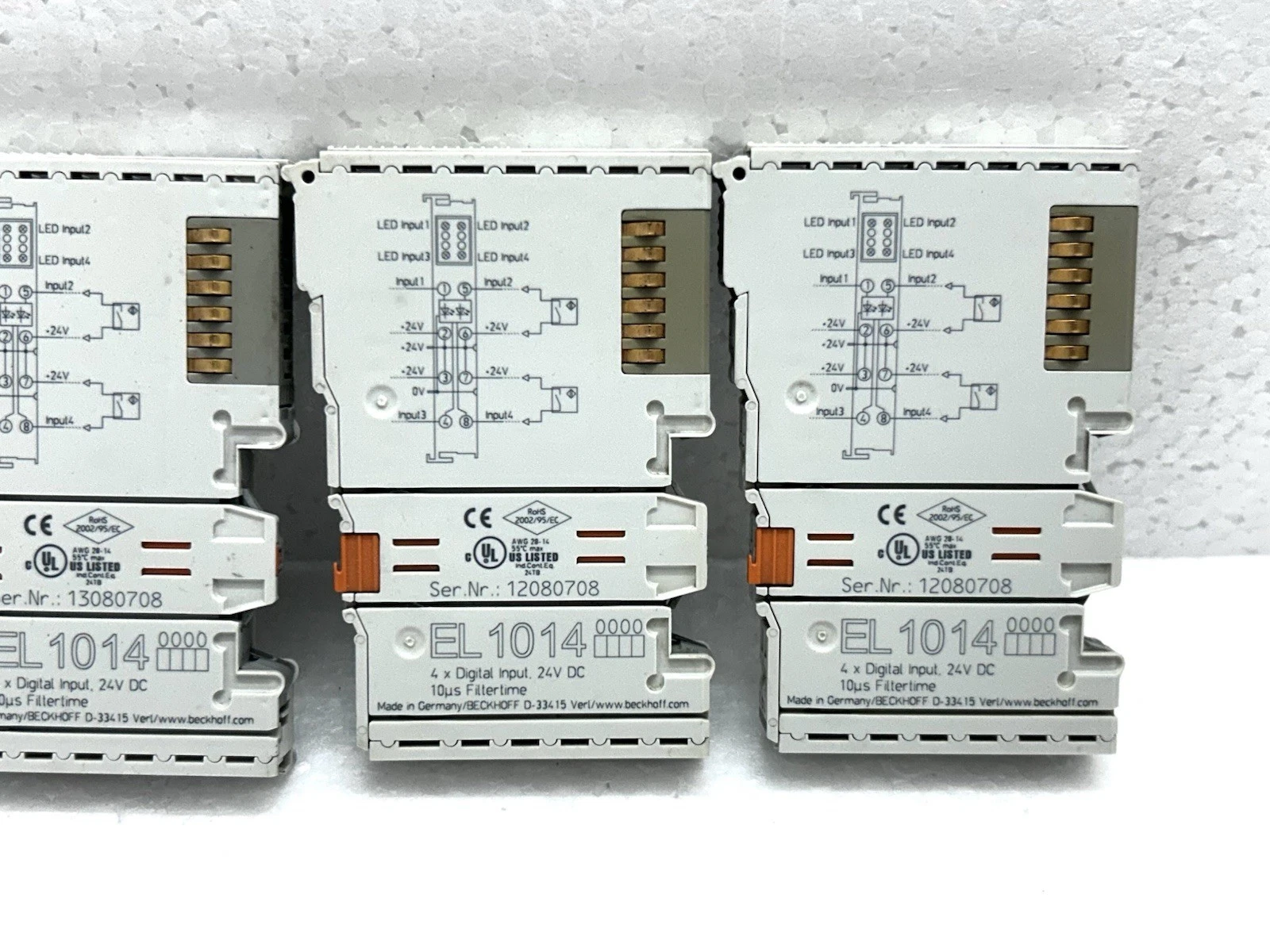

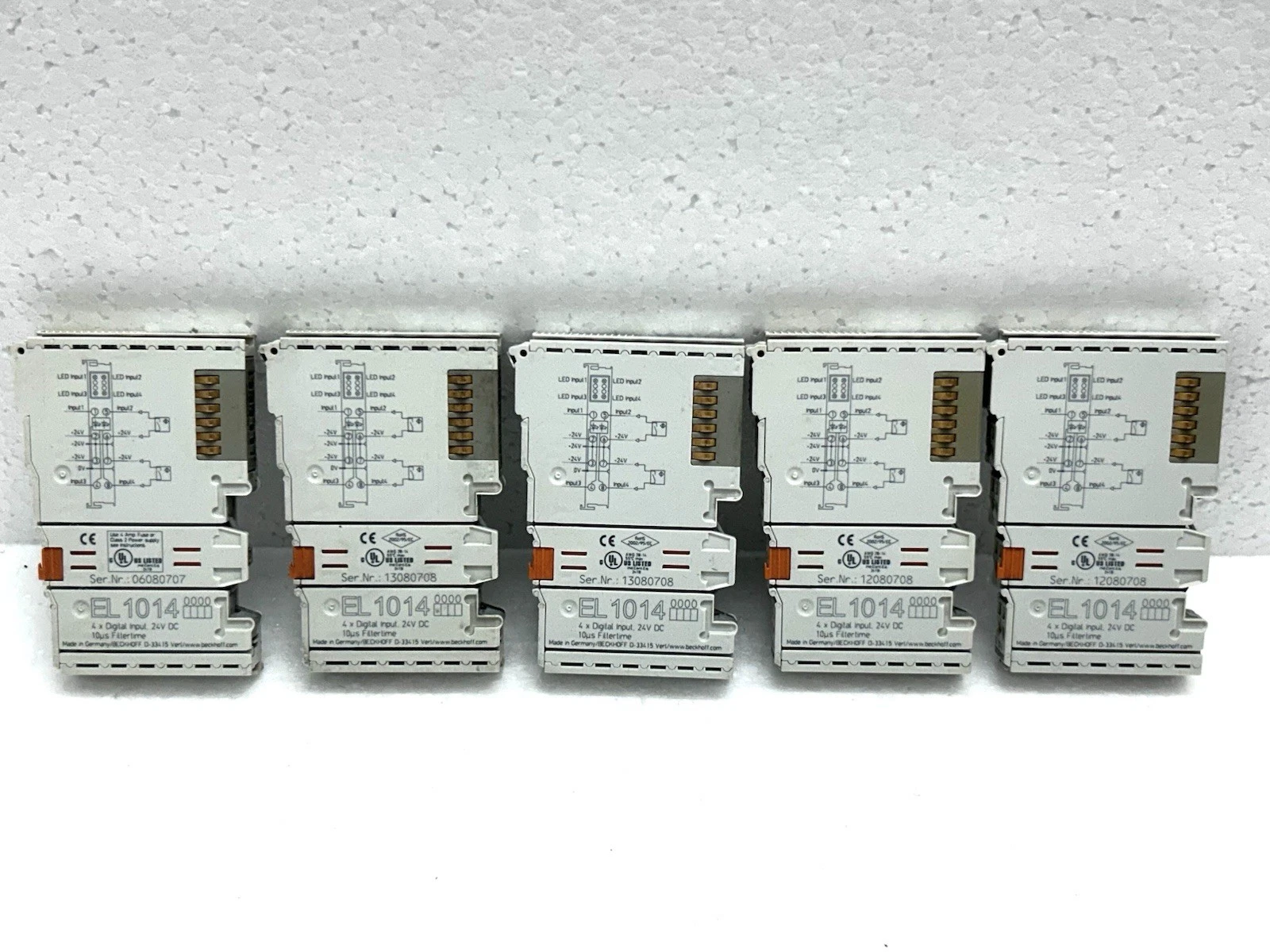

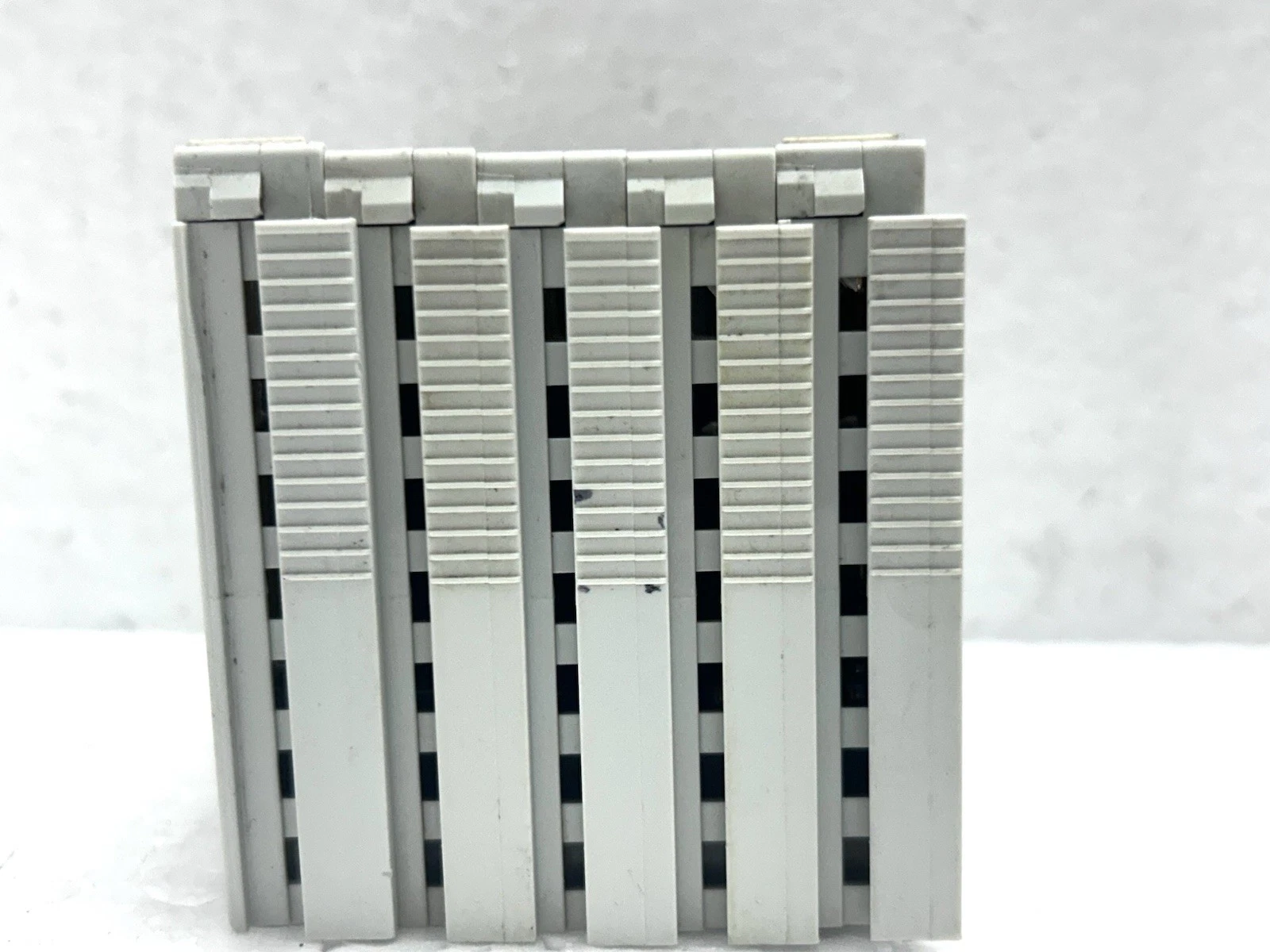

• Visual Reference: Please refer to the high-resolution images to verify the hardware revision; the unit pictured is the exact EL1014 you will receive.

Package Includes

1. 1 x Beckhoff EL1014 4-Channel Digital Input Terminal (Used)
2. Note: Does not include the required EtherCAT Coupler (EK1100) or end terminal (EL9011).
