CLIPSAL L5501RBCP New C-Bus System Shutter Relay

Product Overview

The Clipsal L5501RBCP is a specialized C-Bus Shutter Relay designed for the precise control of motorized blinds, curtains, shutters, and awnings. As a part of the "Learn Enabled" C-Bus range, it features an internal microprocessor that manages the interlocking of directional controls, ensuring that "Up" and "Down" windings are never energized simultaneously—protecting your motors from damage. This unit is New Without Box, offering a pristine, never-installed component for your building automation system at a lower price point due to the lack of original retail packaging.

Key Features

• Motor Protection Interlock: Hardware and software interlocks prevent both directional relays from engaging at the same time, a critical safety feature for AC motorized shutters.

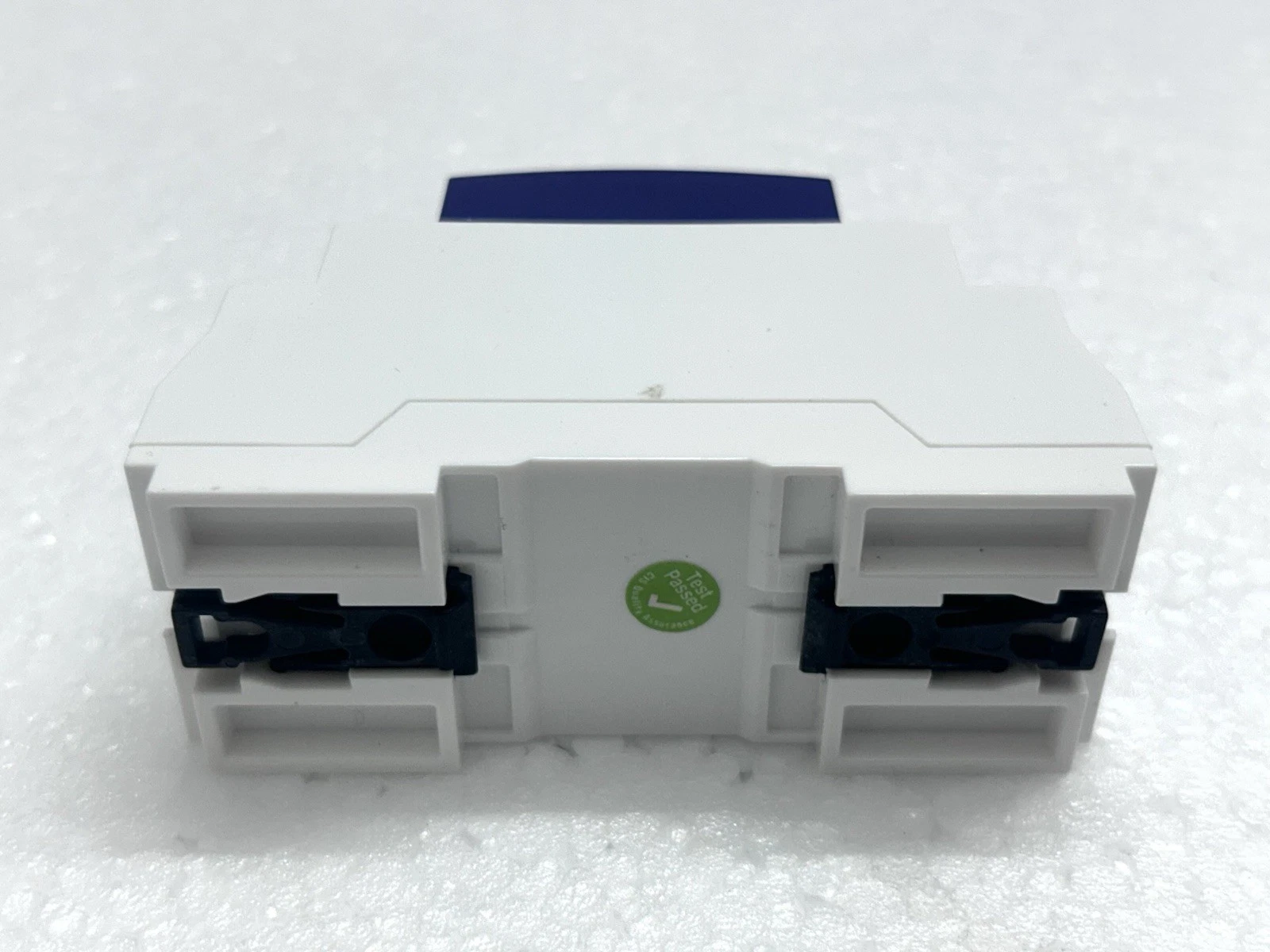

• DIN Rail Mounted: Occupies only 2 modules of DIN rail space, making it an extremely compact solution for high-density electrical cabinets.
• Programmable Travel Times: Allows for the configuration of specific opening and closing times via the C-Bus Toolkit, enabling precise "percentage-open" positioning.
• C-Bus Power: The unit is powered directly from the C-Bus network, simplifying wiring by eliminating the need for a separate auxiliary power supply for the logic.
• Local Override: Features local toggle buttons on the front of the unit, allowing contractors to test motor direction and operation manually without the C-Bus network being programmed.
• Versatile Voltage Handling: Suitable for switching standard 230V AC motors, commonly used in residential and commercial window shading applications.

Item Condition (New Without Box)

• Functional Status: New / Never Used. This unit has never been installed, wired, or integrated into a system. It is in perfect electrical and mechanical condition.
• Physical State: Pristine. There are no scratches on the casing, no wire marks on the terminals, and the DIN rail clip is factory-tight.
• Packaging: The original Clipsal box is missing. The unit will be shipped in high-quality, anti-static bubble wrap and a sturdy neutral box to ensure safe transit.

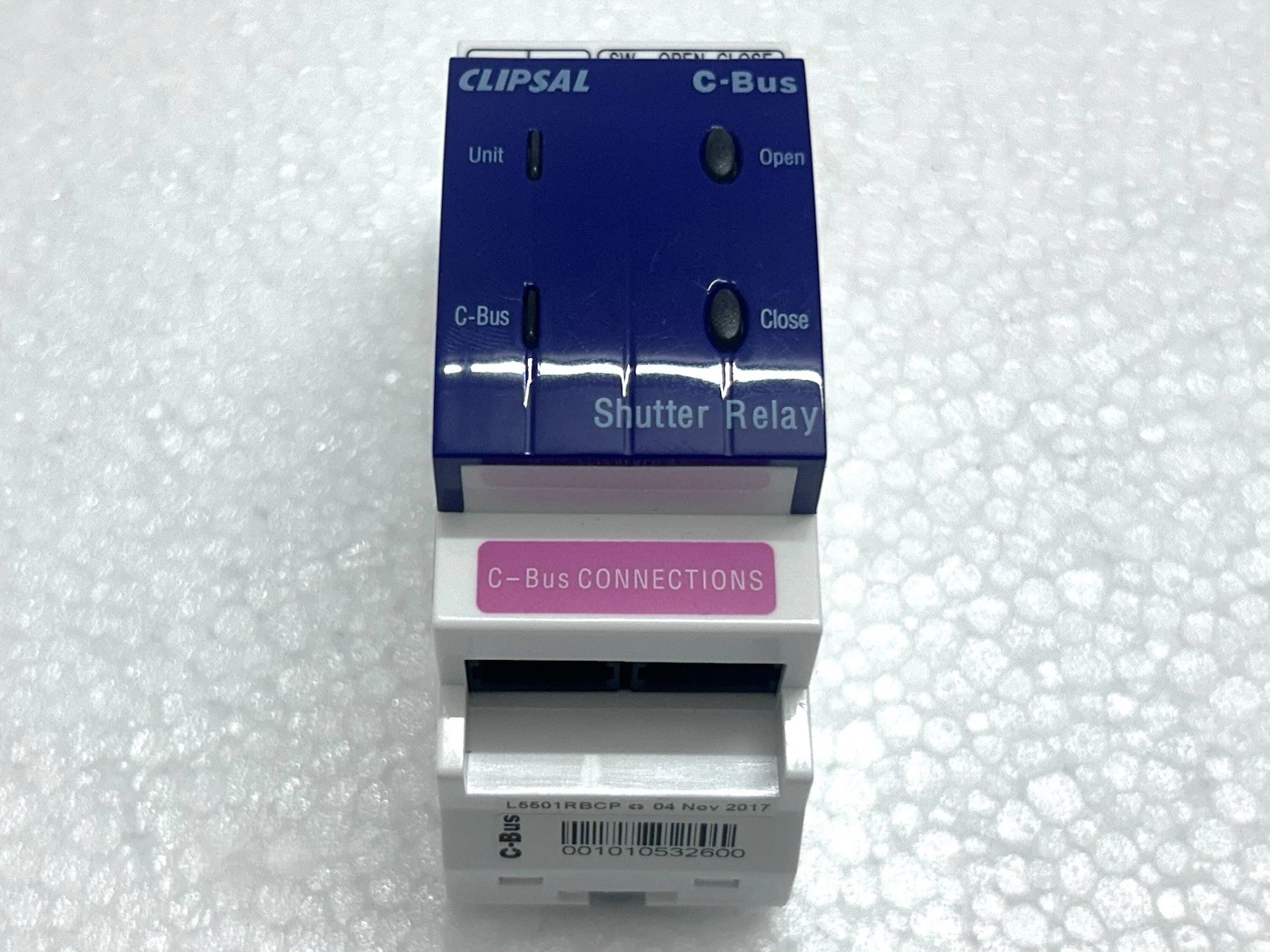

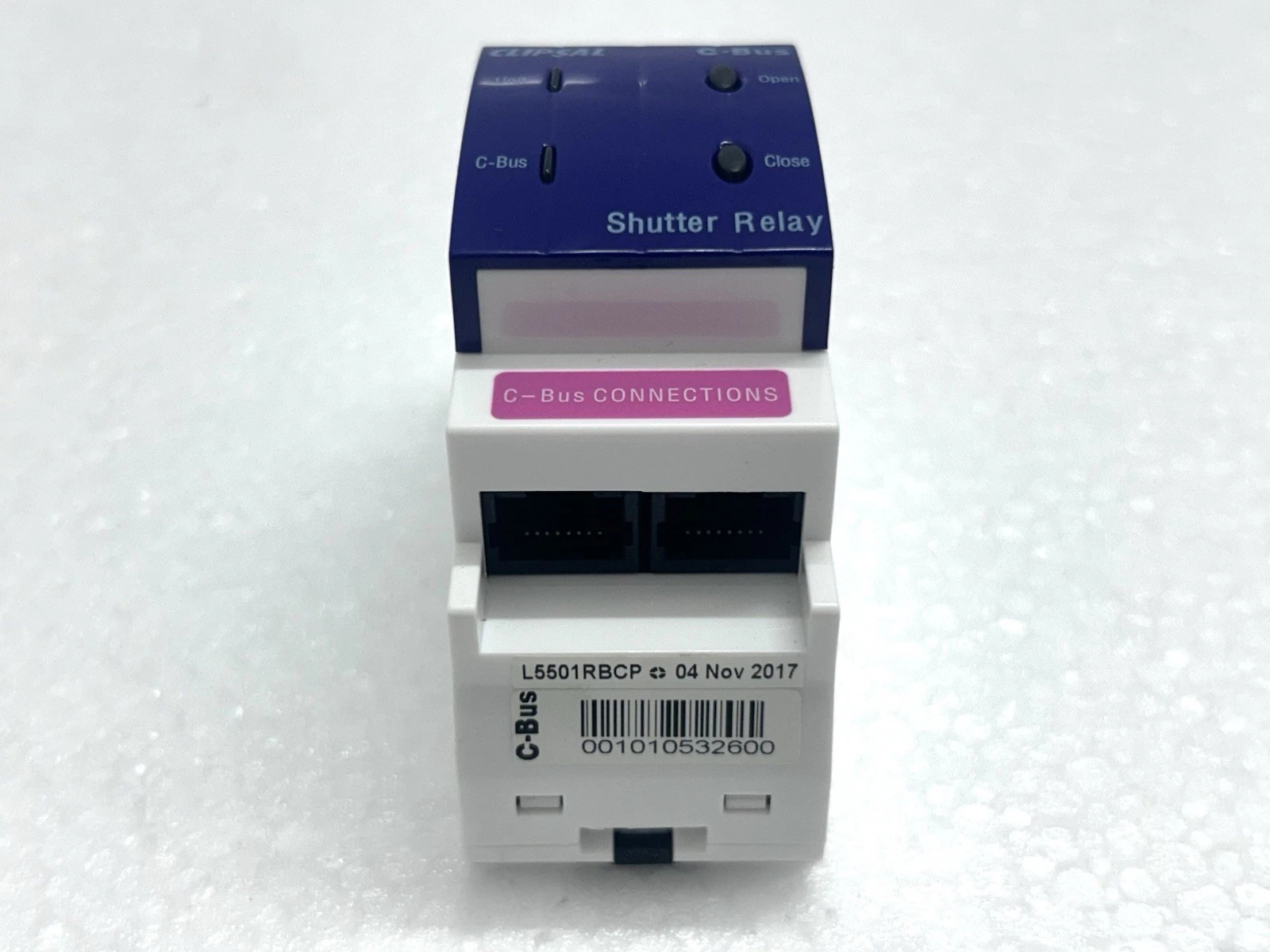

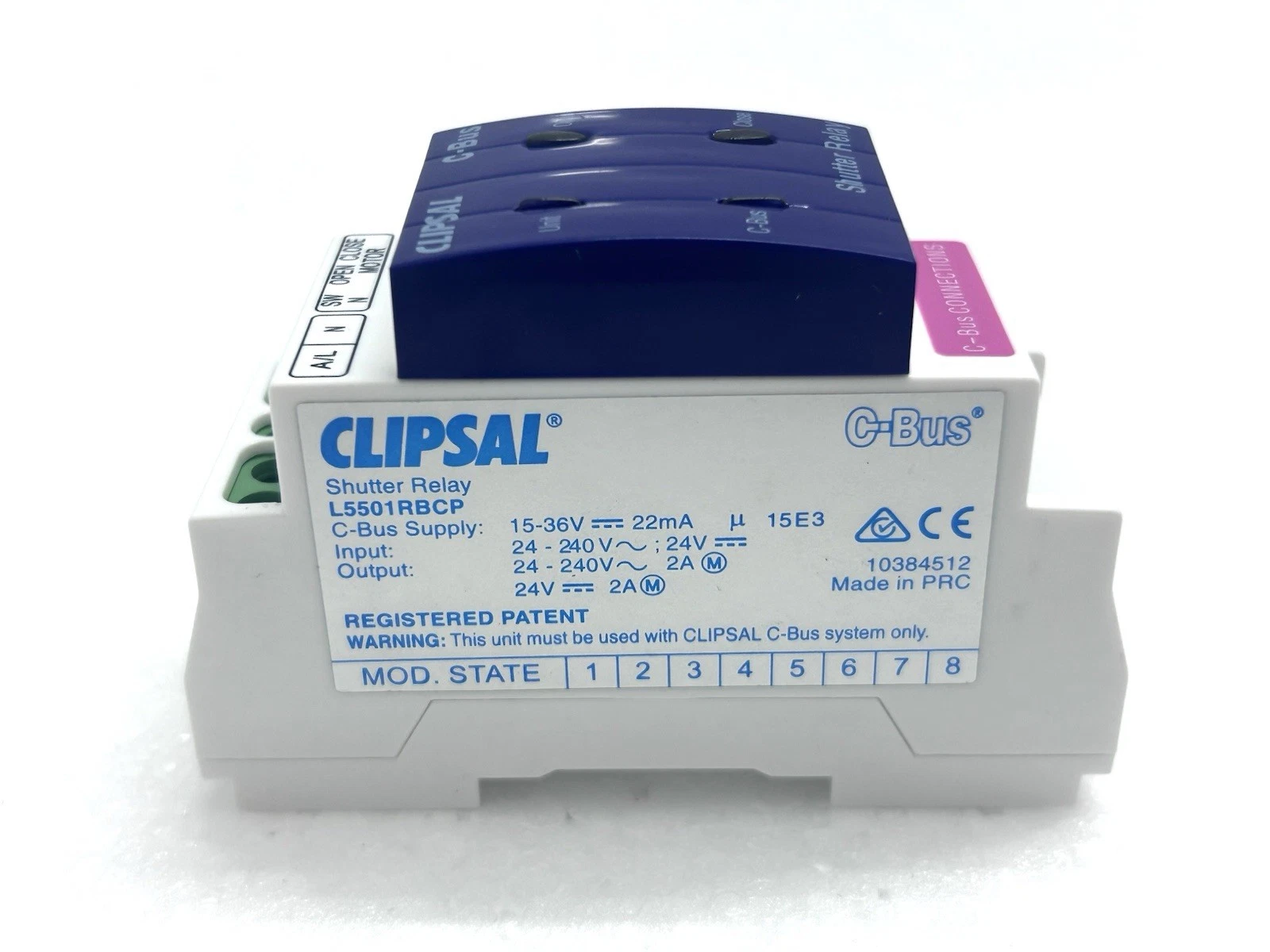

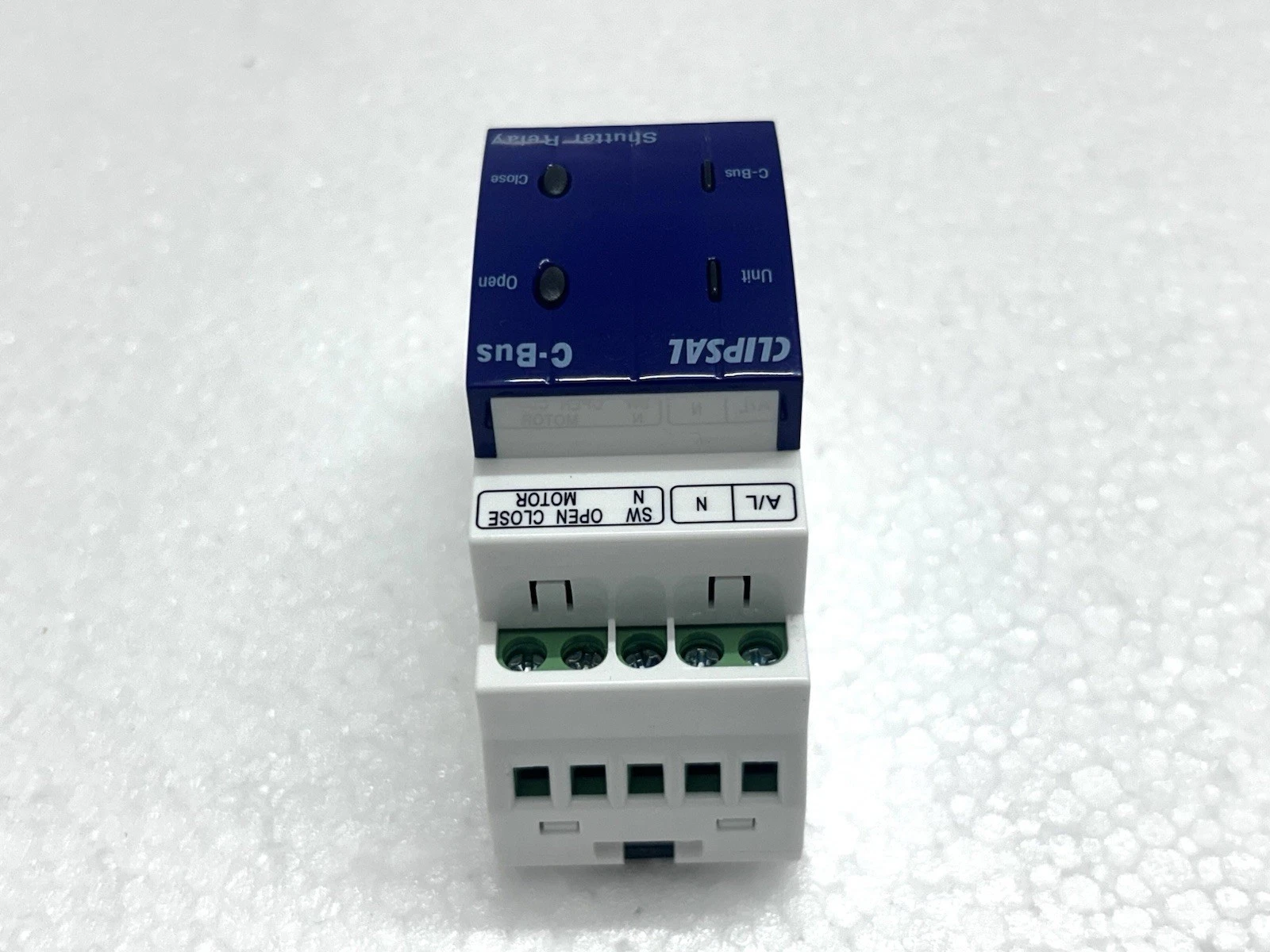

• Visual Reference: Please refer to the high-resolution images to confirm the part number and terminal configuration; the unit pictured is the exact shutter relay you will receive.

Package Includes

1. 1 x Clipsal L5501RBCP C-Bus Shutter Relay (New - No Box)
2. 1 x Set of Terminal Screws (Installed)
3. Note: Does not include C-Bus network leads or printed instruction sheets.
