MITSUBISHI FX2N-4AD Used Working MELSEC FX2N Modules

Product Overview

The Mitsubishi FX2N-4AD is a high-performance analog-to-digital converter module for the MELSEC FX2N PLC series. This module expands your system's capabilities by providing four high-resolution analog input channels, allowing for the simultaneous monitoring of multiple process variables such as temperature, pressure, level, or flow. As a Used - Working unit, it offers an industrial-grade solution for precision data acquisition at a fraction of the cost of new components, perfectly suited for legacy system maintenance or budget-conscious automation projects.

Key Features

• Four Independent Channels: Allows for up to four analog inputs (voltage or current) to be processed simultaneously.
• Selectable Input Ranges: Supports standard industrial signals: -10V to +10V DC (resolution of 5mV) and 4 to 20mA / 0 to 20mA (resolution of 20µA).
• High Resolution: Features a 12-bit digital output, providing a value range of -2000 to +2000 (or 0 to 4000) for granular control and monitoring.
• Fast Conversion: Boasts a conversion speed of 15ms per channel (6ms in high-speed mode), ensuring responsive data for time-sensitive PID loops.
• Seamless Connectivity: Clips directly to the right side of FX2N, FX3U, or FX3G base units via the integrated ribbon cable.

Item Condition (Used/Working)

• Functional Status: This module has been professionally decommissioned from a working environment. It has been bench-tested to verify signal accuracy across all four channels and stable communication with the PLC CPU.

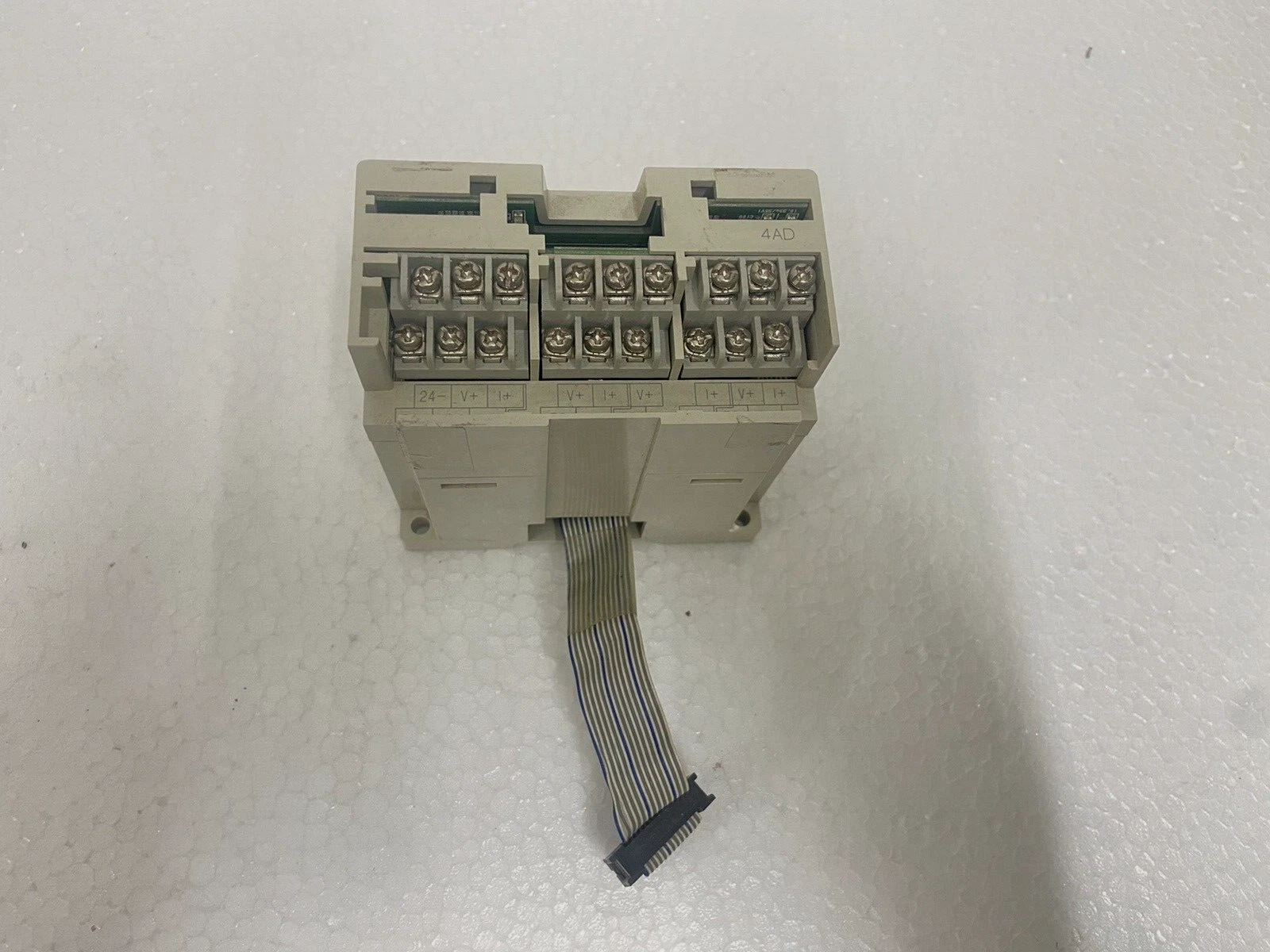

• Physical State: Shows signs of standard industrial use, such as minor scuffs on the housing. The terminal screws are clean, and the extension ribbon cable is in good condition with no frays or kinks.

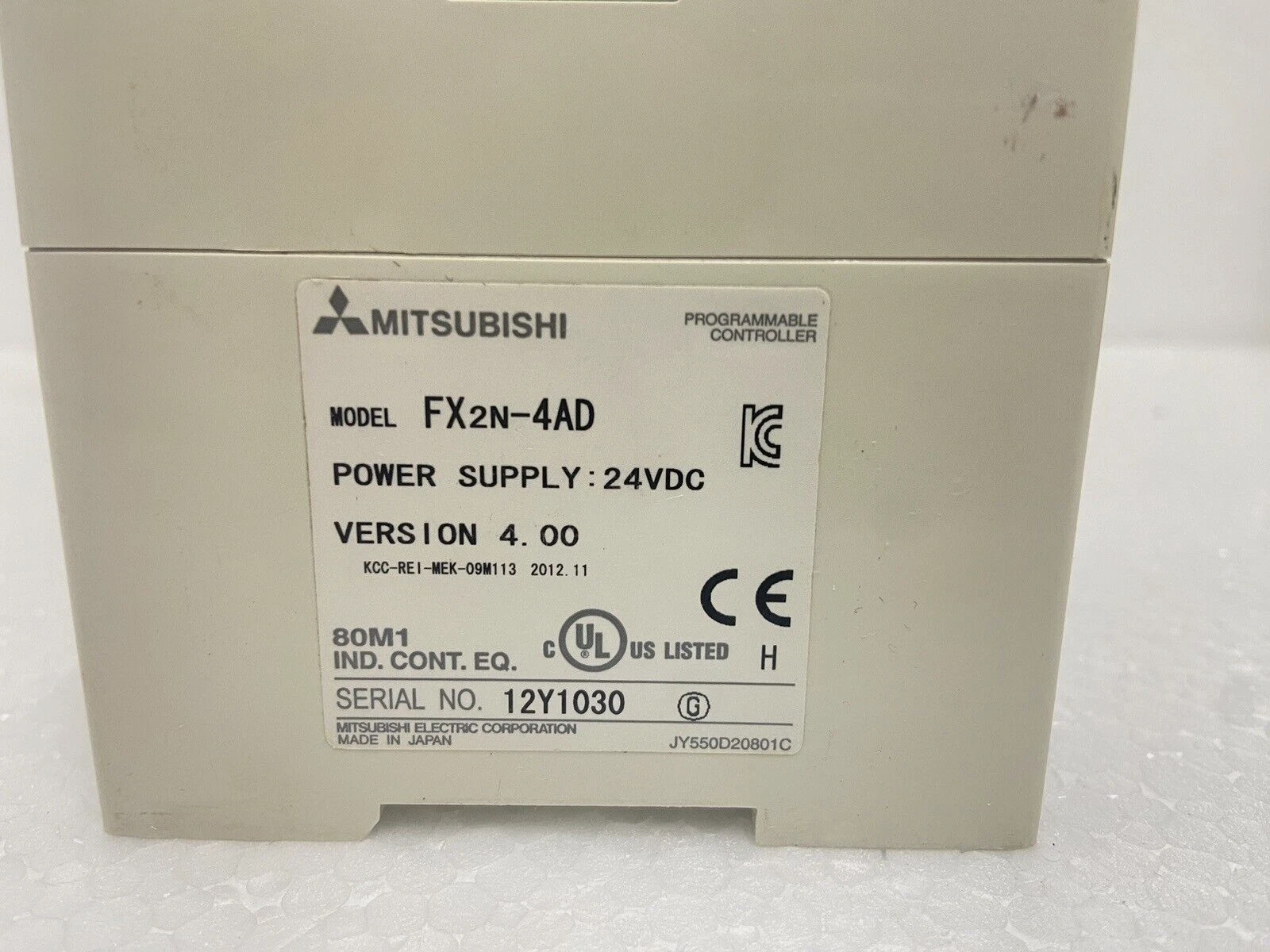

• Visual Reference: Please refer to the high-resolution images to verify the specific hardware version and terminal block layout; the unit pictured is the exact module you will receive.
• Note: Ensure your PLC's 24V DC power supply can handle the additional current load (50mA) required by this module.

Package Includes

1. 1 x Mitsubishi MELSEC FX2N-4AD Analog Input Module
2. Note: Includes only the module and attached ribbon cable. DIN rails, software, and external signal cables are not included.
