OMRON CQM1-OD214 Used Working Output Module

Product Overview

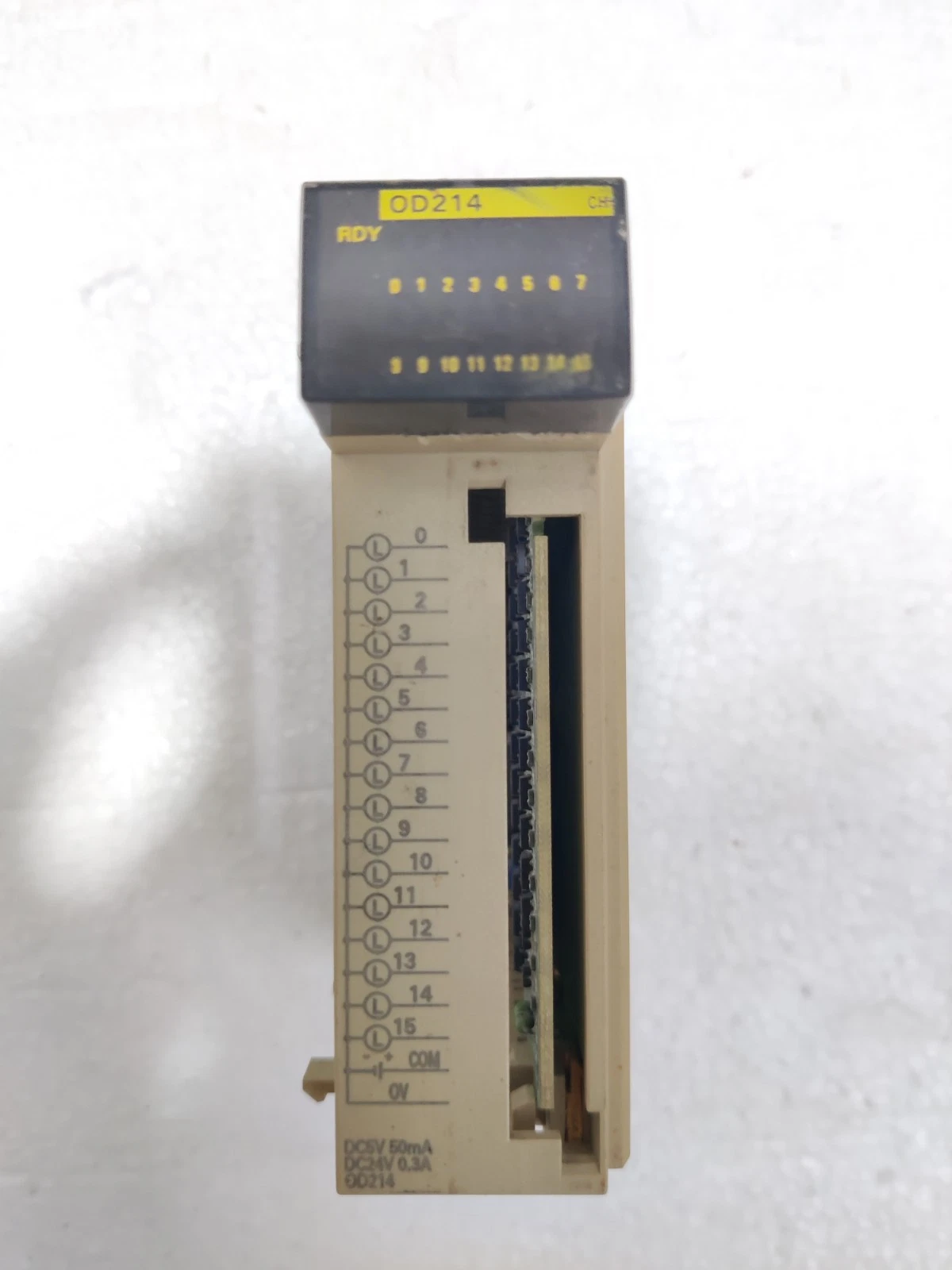

The Omron CQM1-OD214 is a high-density Transistor Output Module designed for the CQM1 and CQM1H Series Programmable Logic Controllers (PLCs). This module provides 16 NPN (Sinking) transistor outputs, allowing for high-speed switching of DC loads such as solenoid valves, auxiliary relays, and indicator lamps. As a Used Working unit, this module is an excellent choice for maintaining legacy Omron control systems, offering a reliable interface between the PLC's CPU and various field actuators.

Key Features

• High-Density Output: Features 16 independent output points, enabling the control of multiple devices while occupying only a single slot on the PLC backplane.
• NPN Transistor Logic: Designed for sinking (NPN) configurations, suitable for 24V DC switching applications with a common negative return.
• Fast Response Time: Transistor-based switching offers significantly faster turn-on and turn-off times compared to traditional relay outputs, making it ideal for precision timing tasks.
• Optical Isolation: Provides 2.5 kV of optocoupler isolation between the internal PLC logic and the external field wiring, protecting the CPU from electrical noise and voltage spikes.
• Removable Terminal Block: Equipped with a detachable screw terminal block, allowing for quick module replacement without the need to disconnect individual field wires.
• LED Status Indicators: Features 16 front-panel LEDs that provide real-time visual confirmation of each output channel's status, simplifying on-site troubleshooting.

Item Condition (Used Working)

• Functional Status: Used Working. This module has been professionally bench-tested. Each of the 16 output channels has been verified for correct switching and current handling capabilities.

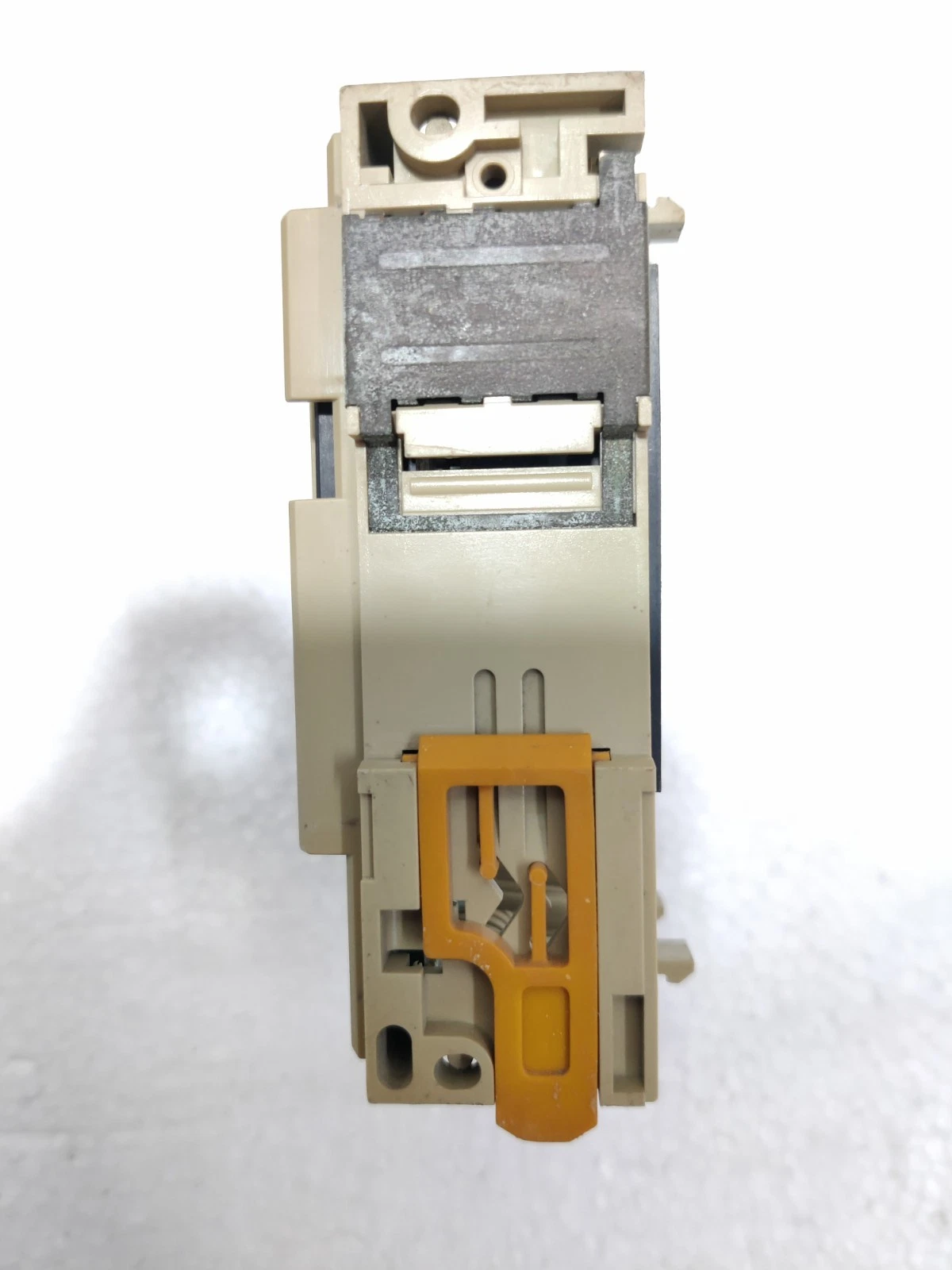

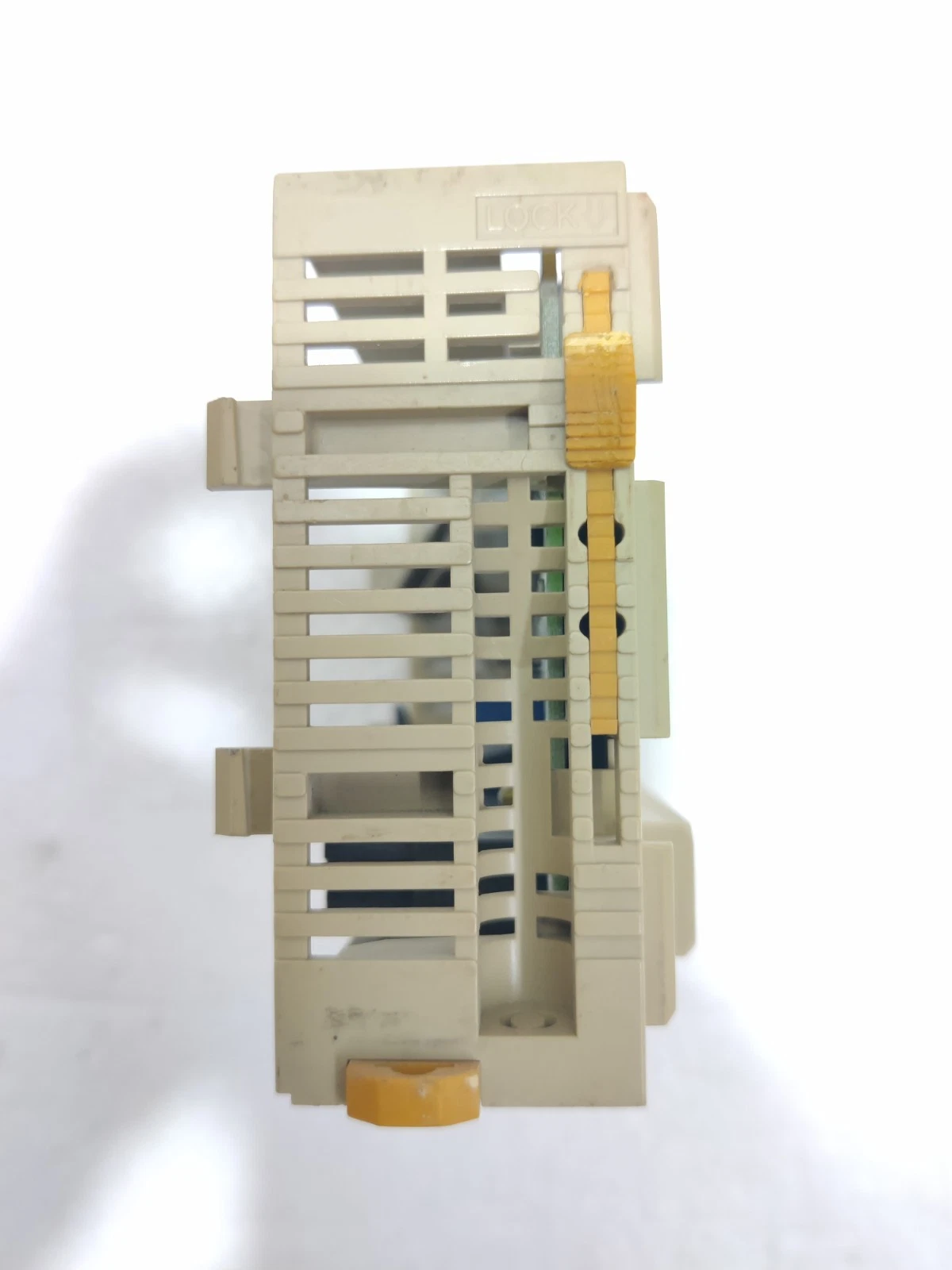

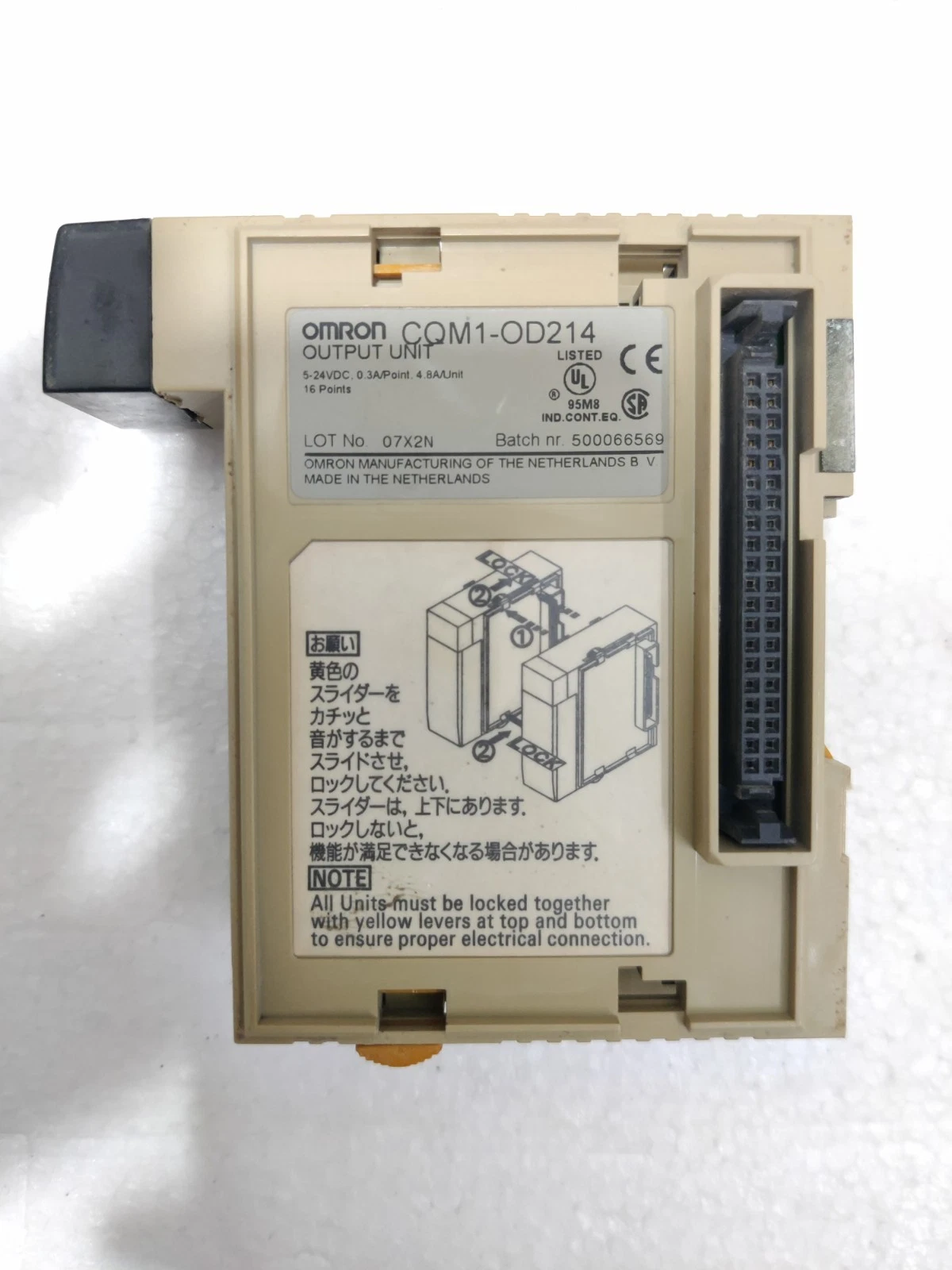

• Physical State: Clean industrial condition. The plastic housing and locking tabs are intact. The removable terminal block is included and shows no signs of terminal damage or arcing.

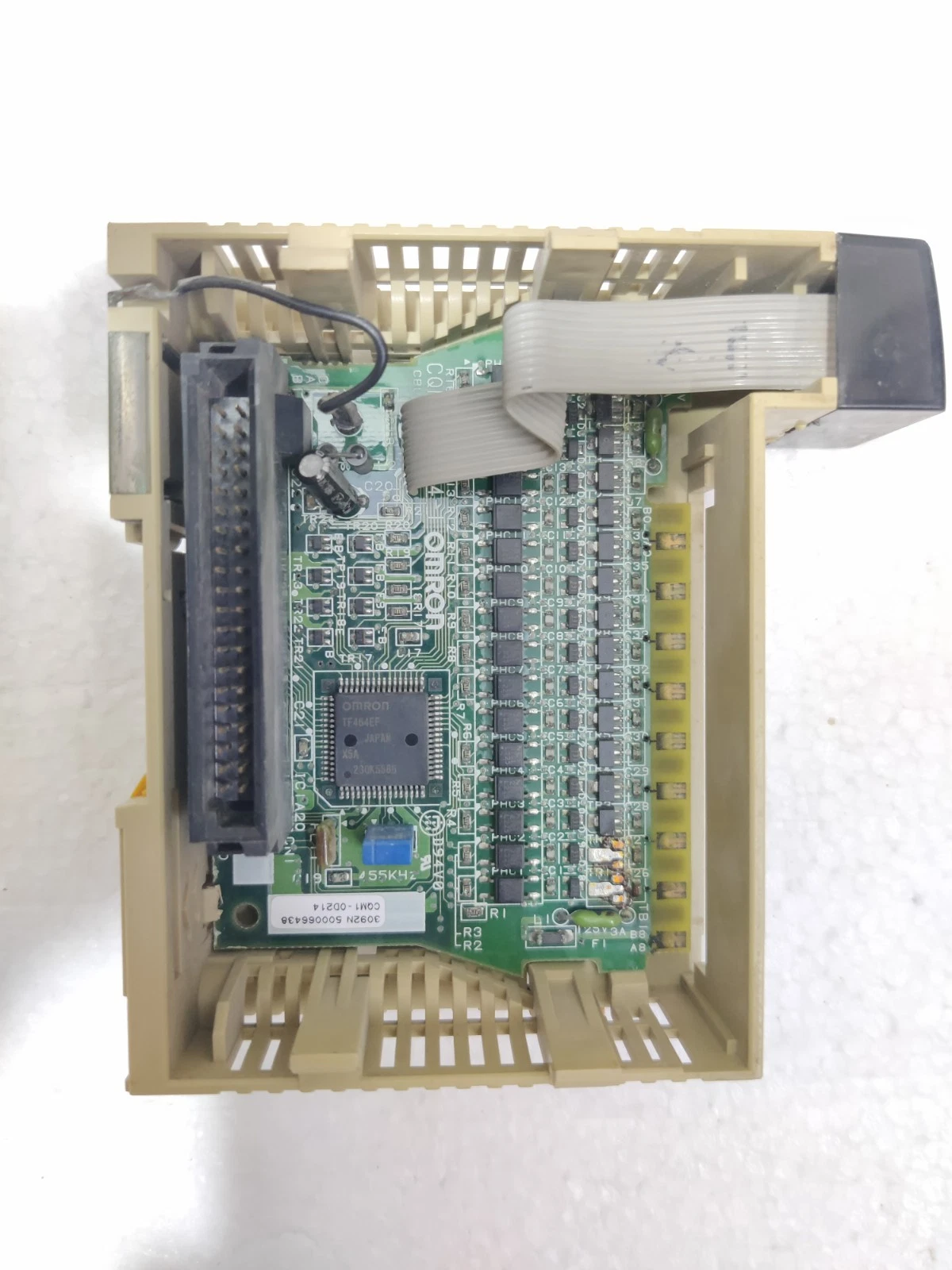

• Technical Integrity: The internal optocouplers and transistors are fully operational. The unit has been cleared of any industrial debris and has been handled in an ESD-safe environment.
• Note: Professional installation is recommended. Please ensure your external power supply matches the 24V DC requirements of the NPN output circuit.

Package Includes

1. 1 x Omron CQM1-OD214 Transistor Output Module
2. 1 x Removable Terminal Block (Attached)
