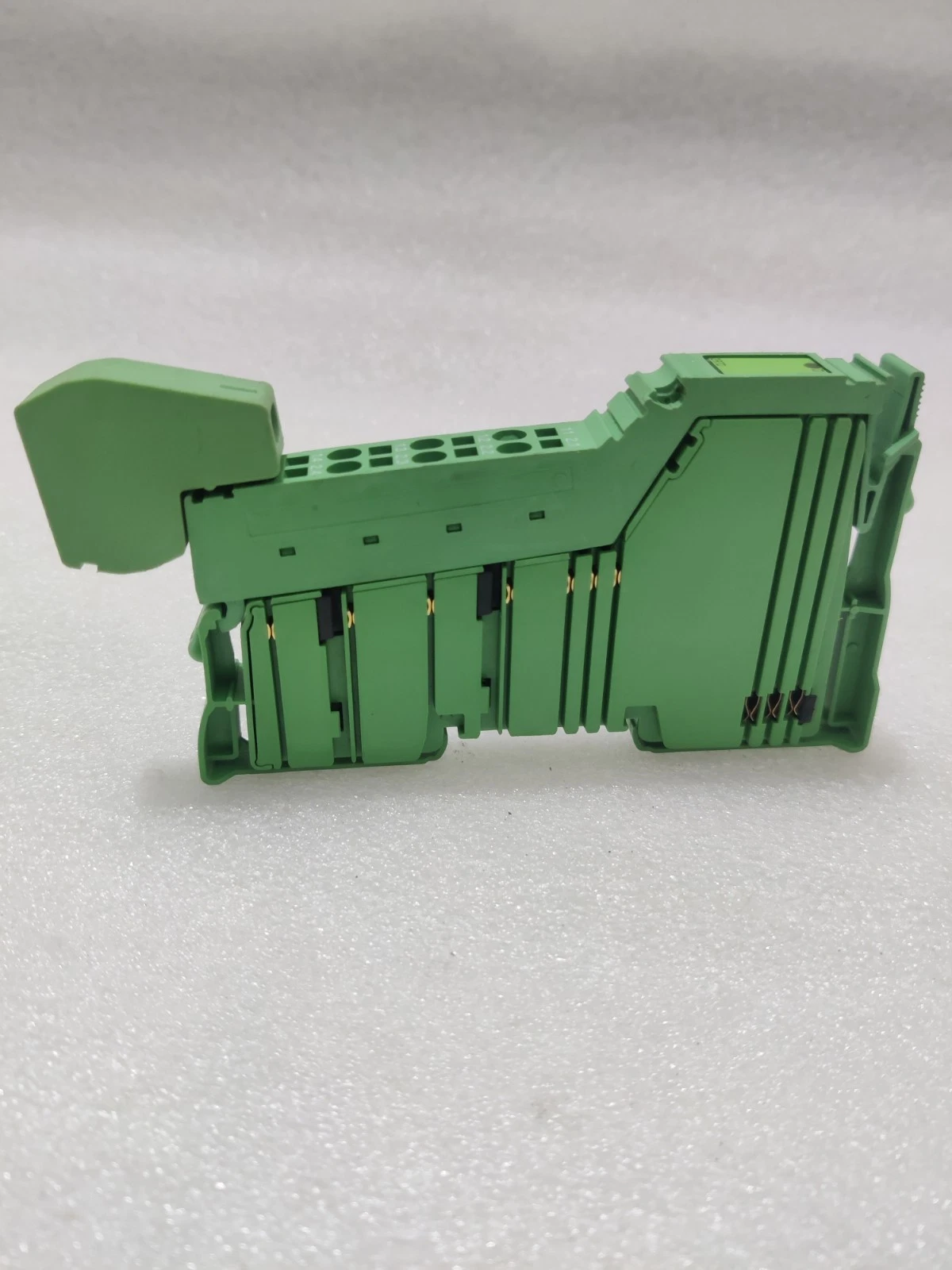

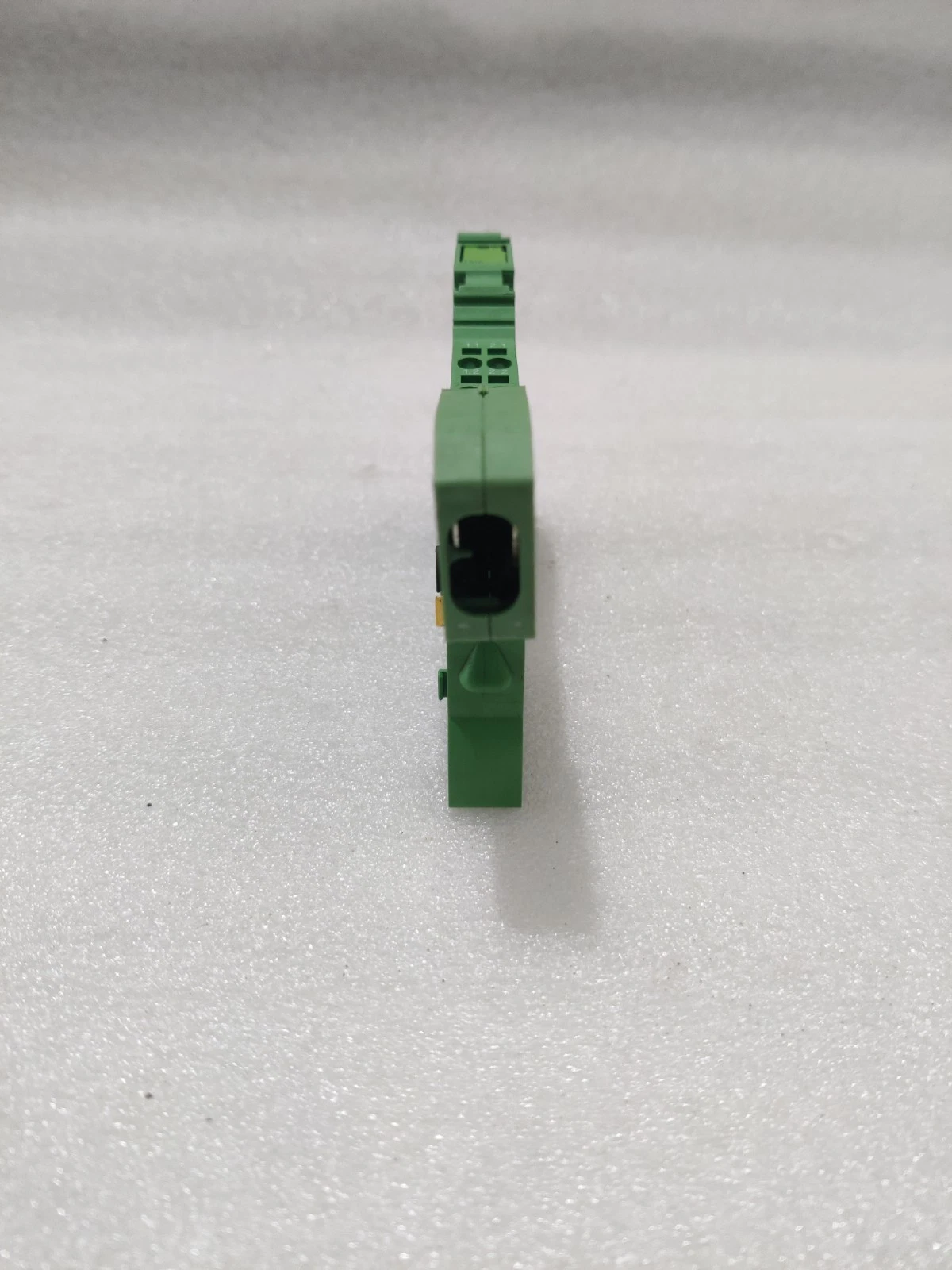

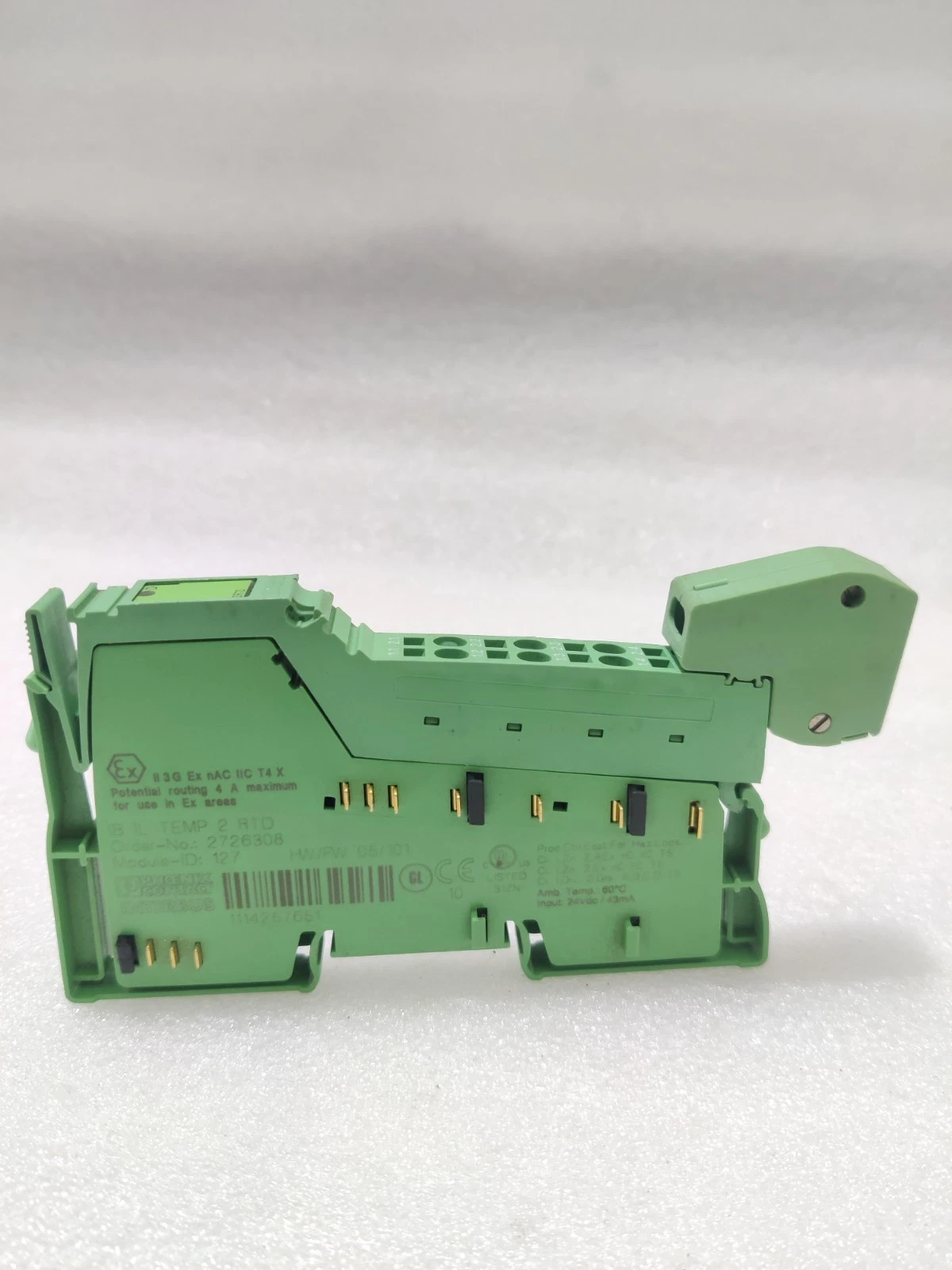

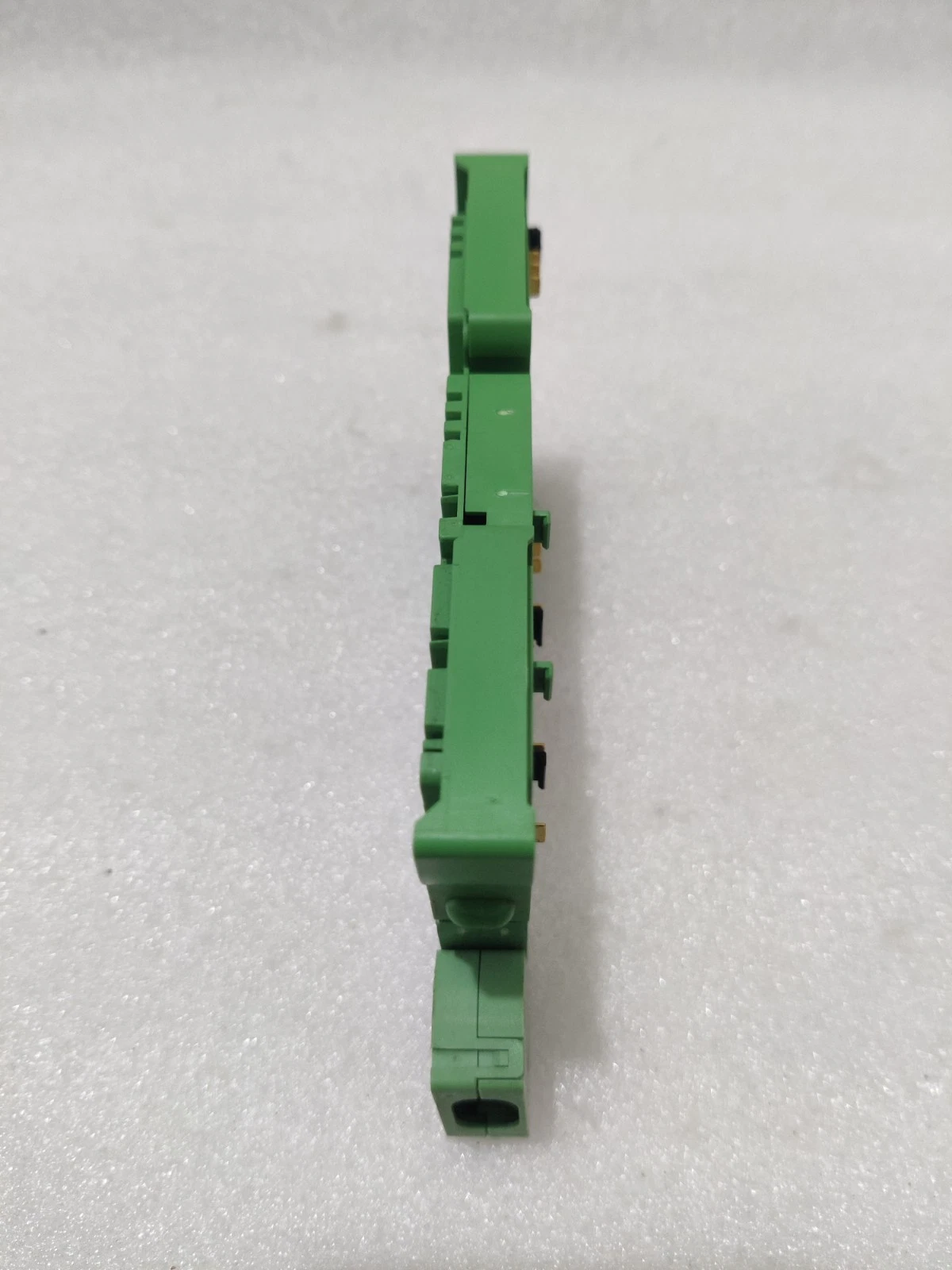

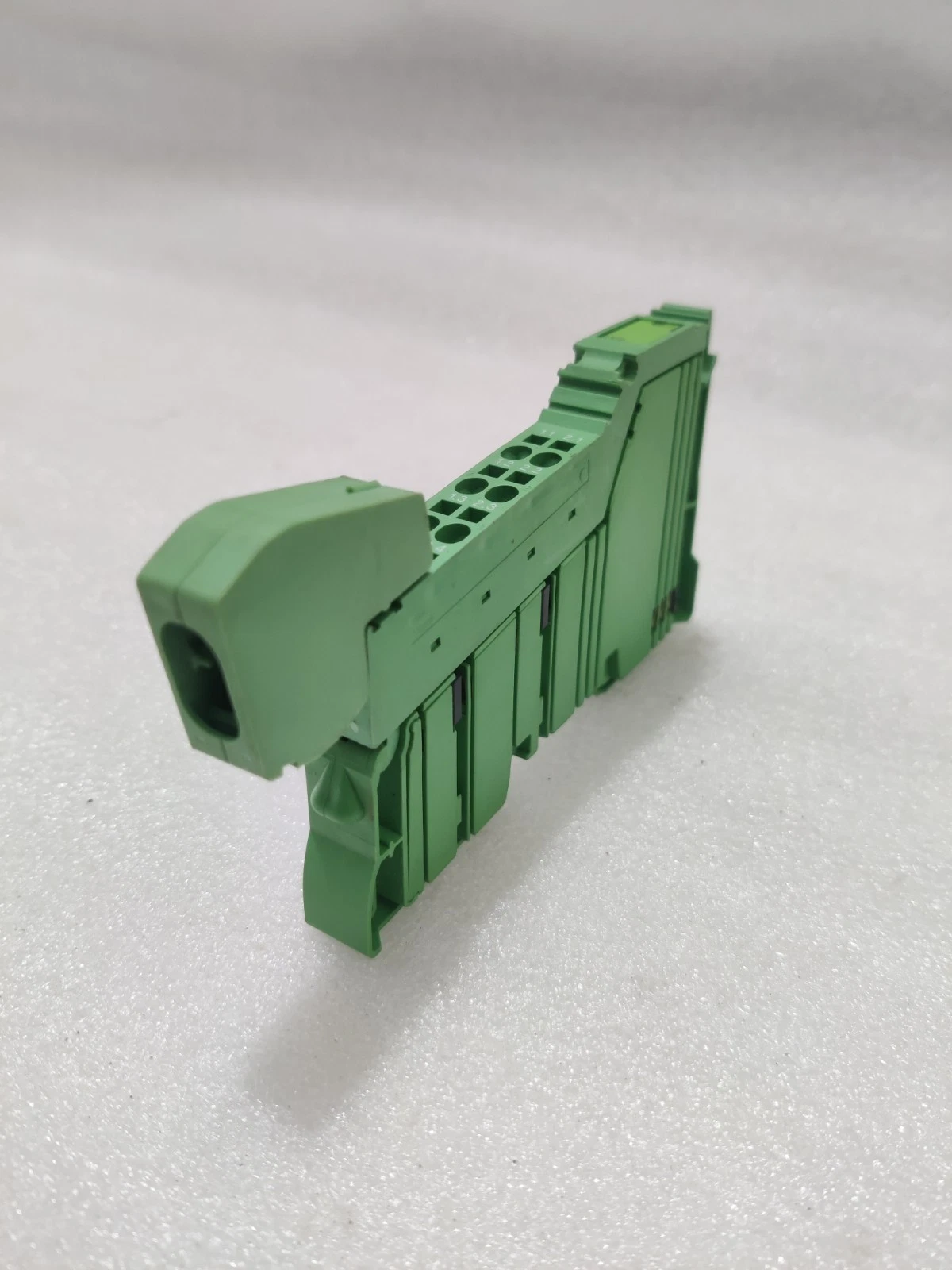

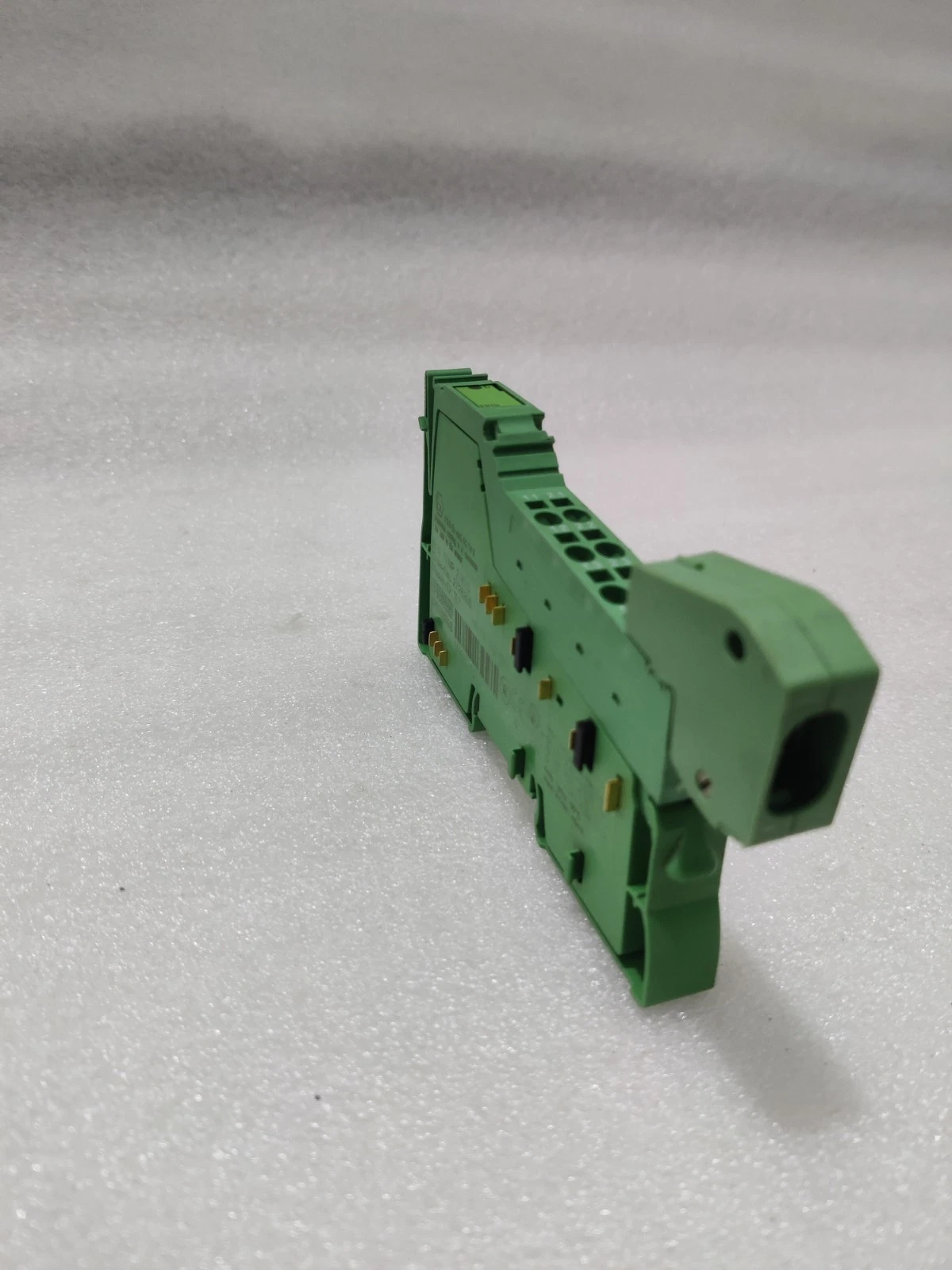

PHOENIX CONTACT 2726308 (IB IL TEMP 2 RTD) Used Working Temperature Module

Product Overview

The Phoenix Contact 2726308 (IB IL TEMP 2 RTD) is a high-precision Inline Temperature Measurement Terminal designed for the acquisition of signals from resistance temperature detectors (RTDs). This module is a core component of the Phoenix Contact Inline automation system, providing two independent channels for connecting 2-wire, 3-wire, or 4-wire sensors. As a Used Working unit, it offers a reliable and cost-effective solution for monitoring industrial thermal processes with high accuracy and stability.

Key Features

• Dual-Channel Input: Supports two independent temperature sensors per module, maximizing density within an Inline station.
• Universal RTD Compatibility: Compatible with a wide range of standard sensors, including Pt100, Pt1000, Ni100, and Ni1000, as well as various linear resistors.
• Flexible Connection Technology: Can be wired using 2, 3, or 4-wire methods, allowing for lead-resistance compensation and high-precision measurements over long distances.
• High Resolution: Features 16-bit analog-to-digital conversion, providing fine-grained temperature data for sensitive process control.
• Internal Signal Processing: Automatically linearizes sensor characteristics and provides temperature values in Celsius, Fahrenheit, or ohms directly to the controller.
• Diagnostic Integrity: Equipped with front-panel LEDs for "Bus" and "Error" status, enabling quick detection of sensor wire breaks or short circuits.

Item Condition (Used Working)

• Functional Status: Used Working. This terminal has been professionally removed from an active Inline system. Both RTD input channels have been tested using a simulator to verify accurate temperature reading and communication with the bus coupler.
• Physical State: Clean industrial condition. The electrical bridge contacts and the housing latching mechanism are fully functional.
• Technical Integrity: All internal calibration parameters are intact. The module is ready to be added to your current Inline terminal string and configured via PC Worx or other compatible engineering software.
• Note: Professional installation is required. Ensure the shield connection is properly terminated to the Inline grounding rail to minimize electrical noise in low-voltage sensor signals.

Package Includes

1. 1 x Phoenix Contact 2726308 (IB IL TEMP 2 RTD) Temperature Terminal
2. 2 x Inline Connector Plugs (Attached)
