PHOENIX CONTACT 2861467 (IB IL AO 2/U/BP-PAC) Used Working Analog Output

Product Overview

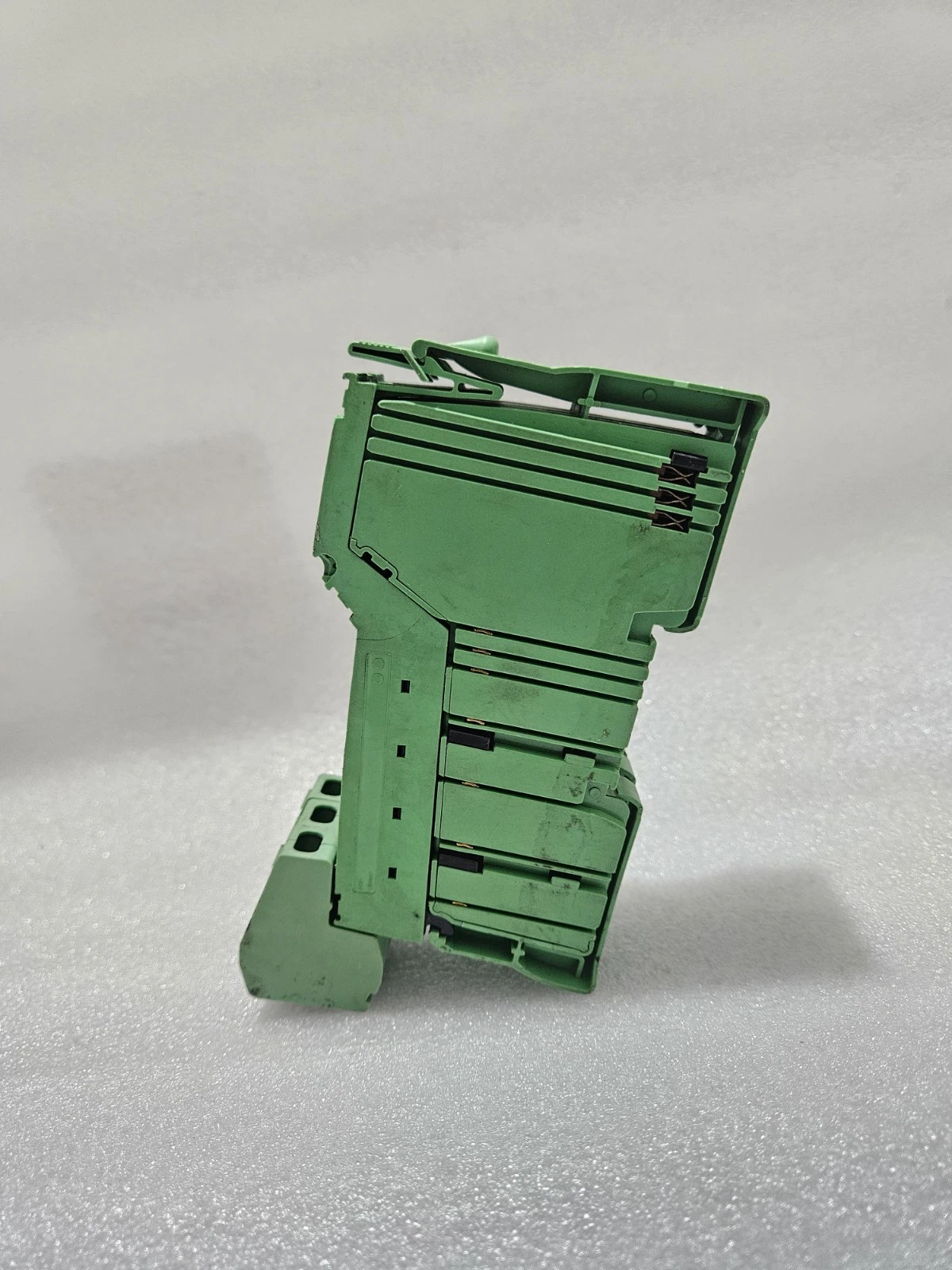

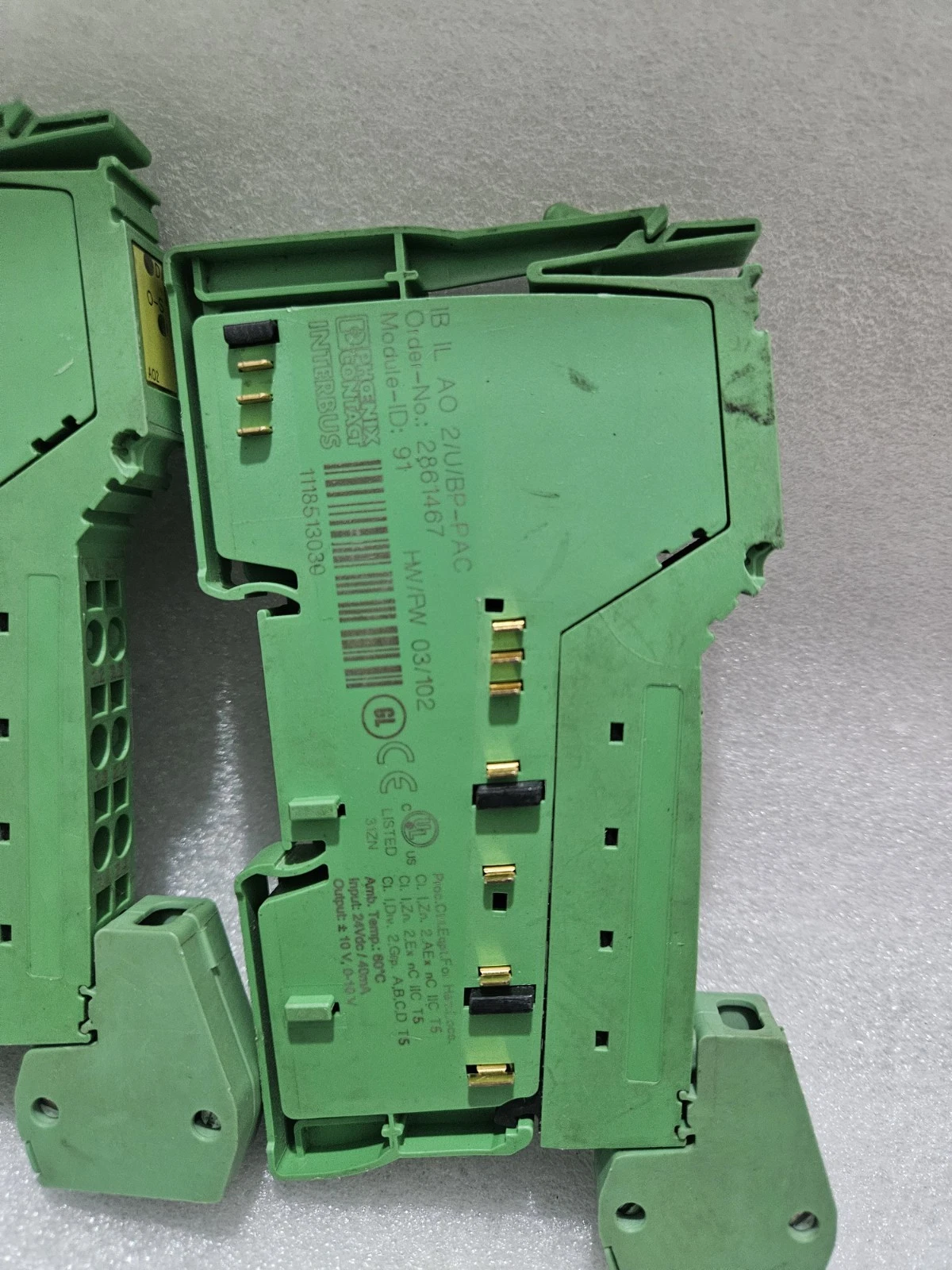

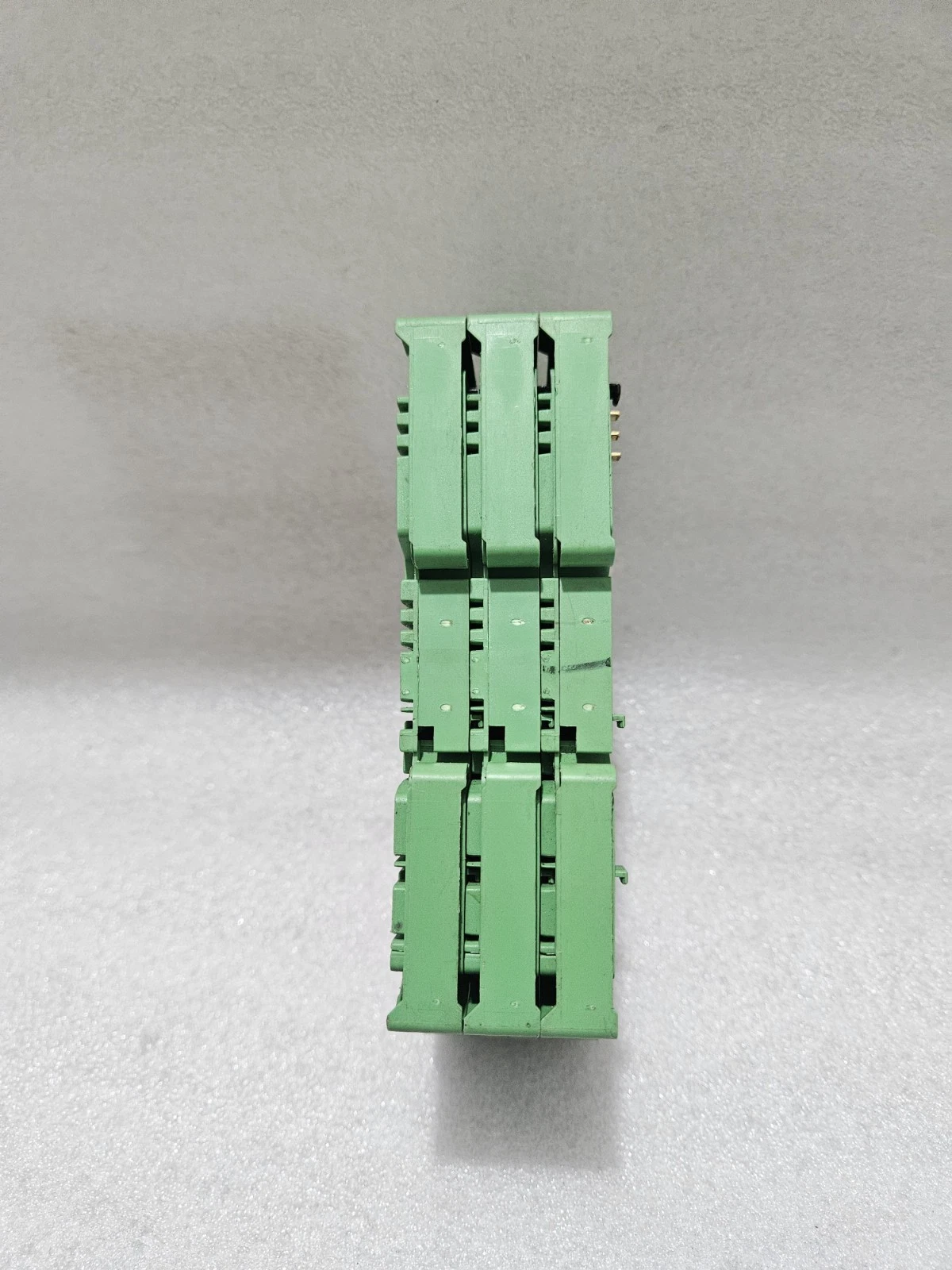

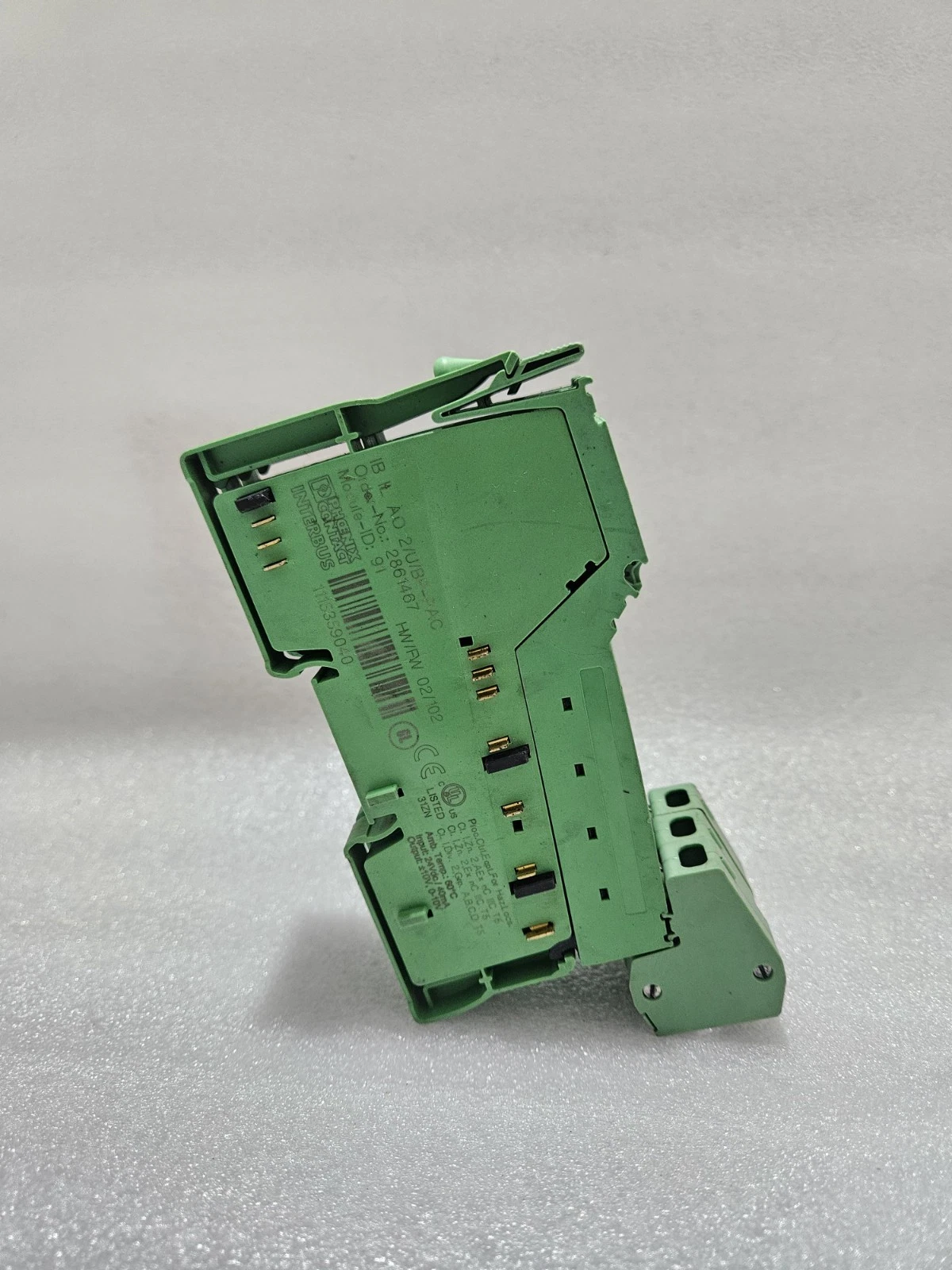

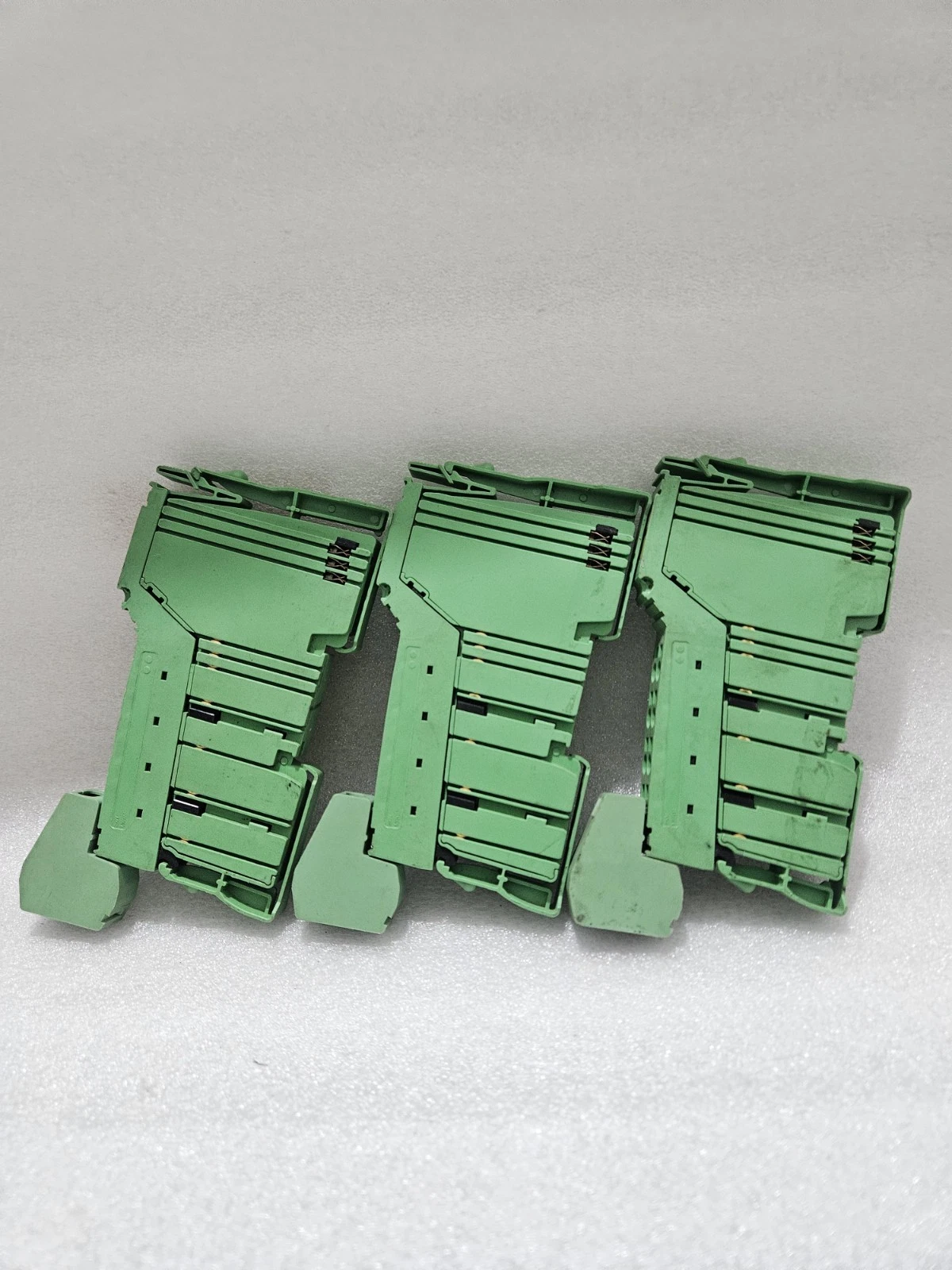

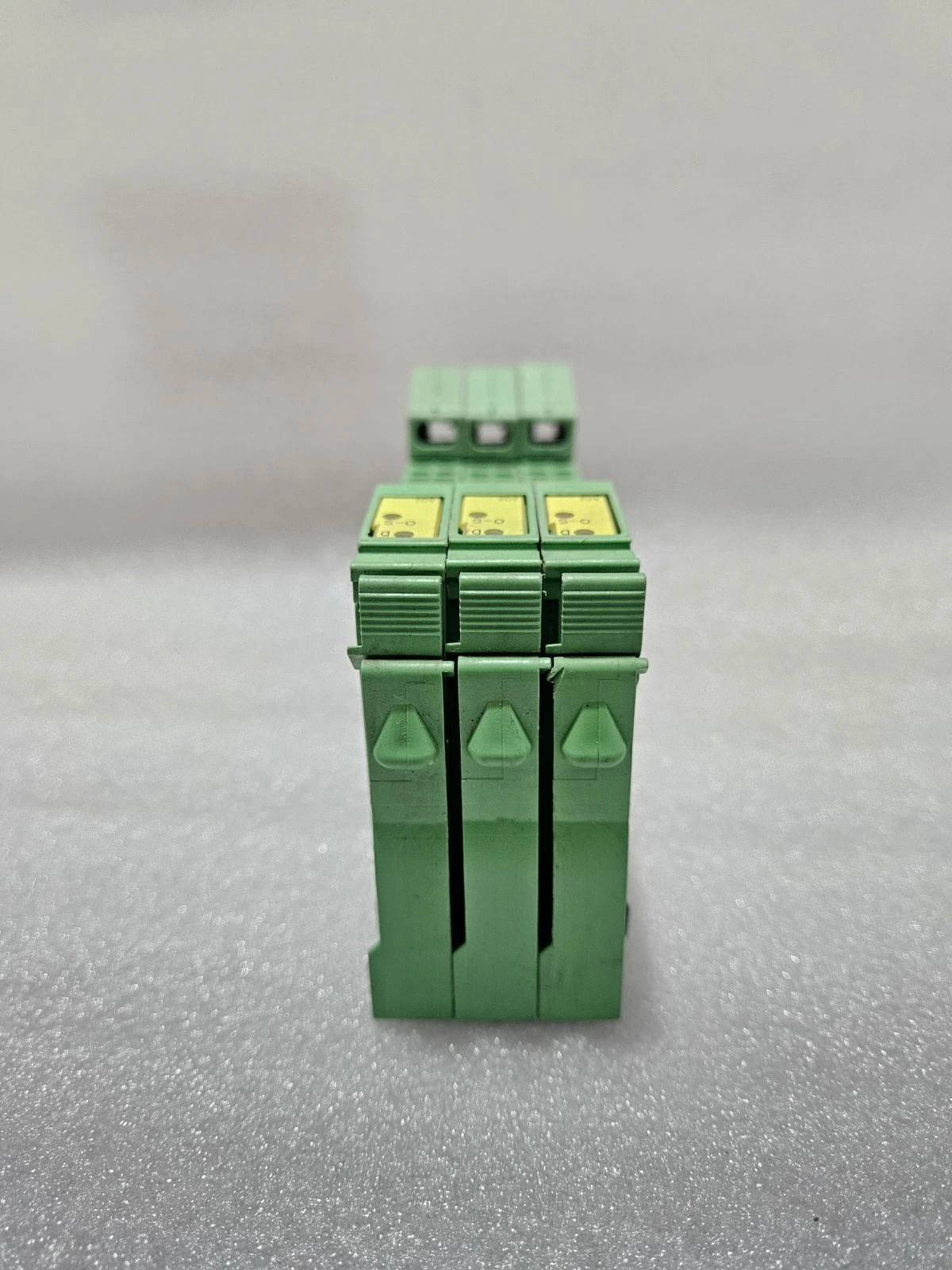

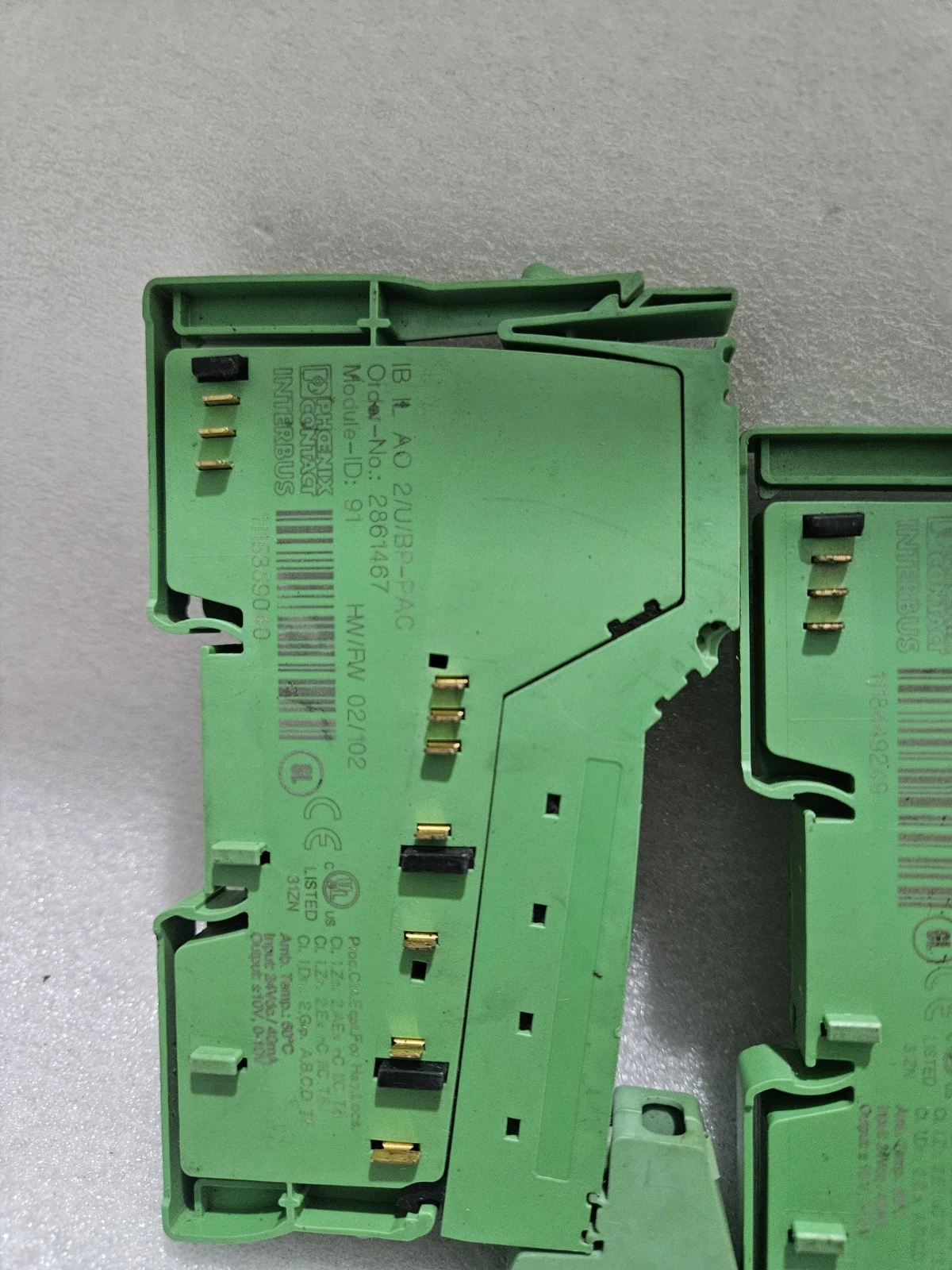

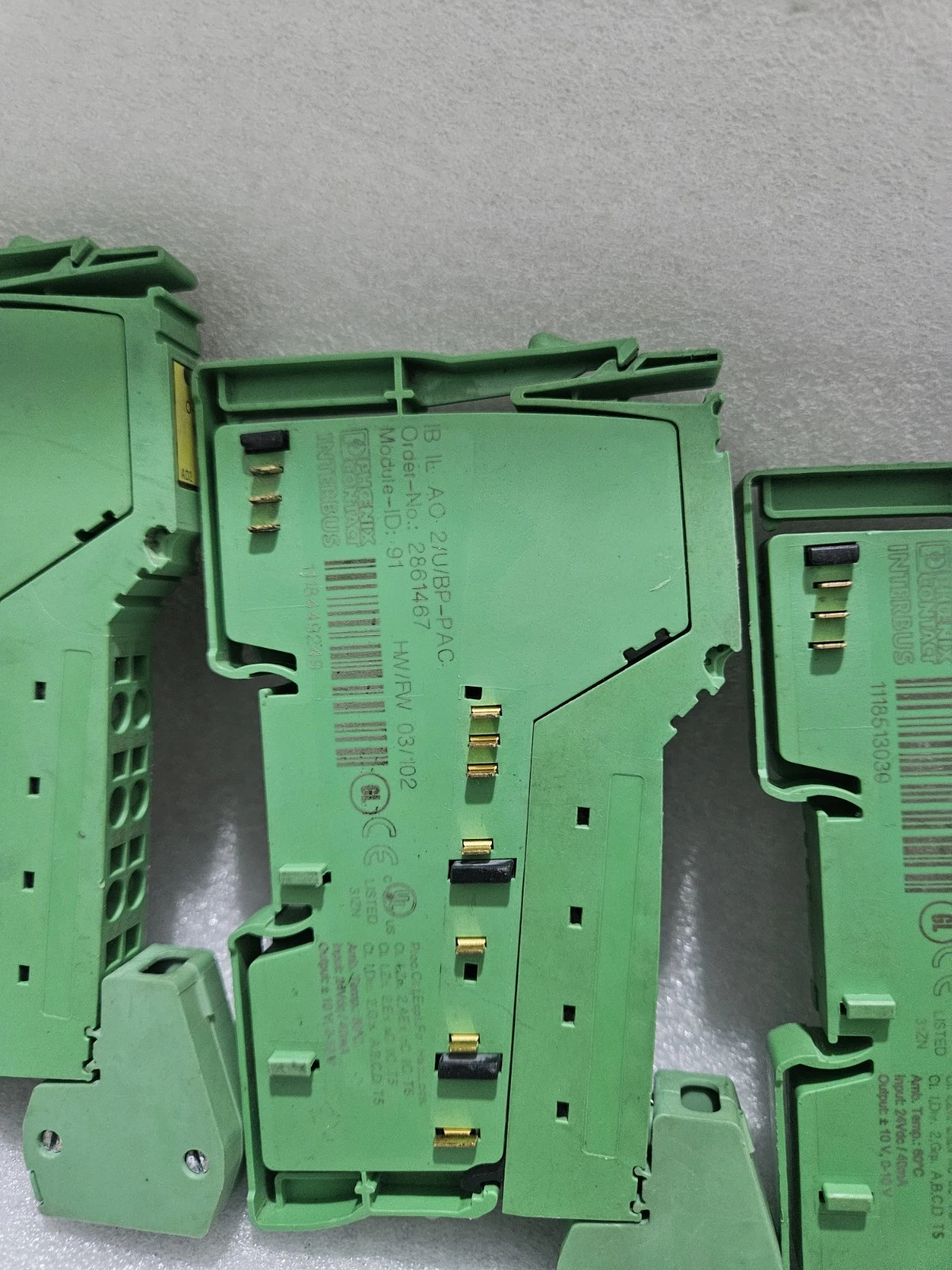

This lot of 3 units features the Phoenix Contact 2861467 (IB IL AO 2/U/BP-PAC), a high-precision Analog Output Terminal from the Inline automation system. Each module provides 2 independent analog output channels designed to deliver high-resolution voltage signals. These terminals are essential for controlling proportional valves, frequency inverters, and other actuators that require precise variable voltage inputs. As Used Working units, this lot is an excellent solution for expanding or maintaining Phoenix Contact Inline stations, offering seamless integration and reliable signal processing in a modular, space-saving format.

Key Features

• Dual Analog Output Channels: Each module provides 2 independently configurable voltage outputs, allowing for the simultaneous control of multiple field devices.
• Versatile Voltage Ranges: Supports standard industrial voltage signals, including 0V to 10V and bipolar ranges such as -10V to +10V, providing flexibility for diverse application requirements.
• High-Resolution Accuracy: Features 13-bit resolution (including sign), ensuring smooth and precise control over the entire output range with minimal signal ripple.
• Inline Modular Architecture: Designed for effortless integration into any Phoenix Contact Inline station, drawing power and data directly from the internal local bus.
• Short-Circuit Protection: The outputs are electronically protected against short circuits, safeguarding the module and the connected field devices from wiring faults.
• Diagnostic LEDs: Equipped with front-panel status indicators that provide instant feedback on the module's operating state and local bus communication.
• Galvanic Isolation: Features robust electrical isolation between the internal logic and the analog output circuits to prevent ground loops and enhance system stability.

Item Condition (Used Working)

• Functional Status: Used Working. All 3 modules in this lot have been professionally bench-tested within an Inline assembly. The output voltage levels have been verified for accuracy across both channels on every unit.
• Physical State: Clean industrial condition. The plastic housings and DIN rail locking mechanisms are intact. The gold-plated K-bus contacts are clean and free of oxidation.
• Technical Integrity: The internal Digital-to-Analog Converters (DAC) are functioning within original factory specifications. All units have been handled in an ESD-safe environment.
• Note: Professional installation is recommended. Please note that these modules are sold as the base units; ensure you have the appropriate Inline connector plugs for your field wiring.

Package Includes

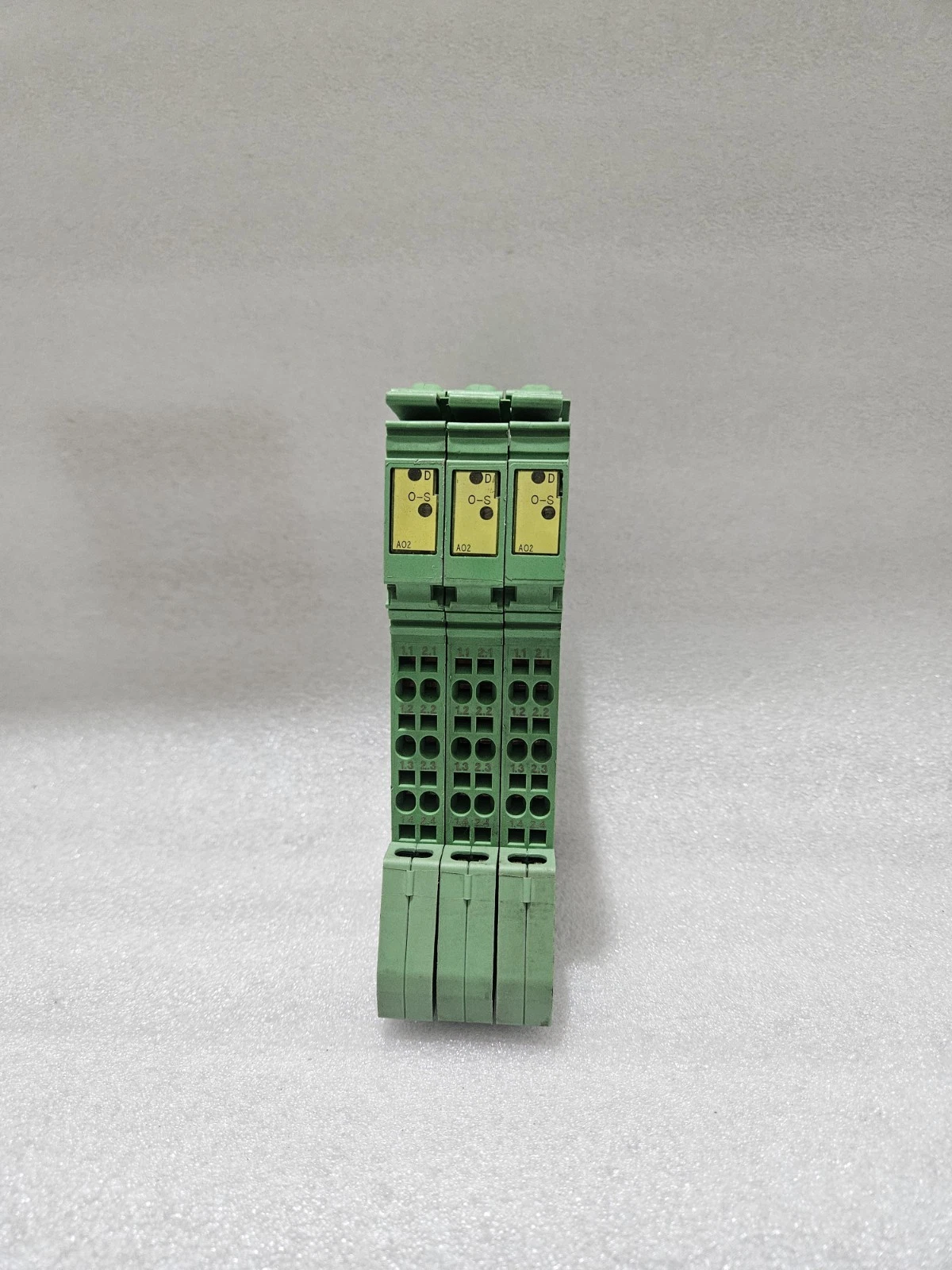

1. 3 x Phoenix Contact 2861467 (IB IL AO 2/U/BP-PAC) Analog Output Modules
