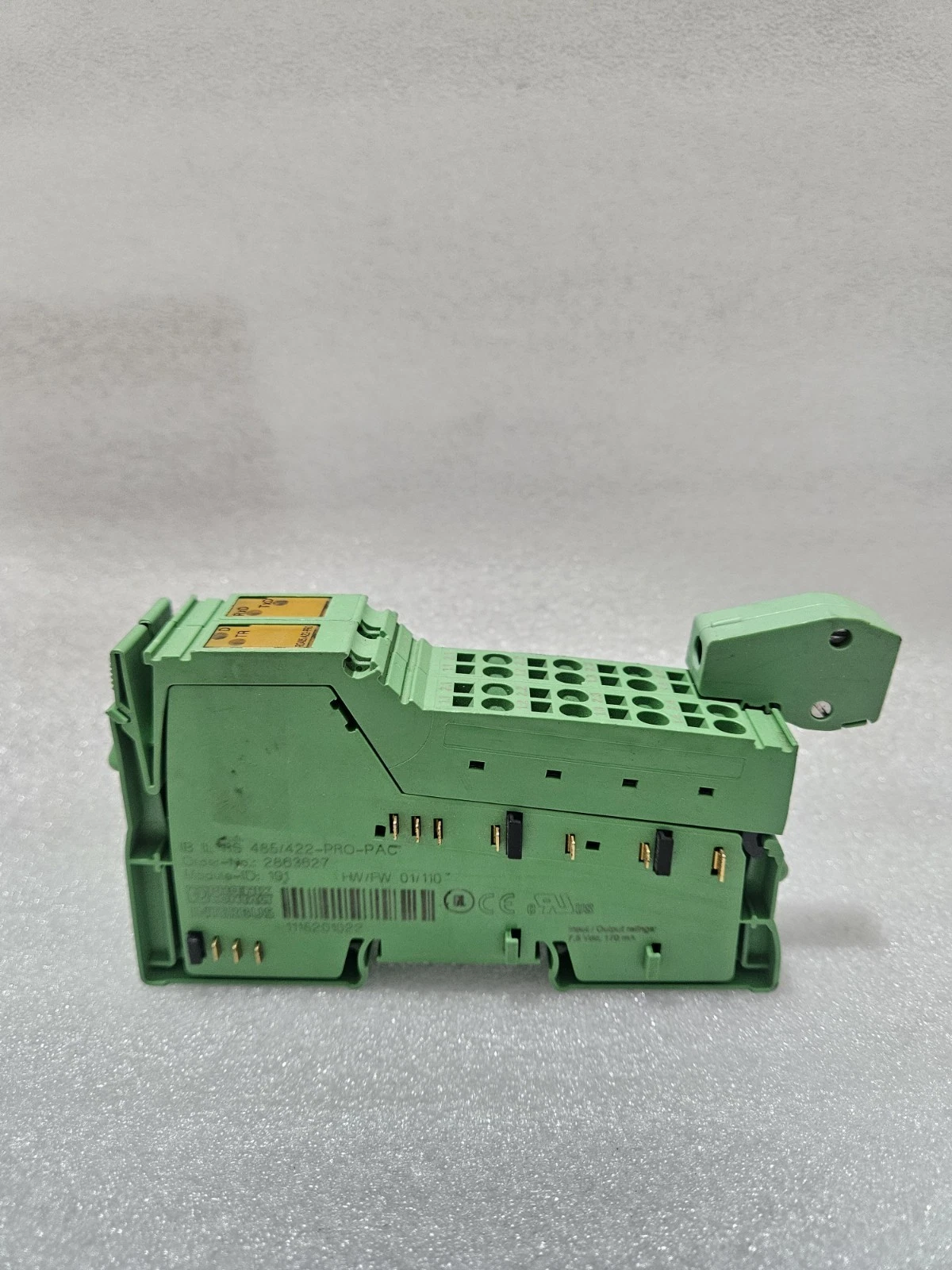

PHOENIX CONTACT IB IL RS 485/422-PRO-PAC Used Working Communication Module

Product Overview

The Phoenix Contact IB IL RS 485/422-PRO-PAC is a high-performance Inline Communication Terminal, specifically engineered for seamless serial data exchange within an Inline station. This module provides a versatile interface for RS-485 and RS-422 communication, enabling your PLC to interact with various intelligent field devices, such as frequency inverters, barcode scanners, and measuring instruments. As a Used Working unit, it offers a reliable and cost-effective way to integrate serial peripherals into your automation network while maintaining the high signal integrity expected from Phoenix Contact hardware.

Key Features

• Flexible Serial Interface: Supports both RS-485 (2-wire/4-wire) and RS-422 standards, allowing for long-distance data transmission and multi-drop network configurations.
• Programmable Parameters: Protocol parameters such as baud rate (up to 38.4 kbps), parity, and stop bits are easily configured via the bus system.
• Integrated Data Buffering: Features internal receive and transmit buffers to ensure smooth data flow even during high bus traffic, preventing data loss.
• Process Image Mapping: Maps serial data directly into the controller's process image, simplifying the programming of read/write commands.

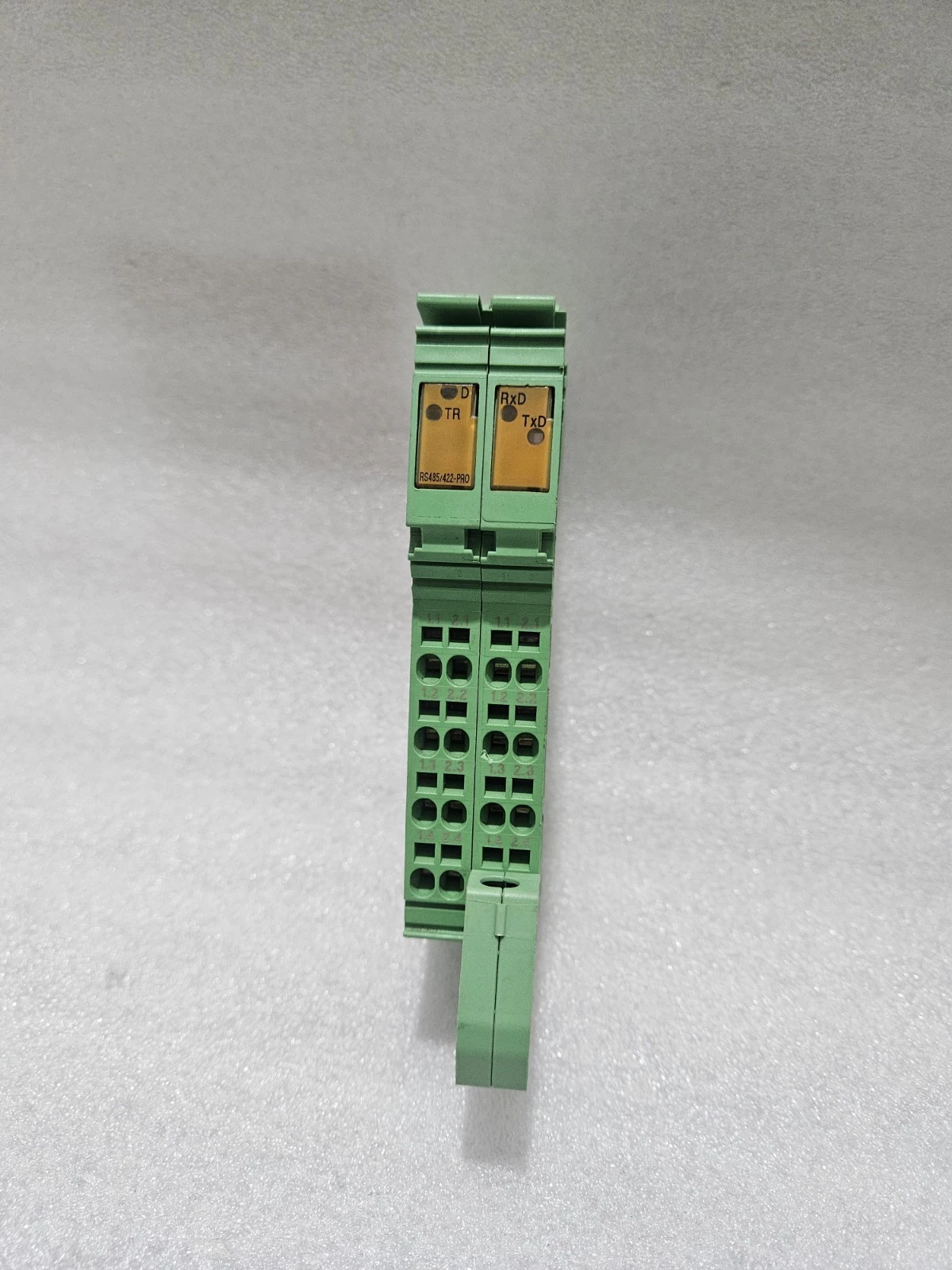

• Diagnostic LEDs: Equipped with front-panel diagnostic indicators for bus status and data transmission activity (Tx/Rx), facilitating rapid troubleshooting.
• Compact Inline Design: Plugs directly into the Inline station without additional wiring for the local bus, saving significant space and assembly time.

Item Condition (Used Working)

• Functional Status: Used Working. This module has been professionally removed from a functional Inline station. It has been powered up, and the serial communication interface has been verified for data transmission.
• Physical State: Good industrial condition. The electrical contacts for the Inline bus are clean, and the housing shows no signs of excessive wear.
• Technical Integrity: The internal logic is fully functional. It is ready for immediate insertion into your Inline terminal string and configuration via your master controller (e.g., PC Worx or Step 7).
• Note: Professional installation is recommended. Please ensure the terminal is properly grounded through the DIN rail to prevent serial signal interference.

Package Includes

1. 1 x Phoenix Contact IB IL RS 485/422-PRO-PAC Inline Communication Terminal
2. 1 x Integrated connector plug for serial wiring
