PHOENIX CONTACT QUINT-PS-100-240AC/24DC/10 Used Working QUINT POWER Power Supply

Product Overview

The Phoenix Contact QUINT-PS-100-240AC/24DC/10 is a high-performance, primary-switched power supply designed for universal use in industrial automation. Part of the renowned QUINT POWER generation, this unit is celebrated for its extreme reliability and advanced preventive monitoring features. It delivers a stabilized 24V DC output at 10 Amps, making it the perfect power source for PLCs, HMIs, and heavy-duty sensors. As a Used - Working unit, it provides a robust, industrial-grade power solution with the heavy-duty build quality that Phoenix Contact is known for worldwide.

Key Features

• Preventive Function Monitoring: Features an integrated DC-OK signal output and LED that warns the operator before a critical system failure occurs.
• Universal Input: Wide-range input (85V AC to 264V AC) allows the unit to be used globally without manual voltage switching.

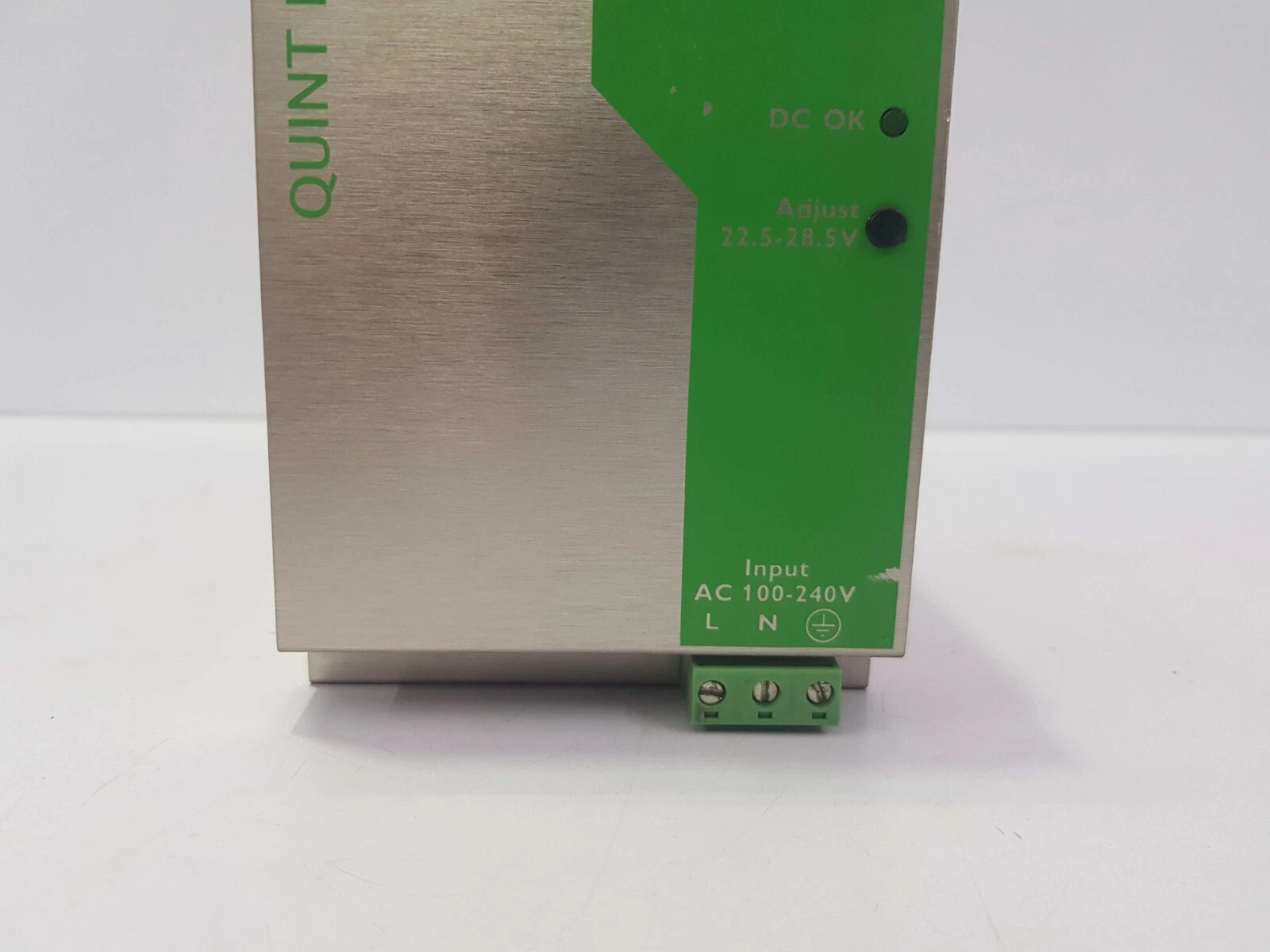

• Adjustable Output: The output voltage can be fine-tuned via a front-mounted potentiometer (typically 22.5V to 28.5V) to compensate for voltage drops in long cable runs.
• Rugged DIN Rail Mounting: Designed for quick and secure installation on standard NS 35 rails, featuring a vibration-resistant metal housing.
• High Efficiency: Engineered for low power dissipation, which reduces heat buildup inside the control cabinet.

Item Condition (Used/Working)

• Functional Status: This unit has been professionally tested under load. It maintains a stable 24V DC output and the "DC OK" status indicator is fully functional.
• Physical State: Shows standard signs of industrial use, including light scuffs on the metal casing and dust in the ventilation fins. Terminal screws are in good condition and turn freely.

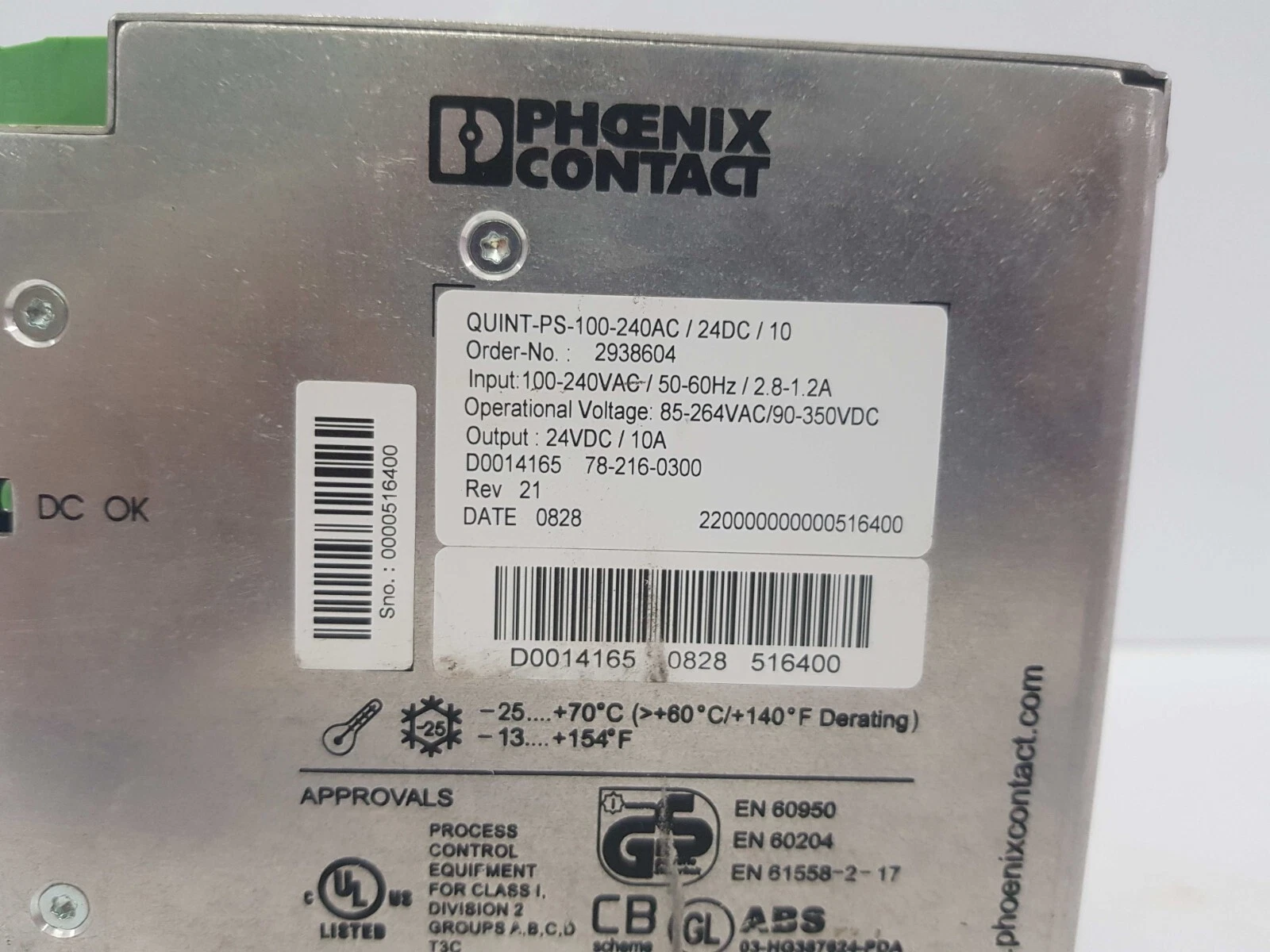

• Visual Reference: Please refer to the high-resolution images to verify the specific terminal configuration and nameplate details; the unit pictured is the exact power supply you will receive.
• Note: Ensure proper ventilation clearance (typically 50mm above/below) when installing this unit in a closed cabinet to ensure maximum service life.

Package Includes

1. 1 x Phoenix Contact QUINT-PS-100-240AC/24DC/10 Power Supply
2. Note: Includes only the unit as shown. DIN rails, wiring, or original manuals are not included.
