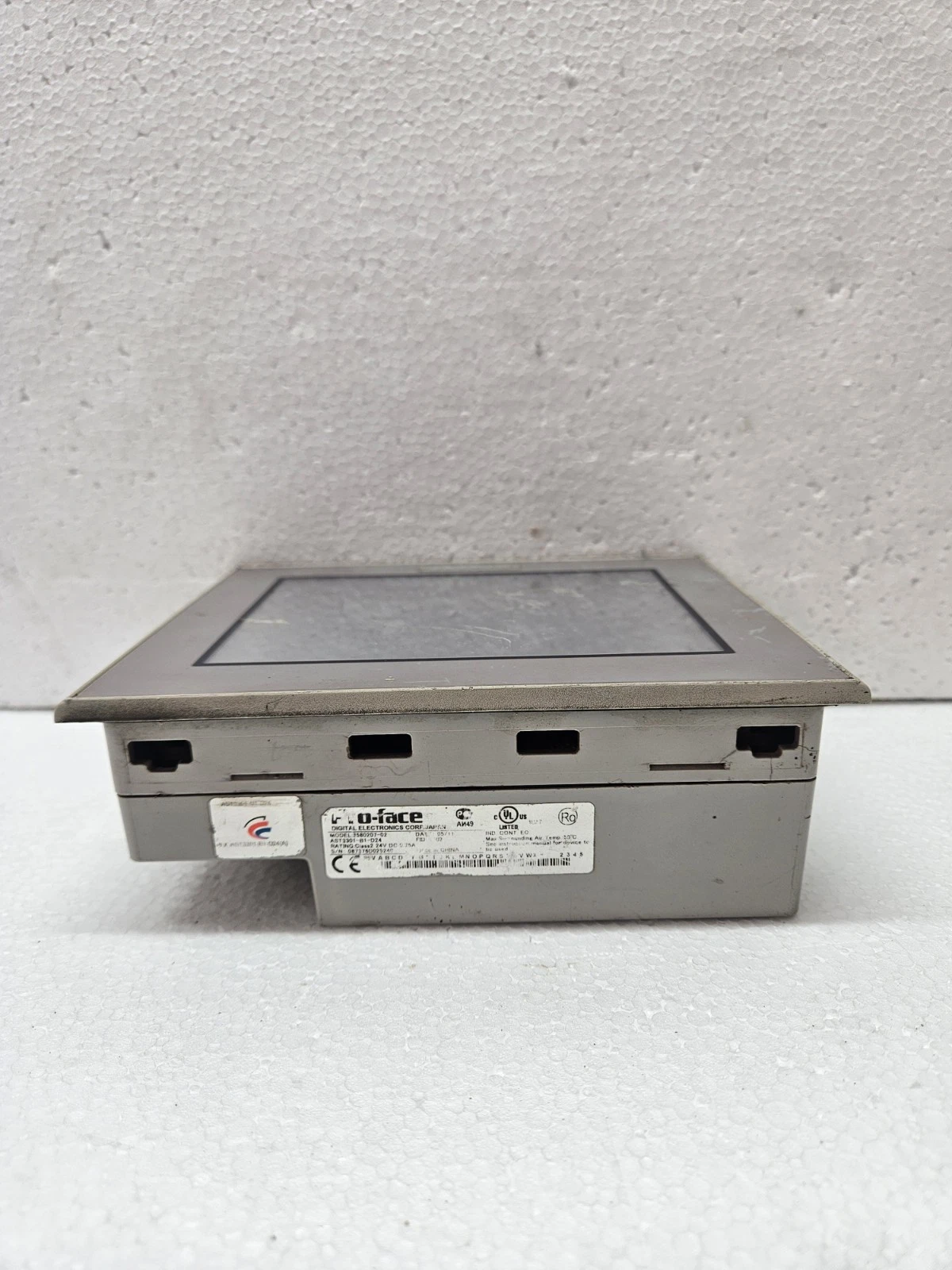

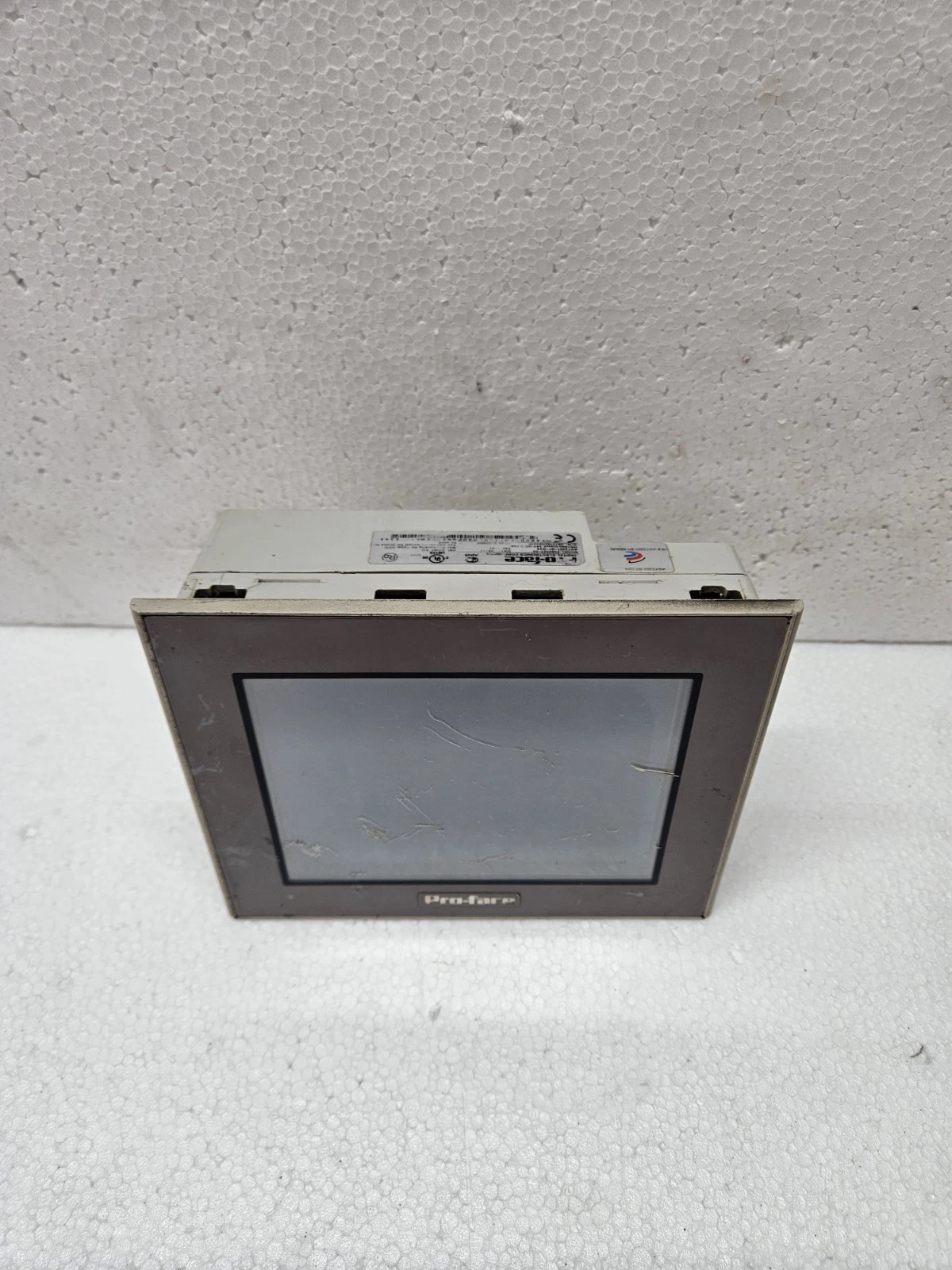

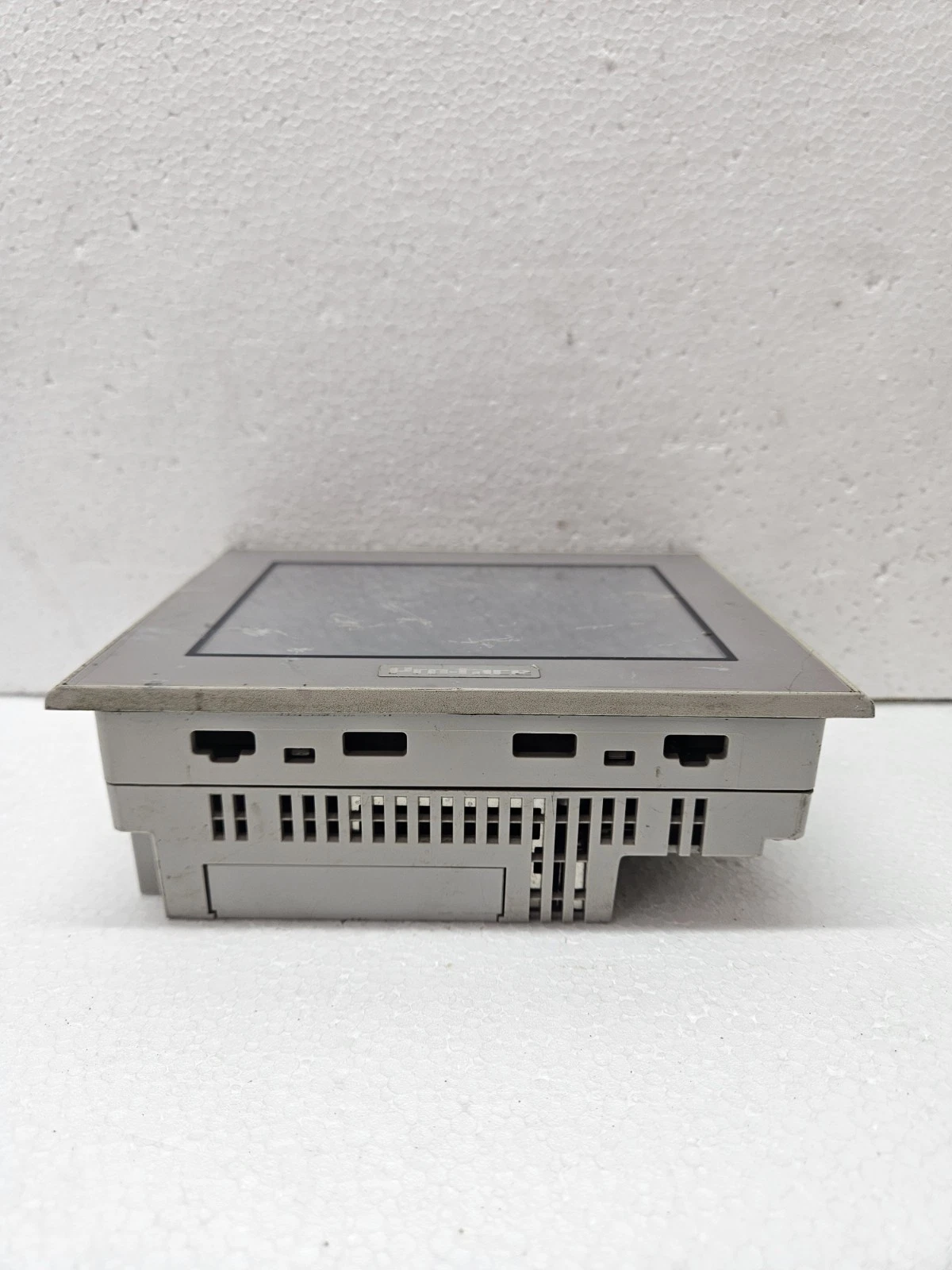

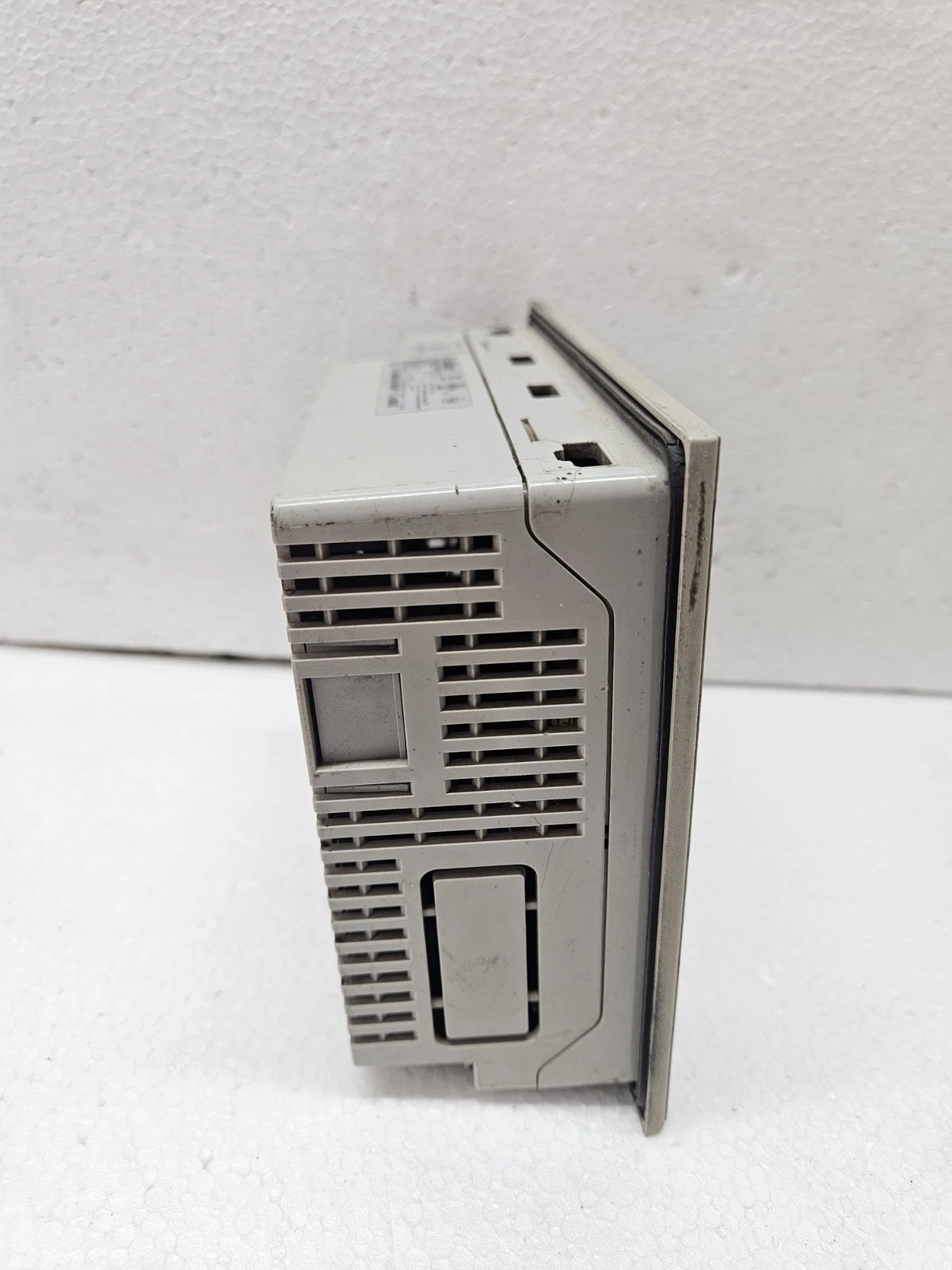

PRO-FACE AST3301-B1-D24 For Parts HMI Terminal

Product Overview

The Pro-face AST3301-B1-D24 (also known as the PFXAST3301B1D24) is a 5.8-inch STN Monochrome Touch Screen HMI designed for human-machine interface applications in industrial environments. This unit features a high-contrast display and a serial communication interface, making it a staple for legacy machinery control. This specific unit is being offered For Parts, serving as a critical resource for technicians needing internal components like the backlight inverter, the sensitive touch membrane, or the proprietary communication board to keep existing systems operational.

Key Features (General Specifications)

• 5.8-Inch Display: Features a blue-mode monochrome STN LCD with a resolution of 320 x 240 pixels.
• Compact Footprint: Ideal for small control panels or mobile machinery where space is limited.

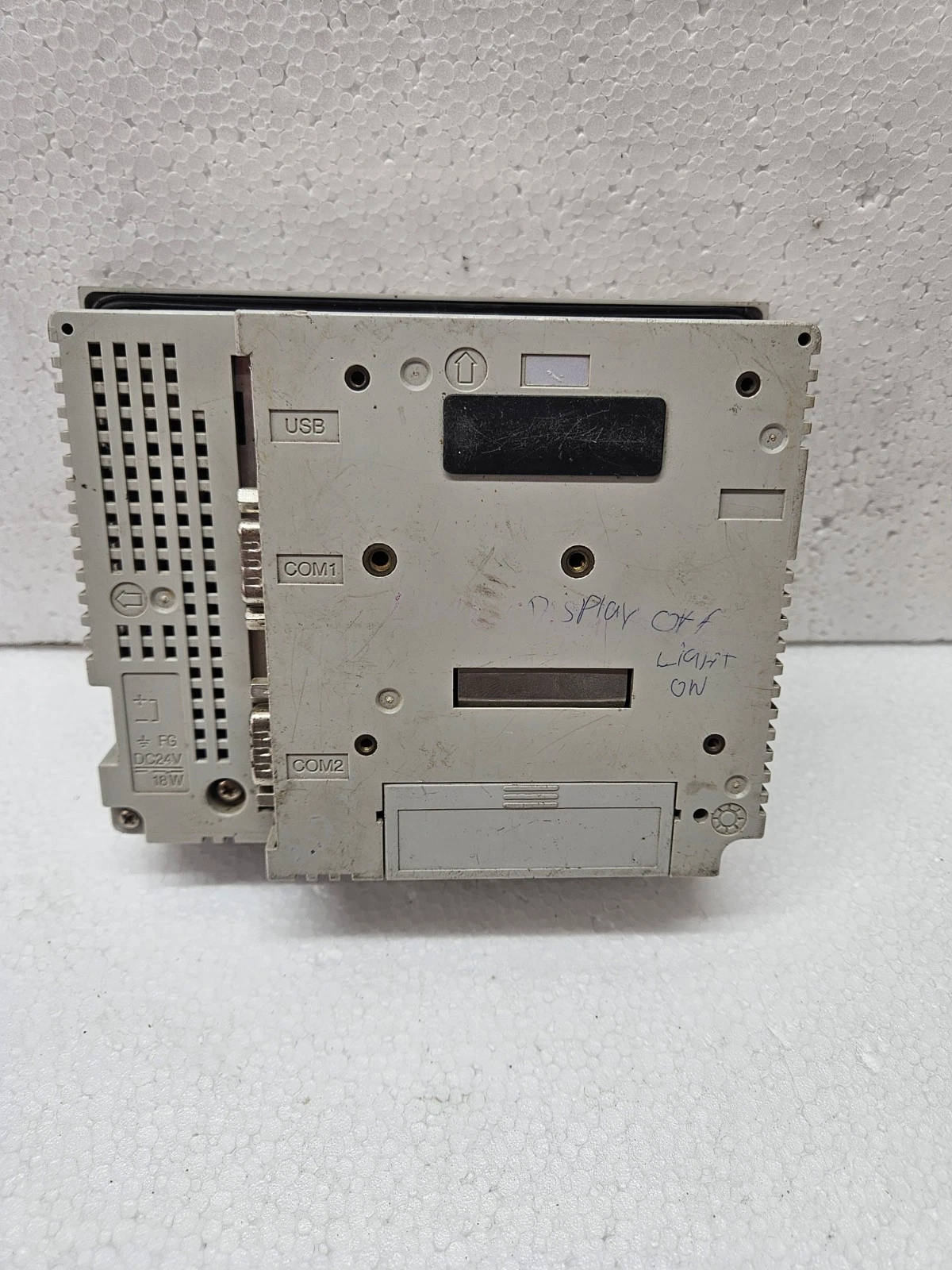

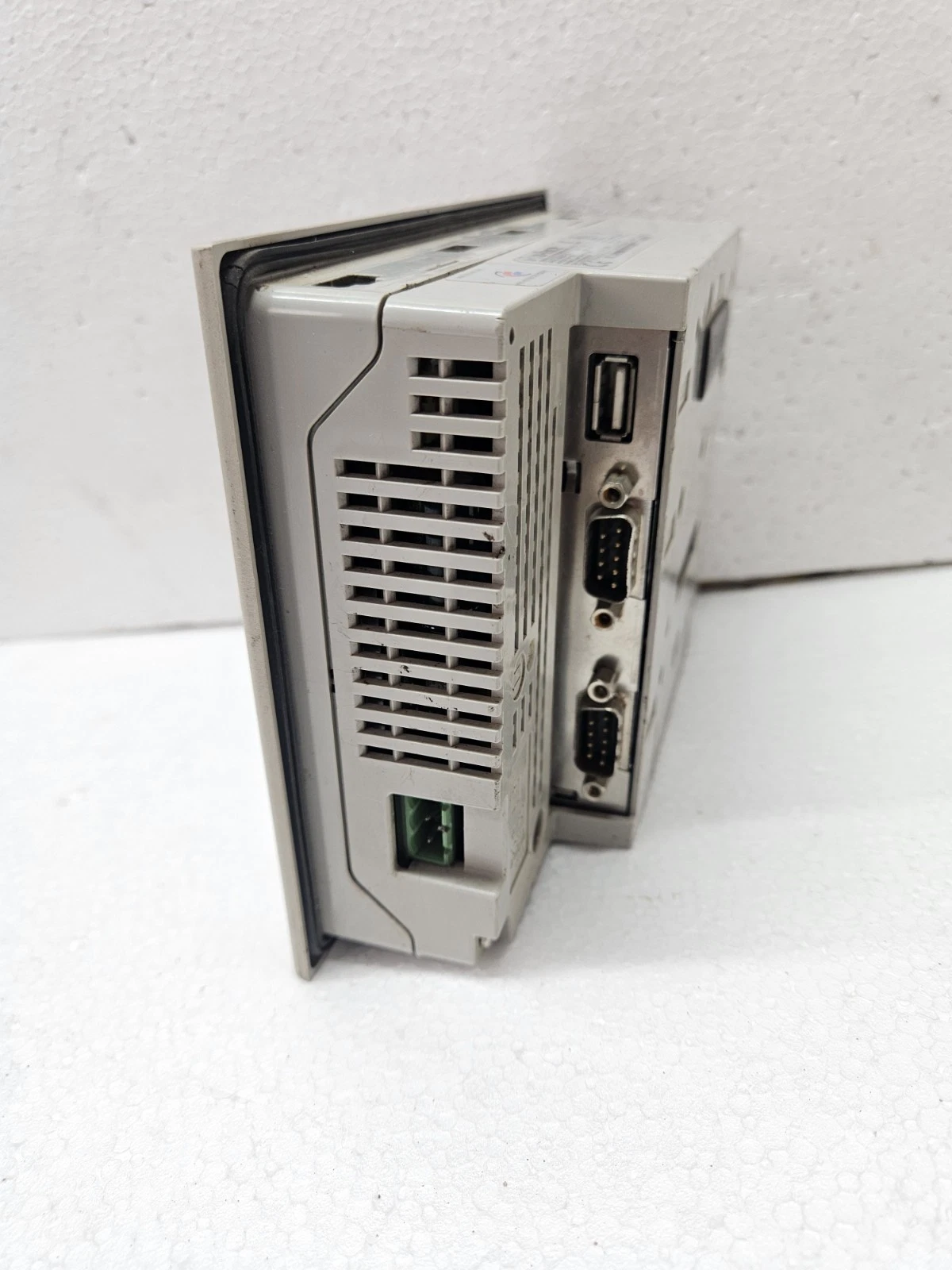

• Flexible Communication: Equipped with a 9-pin RS-232C/RS-422/485 serial port to interface with various PLC protocols.
• Industrial Durability: Designed with an IP65f-rated front face to resist oil, dust, and moisture in factory settings.
• GP-Pro EX Compatible: Programmed using Pro-face's standard HMI development software.

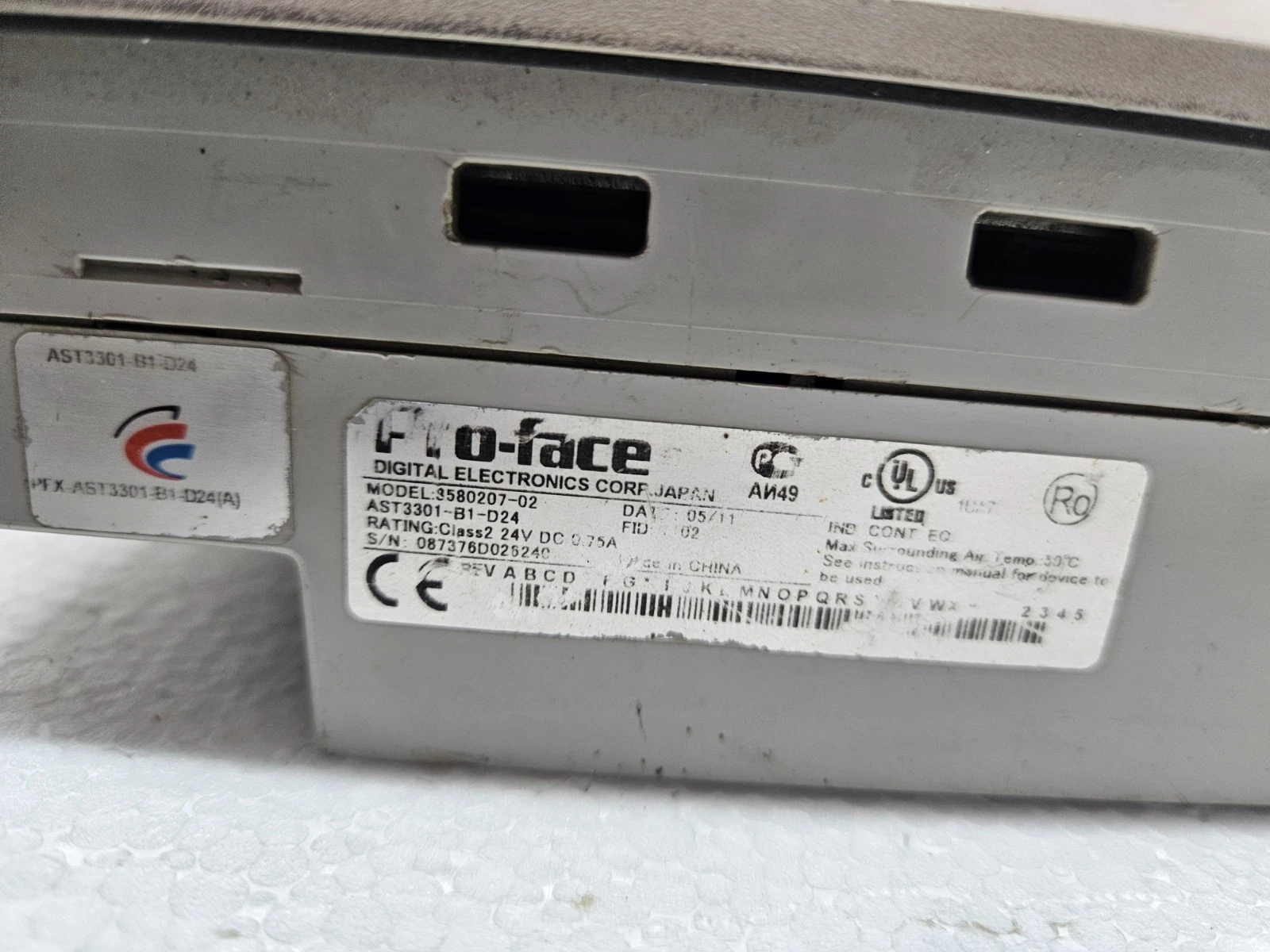

• 24V DC Powered: Operates on standard industrial power, making it compatible with most cabinet power schemes.

Item Condition (For Parts)

• Functional Status: For Parts / Not Working. The unit is sold in its current state for salvage, repair, or educational teardown. It may have a non-responsive touch screen, failed backlight, or corrupted internal logic.

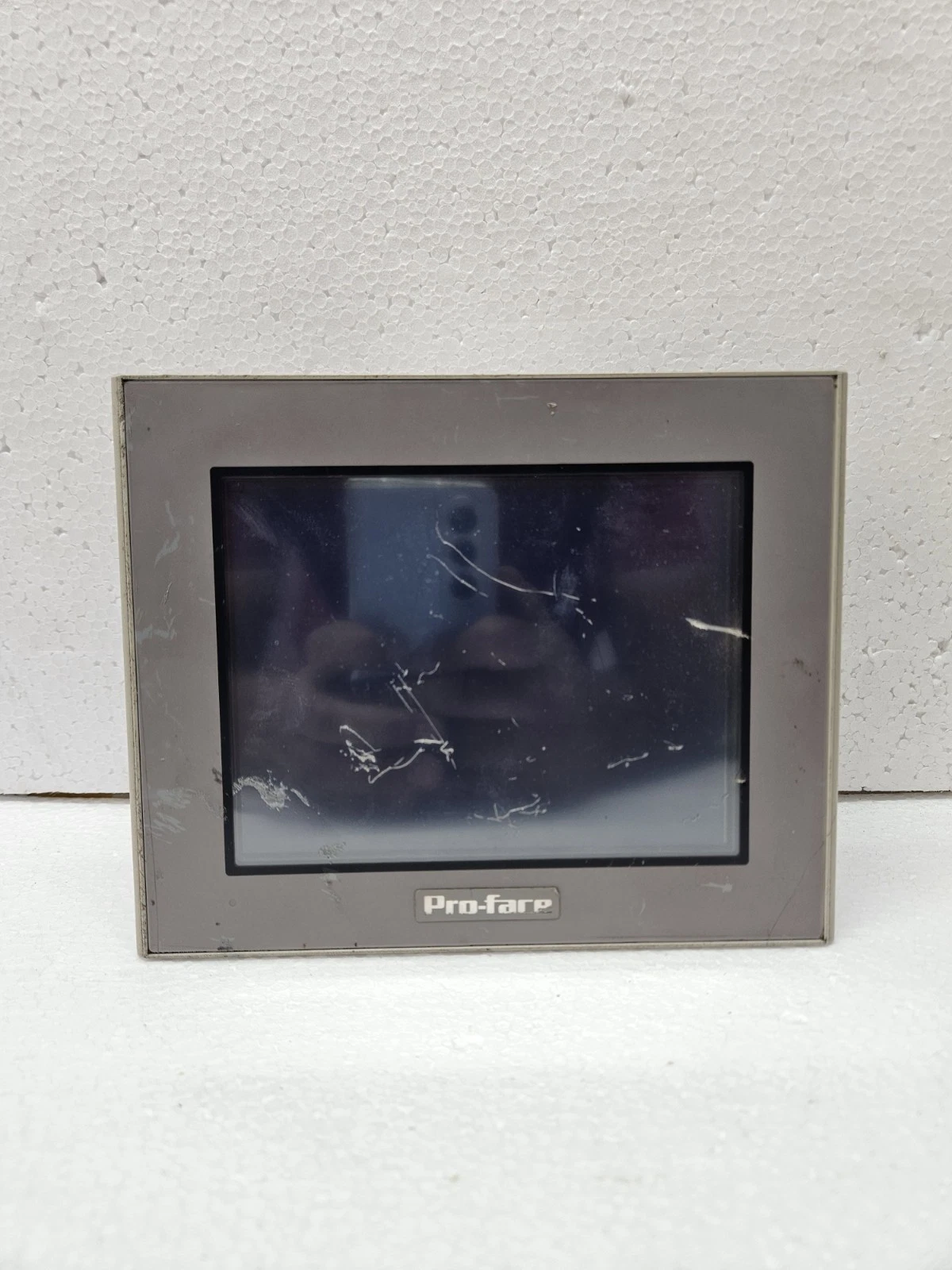

• Physical State: May show signs of industrial wear, including minor scratches on the display surface or residue on the bezel. The rear plastic casing and mounting clips are generally intact but should be checked for cracks.
• Technical Integrity: No internal diagnostics have been performed. All components are included "as-is," and their individual performance is not guaranteed.
• Note: This item is non-returnable. It is intended for professional use as a donor unit for spare parts such as the LCD panel, logic board, or connector ports.

Package Includes

1. 1 x Pro-face AST3301-B1-D24 HMI Terminal (Non-Functional / For Parts)
