WAGO 750-1405 Used Working 750 Series Modules

Product Overview

The Wago 750-1405 is a high-density digital input module belonging to the universally acclaimed WAGO-I/O-SYSTEM 750. This module features 16 channels in a compact 12mm housing, making it an essential component for distributed control systems where cabinet space is limited. It is designed to receive binary control signals from field devices (sensors, switches, etc.) and transmit them to the buscoupler. As a Used - Working unit, it provides a cost-effective way to expand your modular I/O node while maintaining the high industrial reliability Wago is known for.

Key Features

• 16-Channel High Density: Packs 16 digital inputs into a single "slice," significantly reducing the overall width of the I/O node.
• CAGE CLAMP® Connection: Utilizes Wago’s patented spring-pressure connection technology for fast, vibration-proof, and maintenance-free wiring.
• Status Indicators: Equipped with 16 green LEDs to provide immediate visual confirmation of the signal state for every input channel.
• Optocoupler Isolation: Features 500V system/field isolation to protect sensitive internal electronics from field-side electrical interference.
• Bus-Powered: Draws power directly from the internal system bus and field side power jumper contacts for a clean, integrated installation.

Item Condition (Used/Working)

• Functional Status: This module has been professionally removed from a functional PLC rack. It has been bench-tested to ensure all 16 input points and their corresponding LEDs are fully operational.
• Physical State: Shows standard industrial use, including minor scuffs on the plastic housing. The lateral data contacts (gold-plated) and the power jumper contacts are clean and in excellent condition.

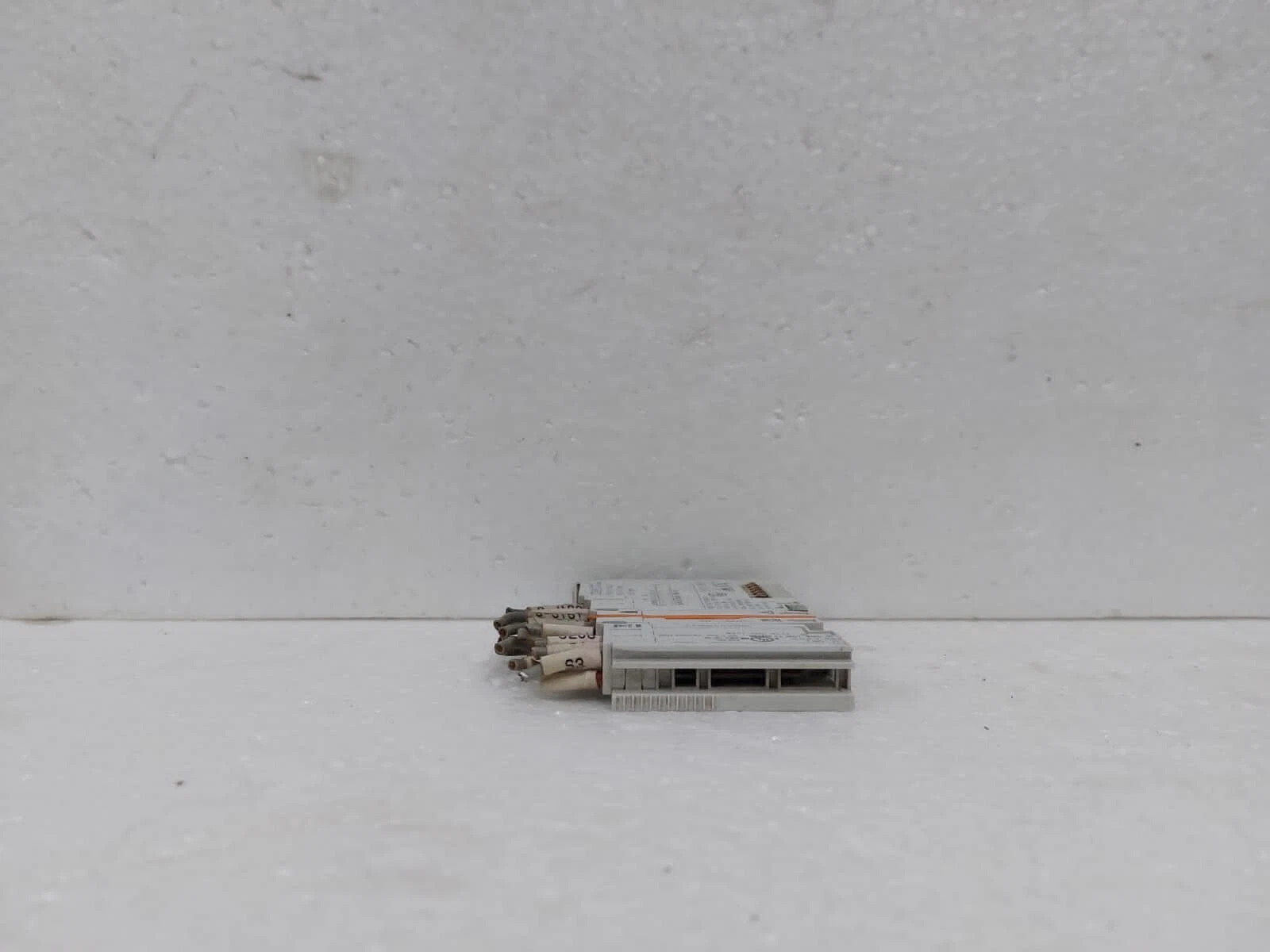

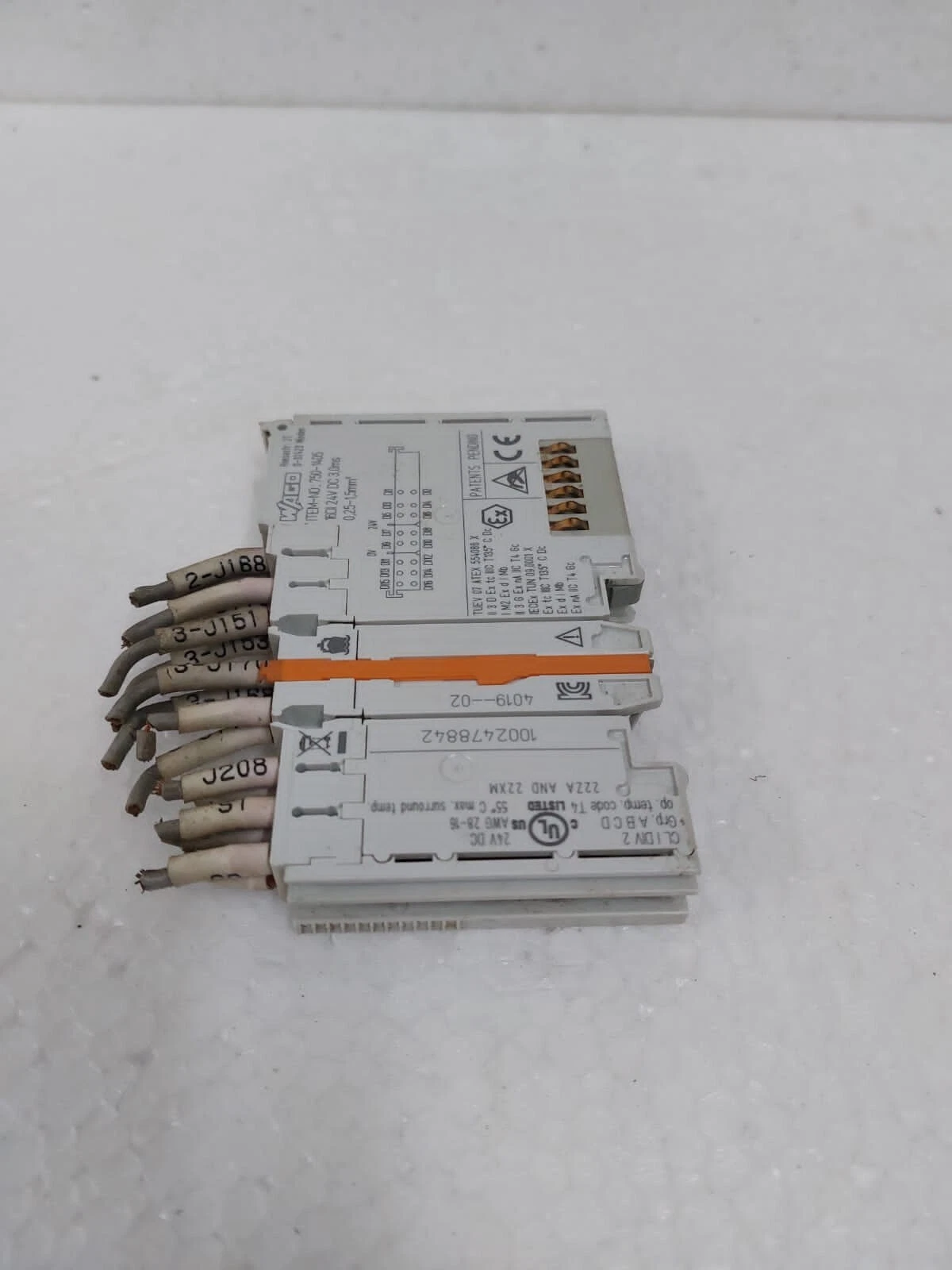

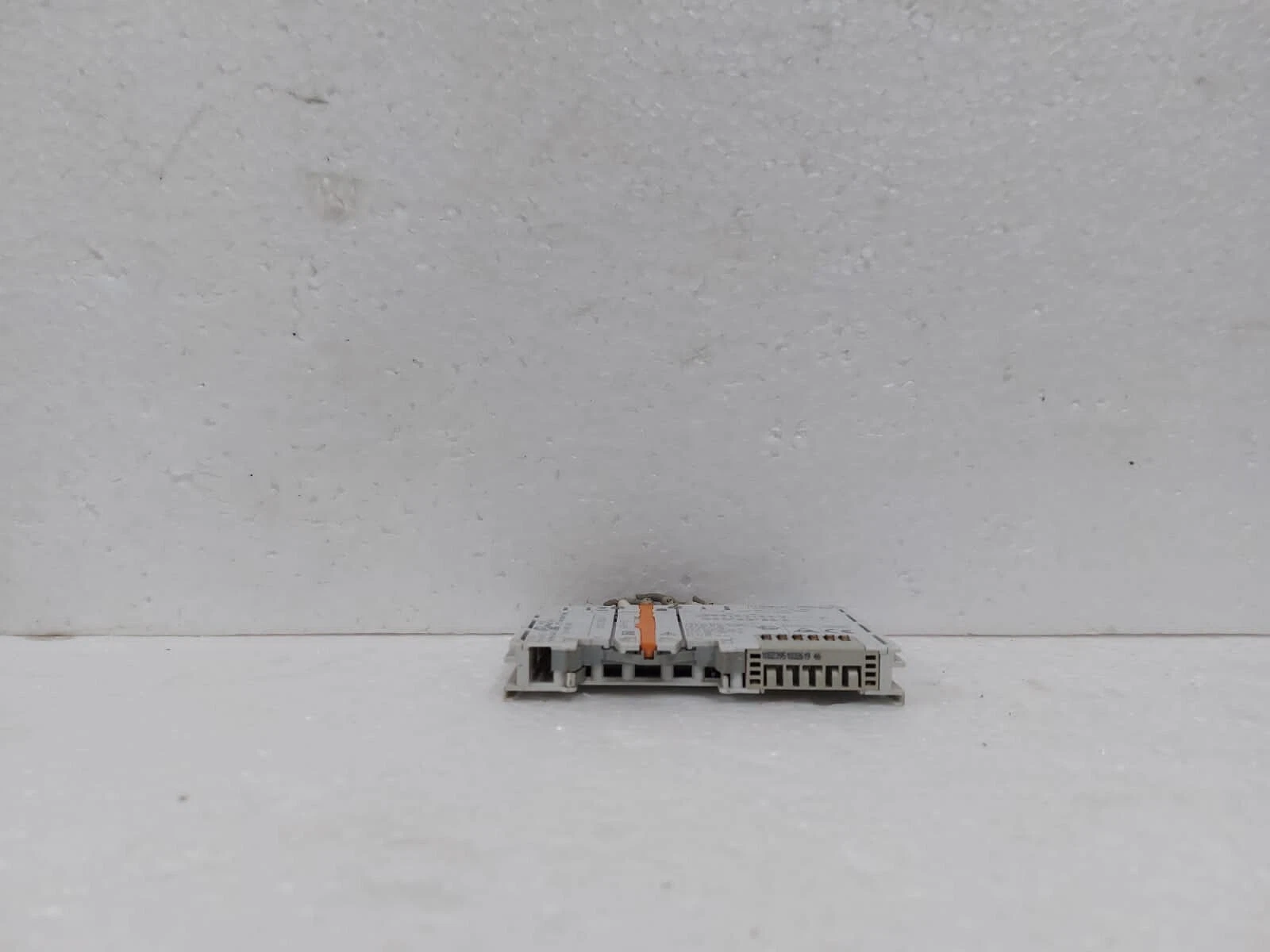

• Visual Reference: Please refer to the high-resolution images to verify the specific hardware revision; the unit pictured is the actual Wago module you will receive.
• Note: This module requires a 750 Series Buscoupler (e.g., 750-333 or 750-881) and an end module to function within a node.

Package Includes

1. 1 x Wago 750-1405 16-Channel Digital Input Module
2. Note: Includes only the module as shown. Buscouplers, end modules, and DIN rails are not included.
